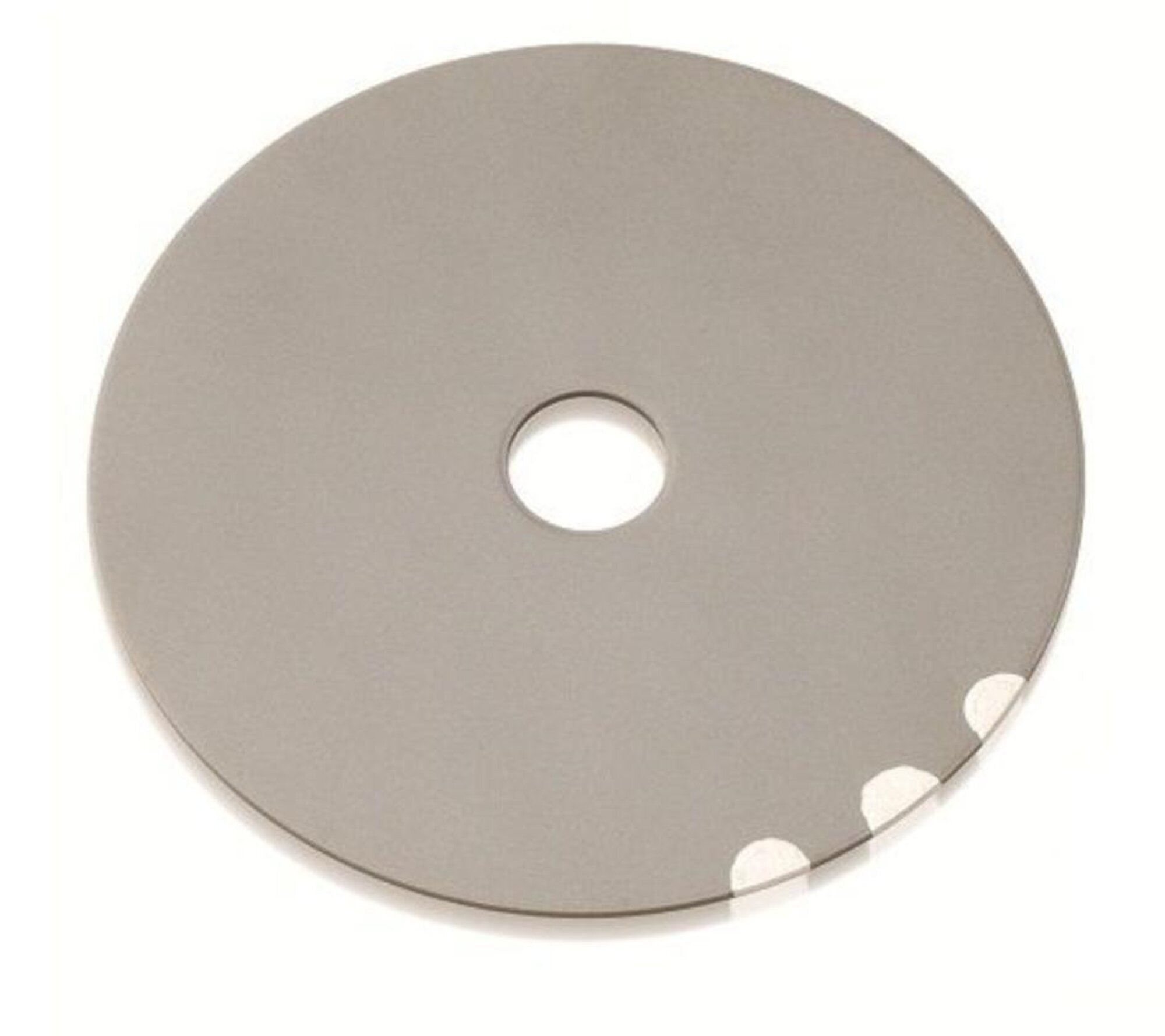

PD410 Round PICMA® Multilayer Bender Actuators

All-Ceramic Bending Actuators with High Displacement

PI PD410
Displacement to 500 µm
Fast response in the ms range
Nanometer resolution
Low operating voltage

PICMA® multilayer bender elements with high reliability

Operating voltage 0 to 60 V. Bidirectional displacement, bimorph design. Ceramic insulation, polymer-free. UHV-compatible to 10-9 hPa, no outgassing, high bakeout temperature. Reliable even under extreme conditions





Fields of application

Industry and research, vacuum. For medical technology, laser technology, sensor systems, automation tasks, pneumatic valves


Displacement

Dimensions OD × ID × TH

Blocking force

Electrical capacitance

Resonant frequency


μm


N

μF

Hz

PD410.10

±240

44 mm × 7 mm × 0.65 mm

±16

2 × 10.5

1000

Displacement: Tolerance ±20 %.

Blocking force: Tolerance ±20 %.

Electrical capacitance: Tolerance ±20 %, measured at 1 Vpp, 1 kHz, RT.Resonant frequency at 1 Vpp, restraint with rotatable mounting on the outer circumference, tolerance ±20 %.

Piezo ceramic type: PIC252.

Standard connections: Solderable contacts (PD410.10) or PTFE-insulated wire leads, 100 mm, AWG 32, Ø 0.49 mm (PD410.11).

Operating voltage: 0 to 60 (±30) V.

Operating temperature range: -20 to 150 °C.

Recommended mounting: Epoxy resin adhesive.

All parameters depend on actual clamping conditions and applied load.

Custom designs or different specifications on request.

Drawings / Images

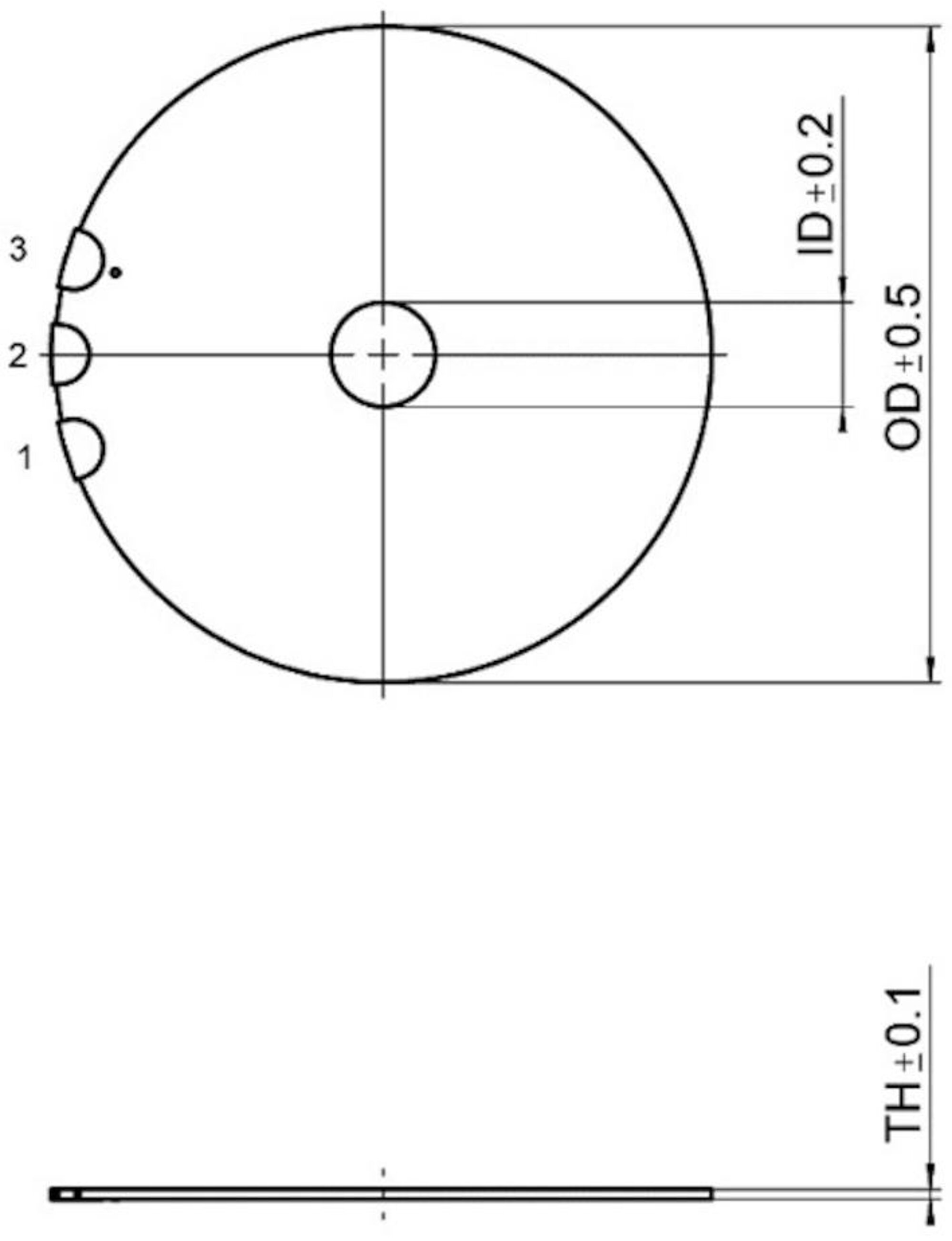

PD410 round PICMA® Bender Piezo Actuator, dimensions in mm. ID, OD, TH see data table.
