E-651 • E-614 Piezo Amplifier / Servo Controller

For Closed-Loop Multilayer Bending Actuators

  • For closed-loop multilayer piezo bending actuators
  • Benchtop and OEM board versions
  • One- and two-channel versions
  • Position control for strain gauge sensors
  • Overheat protection
E-651 • E-614 Piezo Amplifier / Servo Controller
Product Description Specifications Downloads Quote / Order

Piezo amplifier / servo controller for P-871 multilayer bending actuators

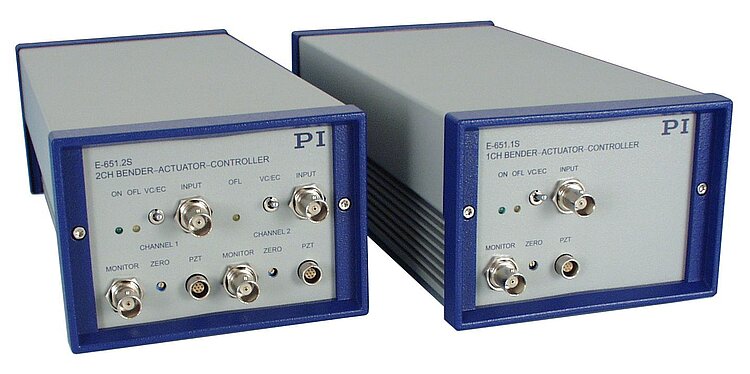

The E-651 is a benchtop device, especially designed for P-871 multilayer bending actuators equipped with strain gauge sensors. One- and two-channel versions are available. The compact E-614.2BS OEM board provides the same functionality as the 2-channel model.

Closed-loop and open-loop piezo positioning

The control signal specifies the piezo position in the servo loop. The servo controller is set so that maximum displacement is achieved at an input control voltage of +/- 5 V. The E-651 can also be operated as a pure voltage amplifier. The analog input signal in a range of -5 to +5 V then controls the output voltage ranging up to 60 V.
