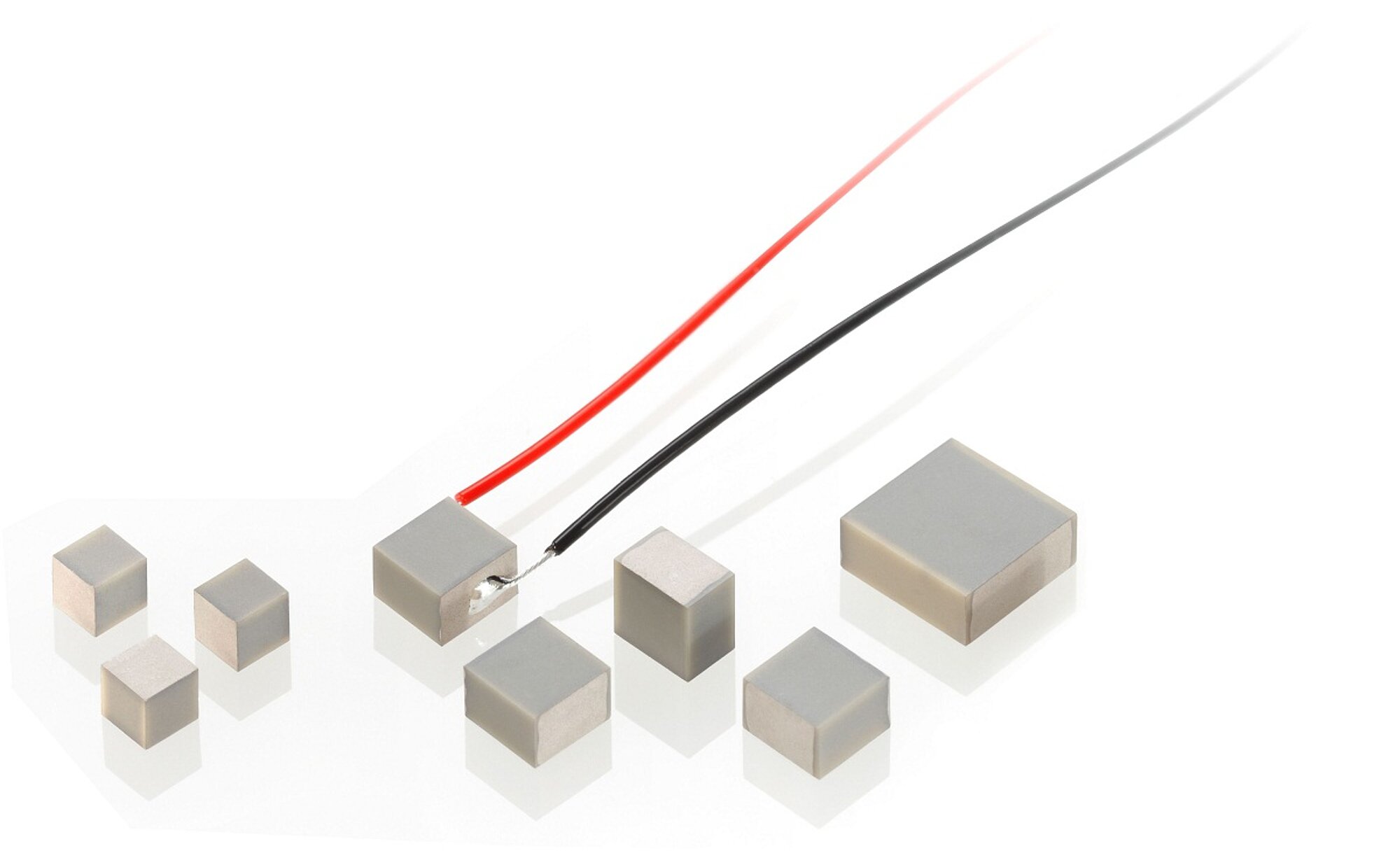

PL0xx PICMA® Chip Actuators

Miniature Multilayer Piezo Actuators

Superior lifetime
Ultra-compact: From 2 mm × 2 mm × 2 mm
Ideal for dynamic operation
Microsecond response
Subnanometer resolution

Piezo linear actuator with PICMA® multilayer technology

Operating voltage -20 to 100 V. Ceramic insulation, polymer-free. Humidity resistance. UHV-compatible to 10-9 hPa, no outgassing, high bakeout temperature. Flexible thanks to numerous designs. Versions with rectangular, round or annular cross section





Possible modifications

PTFE-insulated wire leads. Various geometric shapes, inner hole. Precision-ground ceramic end plates



Fields of application

Industry and research. For laser tuning, microdispensing, life sciences

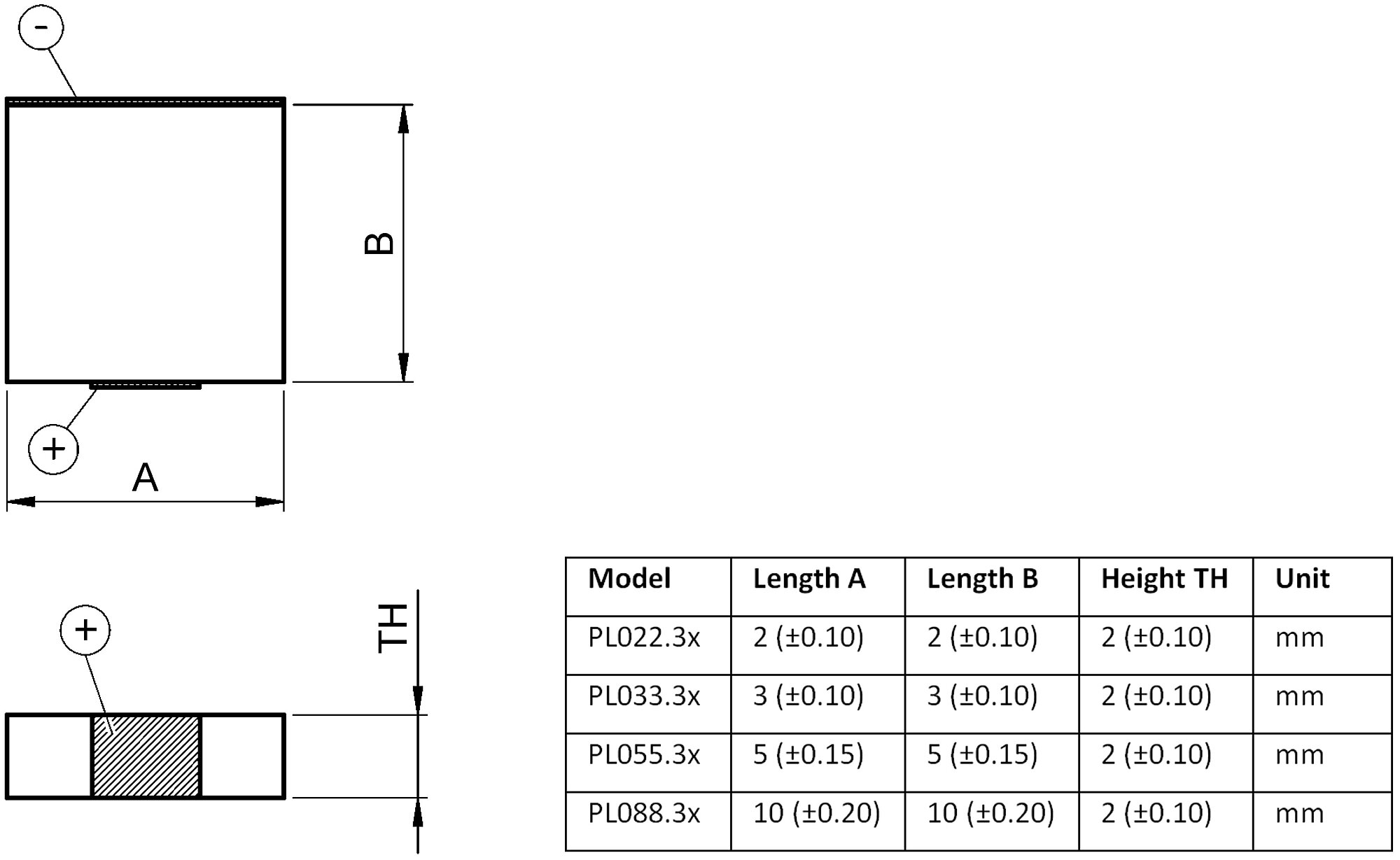

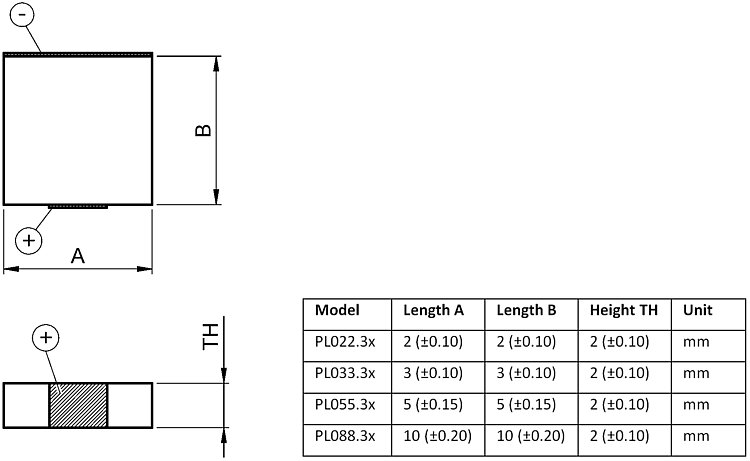

Dimensions A × B × TH

Displacement

Blocking force

Capacitance

Resonant frequency


µm

N

nF

kHz

PL022.30

2 mm × 2 mm × 2 mm

2.2

>120

25

>600

PL033.30

3 mm × 3 mm × 2 mm

2.2

>300

85

>600

PL055.30

5 mm × 5 mm × 2 mm

2.2

>500

250

>600

PL088.30

10 mm × 10 mm × 2 mm

2.2

>2000

1100

>600

Travel range: at 0 to 100 V, tolerance ±20 %. The values refer to the free component and can be lower when glued on.

Blocking force: at 0 to 100 V.

Electrical capacitance: Tolerance ±20 %, measured at 1 Vpp, 1 kHz, RT.Axial resonant frequency: measured at 1 Vpp, unloaded, unclamped. The value is halved for unilateral clamping. Lateral resonant frequencies can be lower than the axial ones, depending on the installation situation.

Piezo ceramic type: PIC252.

Standard connections: Solderable contacts. For optional PTFE-insulated wire leads, 100 mm, AWG 32, Ø 0.49 mm, change order number extension to 1 (e.g. PL022.31).

Operating voltage: -20 to 100 V.

Operating temperature range: -40 to 150 °C.

Recommended preload for dynamic operation: 15 MPa.

Maximum preload for constant force: 30 MPa.

Ask about custom designs!

Drawings / Images

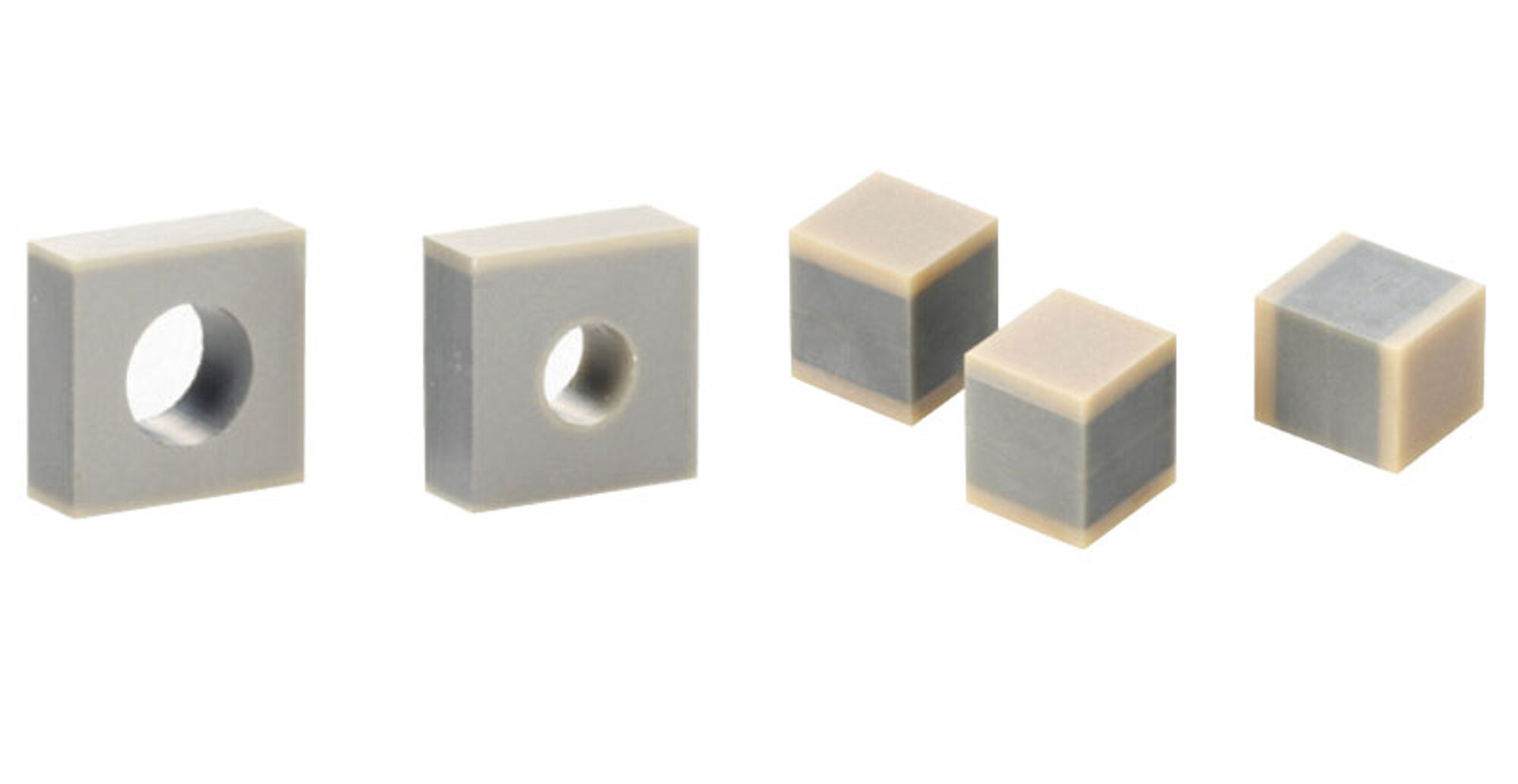

PI PL0xx PD0xx Inner Hole
