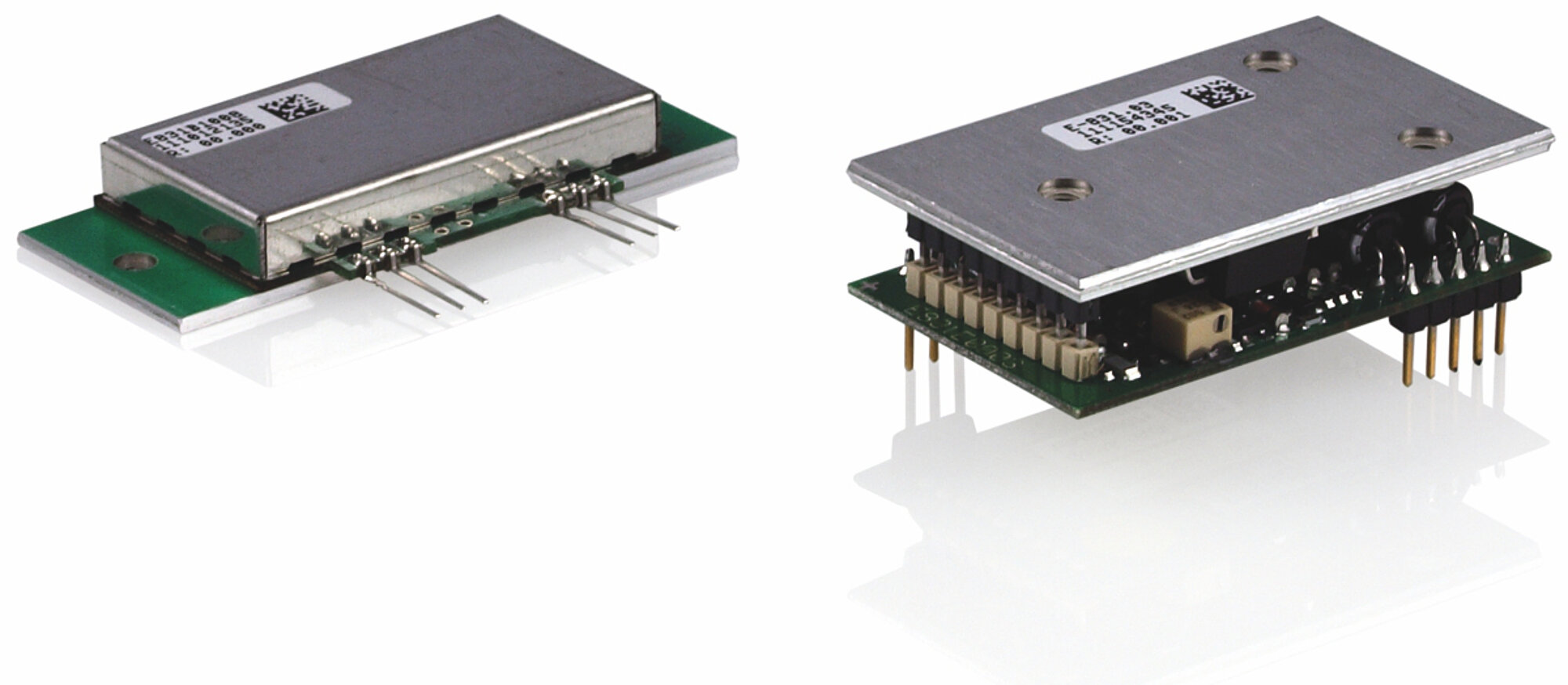

Single channel piezo amplifier module
Compact OEM module. Various models for different dynamic requirements. Power supply using external power adapter, also customer's own
Low-noise power amplifier. Gain value 10. Output voltage range -30 to 130 V, depending on the power adapter used. Monitor output 1 : 100. Overtemperature protection. Solder pins for PCB mounting
Optional power adapter modules
E-841 and E-842 power adapter modules with varied performance ranges. Suitable for supplying up to three E-831 piezo amplifiers. Custom power adapters on request
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.E-831.03Piezo amplifier, OEM module, 1 channel, -30 to 130 V
