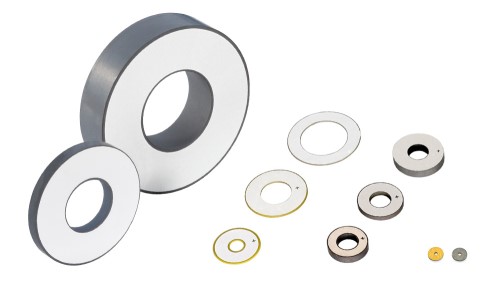

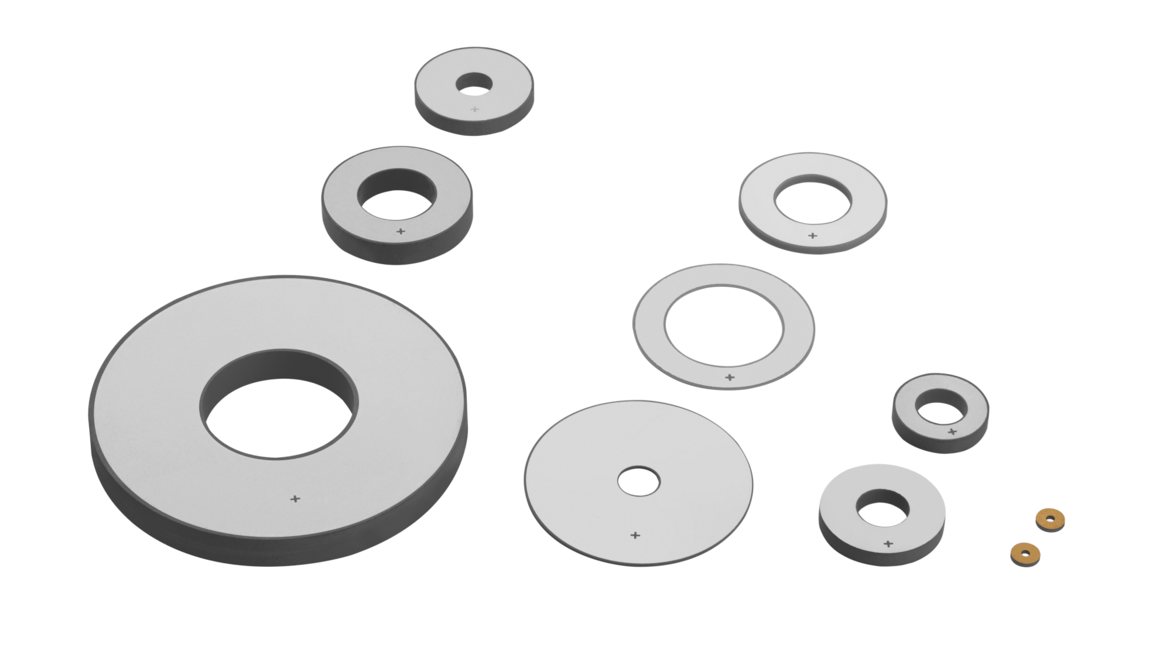

Rings

Standard Products

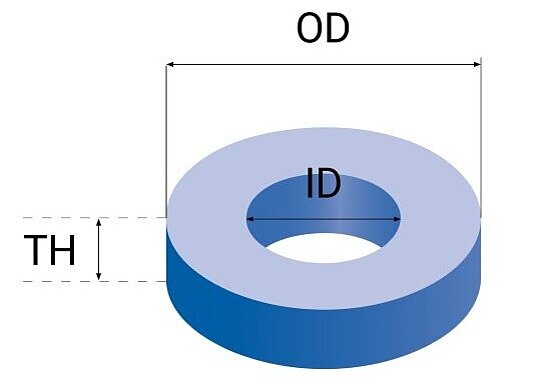

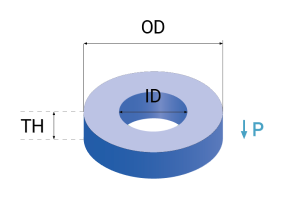

OD   Outer diameter
ID     Inner diameter
TH    Thickness
P      Polarization direction

Outer Diameter OD
2 to 80 mm
Inner Diameter ID
0.8 to 74 mm
Thickness TH
0.15 to 30 mm

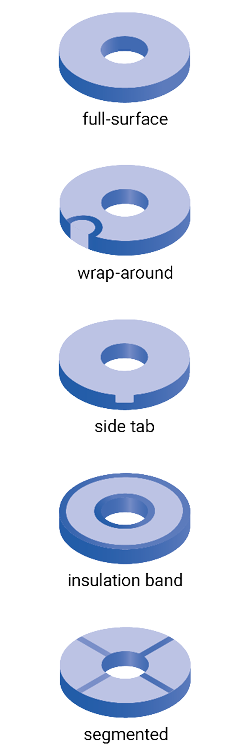

Electrodes
Silver (thick film) or PVD thin film (CuNi, Au, etc.)

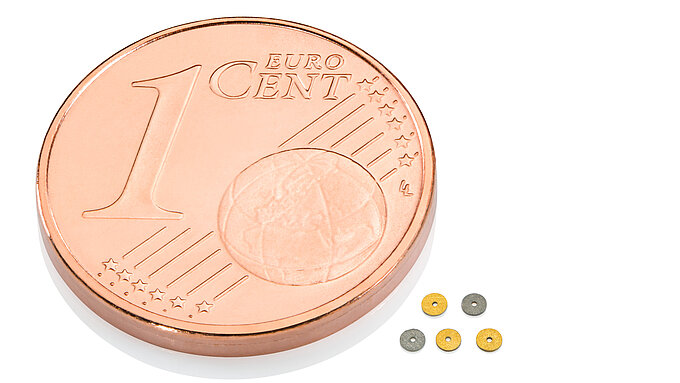

Miniaturized Piezo Ceramics - Rings
