P-882 – P-888 PICMA® Stack Multilayer Piezo Actuators

Ceramic-Insulated High-Power Actuators

Superior lifetime
High stiffness
Microsecond response
Subnanometer resolution
UHV-compatible to 10-9 hPa

Patented PICMA® Stack multilayer piezo actuators with high reliability

Operating voltage -20 to 120 V. Ceramic insulation, polymer-free. Humidity resistance. Excellent temperature stability. UHV-compatible to 10-9 hPa, no outgassing, high bakeout temperature. Ideal for dynamic operation.

Large choice of designs. Encapsulated versions for operation in splash water or oil





Custom designs with modified specifications

  • For high operating temperature up to 200 °C
  • Special electrodes for currents of up to 20 A
  • Variable geometry: Inner hole, round, rectangular
  • Ceramic or metal end pieces in many versions
  • Applied SGS sensors for positional stability



Fields of application

Science and industry. Cryogenic environment with reduced displacement. For high-speed switching, precision positioning, active and adaptive systems


Dimensions A × B × L

Nominal travel range

Max. displacement

Blocking force

Stiffness

Electrical capacitance

Resonant frequency


µm

µm

N

N/µm

µF

kHz

P-882.11

3 mm × 2 mm × 9 mm

6.5

8

190

24

0.15

135

P-882.31

3 mm × 2 mm × 13.5 mm

11

13

210

16

0.22

90

P-882.51

3 mm × 2 mm × 18 mm

15*

18*

210

12

0.31

70

P-883.11

3 mm × 3 mm × 9 mm

6.5

8

290

36

0.21

135

P-883.31

3 mm × 3 mm × 13.5 mm

11

13

310

24

0.35

90

P-883.51

3 mm × 3 mm × 18 mm

15*

18*

310

18

0.48

70

P-885.11

5 mm × 5 mm × 9 mm

6.5

8

800

100

0.6

135

P-885.31

5 mm × 5 mm × 13.5 mm

11

13

870

67

1.1

90

P-885.51

5 mm × 5 mm × 18 mm

15*

18*

900

50

1.5

70

P-885.91

5 mm × 5 mm × 36 mm

32*

38*

950

25

3.1

40

P-887.31

7 mm × 7 mm × 13.5 mm

11

13

1700

130

2.2

90

P-887.51

7 mm × 7 mm × 18 mm

15*

18*

1750

100

3.1

70

P-887.91

7 mm × 7 mm × 36 mm

32*

38*

1850

50

6.4

40

P-888.31

10 mm × 10 mm × 13.5 mm

11

13

3500

267

4.3

90

P-888.51

10 mm × 10 mm × 18 mm

15*

18*

3600

200

6.0

70

P-888.91

10 mm × 10 mm × 36 mm

32*

38*

3800

100

13.0

40

Nominal travel range: at 0 to 100 V, tolerance ±20 %, * ±10 %.

Maximum travel range: at 0 to 120 V, tolerance ±20 %, * ±10 %.

Blocking force: at 0 to 120 V.

Electrical capacitance: Tolerance ±20 %, measured at 1 Vpp, 1 kHz, RT.Resonant frequency at 1 Vpp, unloaded, unclamped. The value is halved for unilateral clamping, tolerance ±20 %.

Piezo ceramic type: PIC252.

Standard connections: PTFE-insulated wire leads, 100 mm; P-882, P-883: AWG 32 (Ø 0.49 mm); P-885, P-887, P-888: AWG 30 (Ø 0.61 mm). For optional solderable contacts, change order number extension to .x0 (e. g. P-882.10).

Operating voltage: -20 to 120 V.

Operating temperature range: -40 to 150 °C.

Recommended preload for dynamic operation: 15 MPa.

Maximum preload for constant force: 30 MPa.

Custom designs or different specifications on request.

Drawings / Images

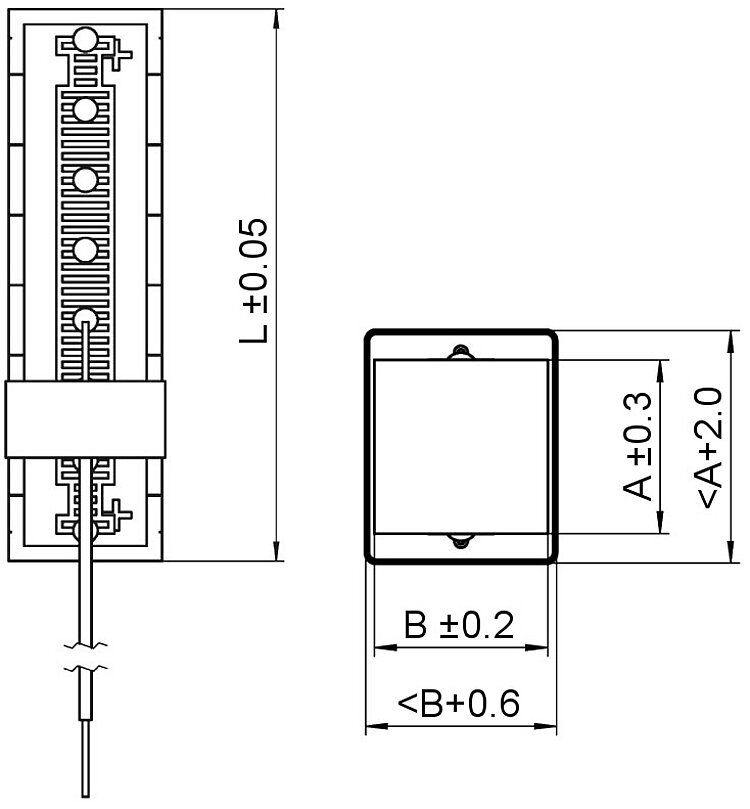

PI P-88x Drawing

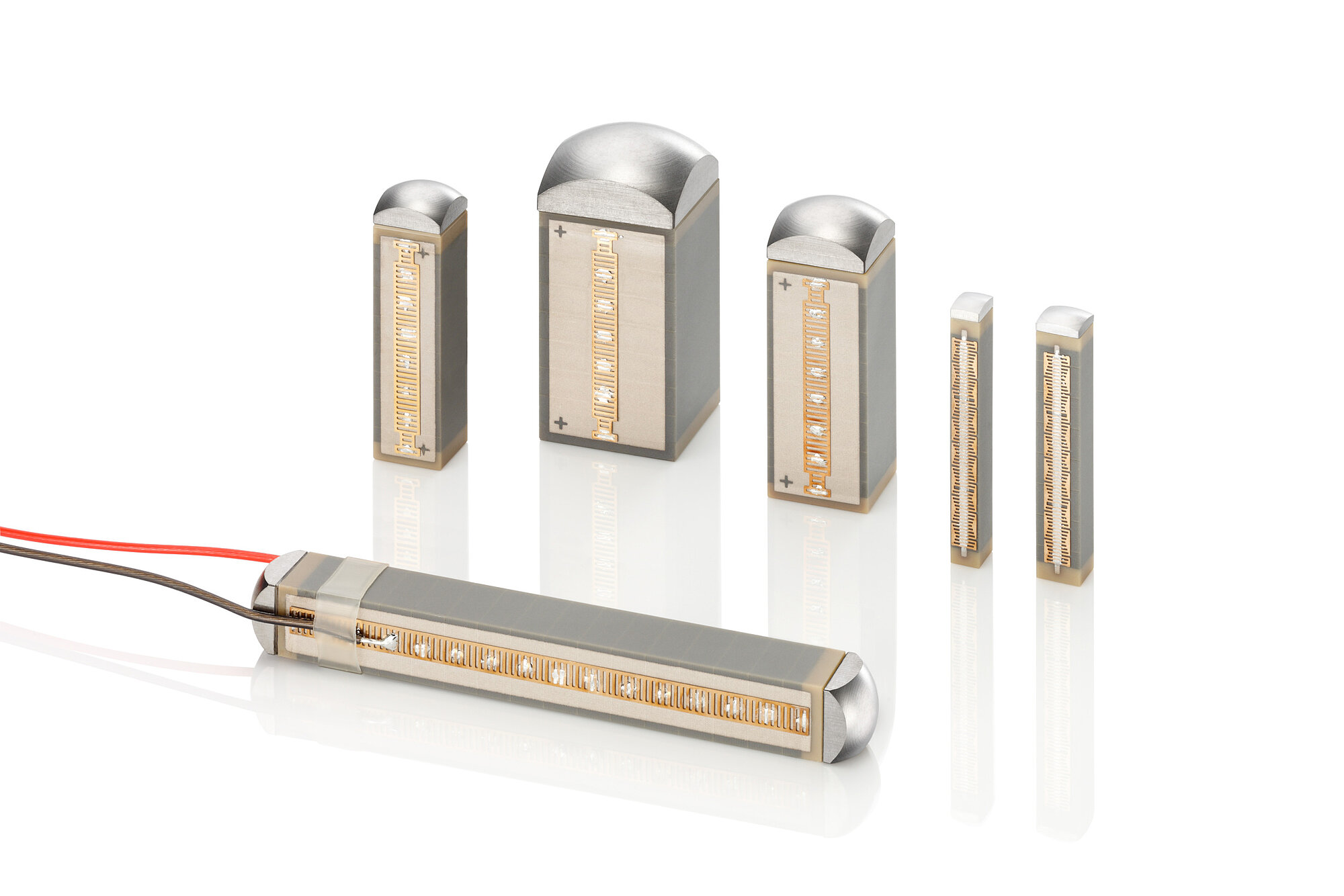

PI P-882 End Pieces

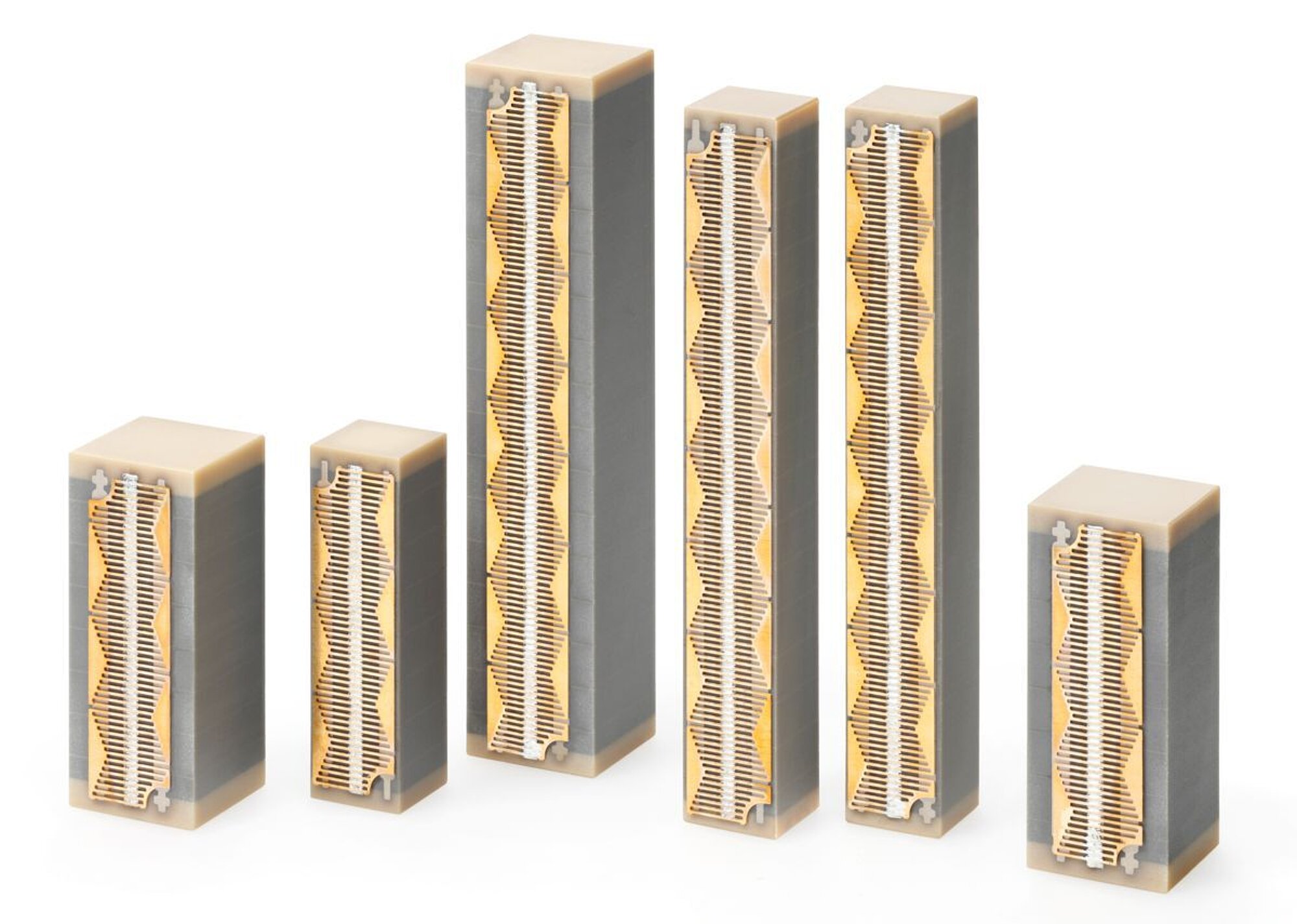

PI P-882 - P-888

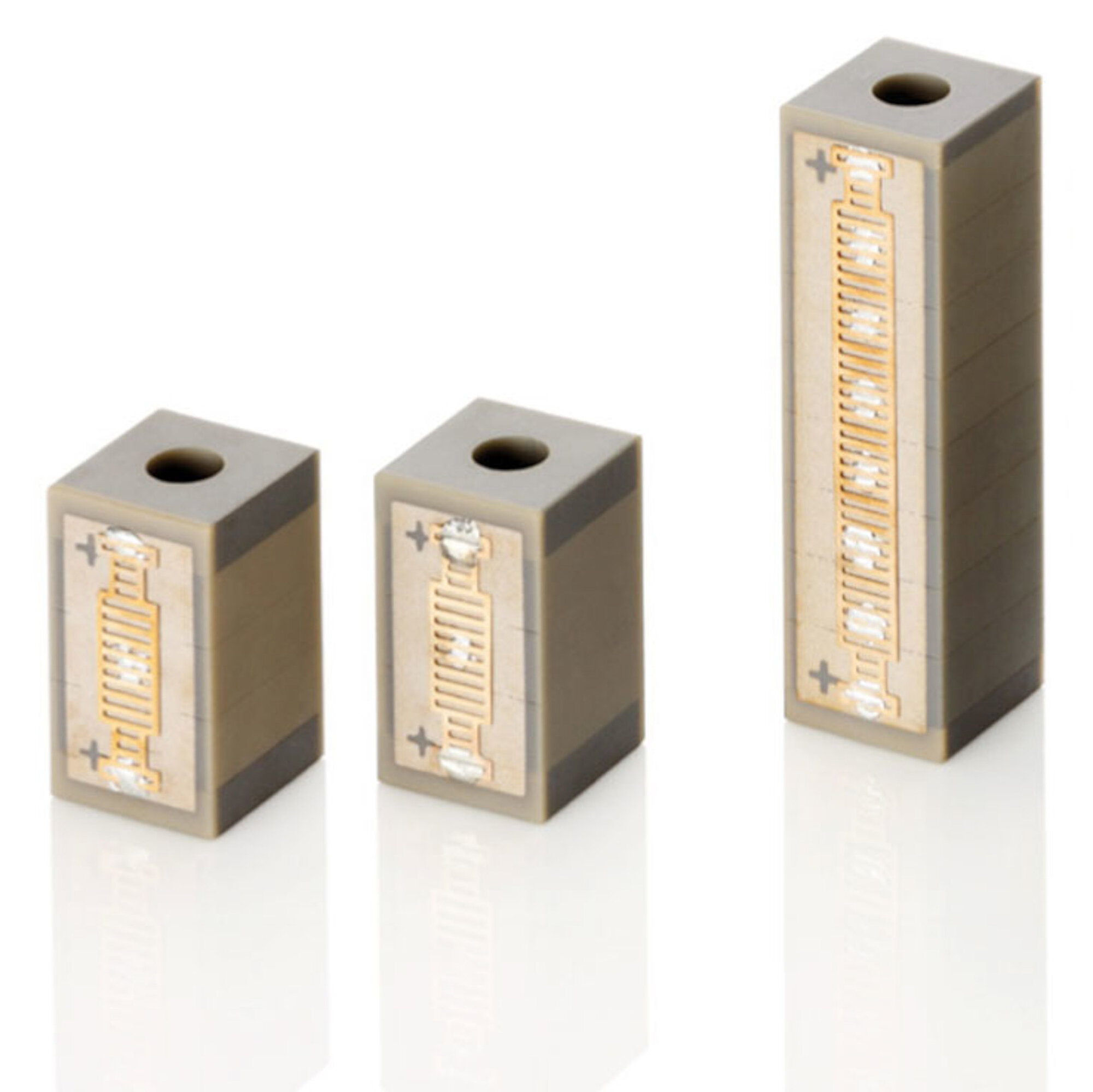

PI P-88x Inner Hole

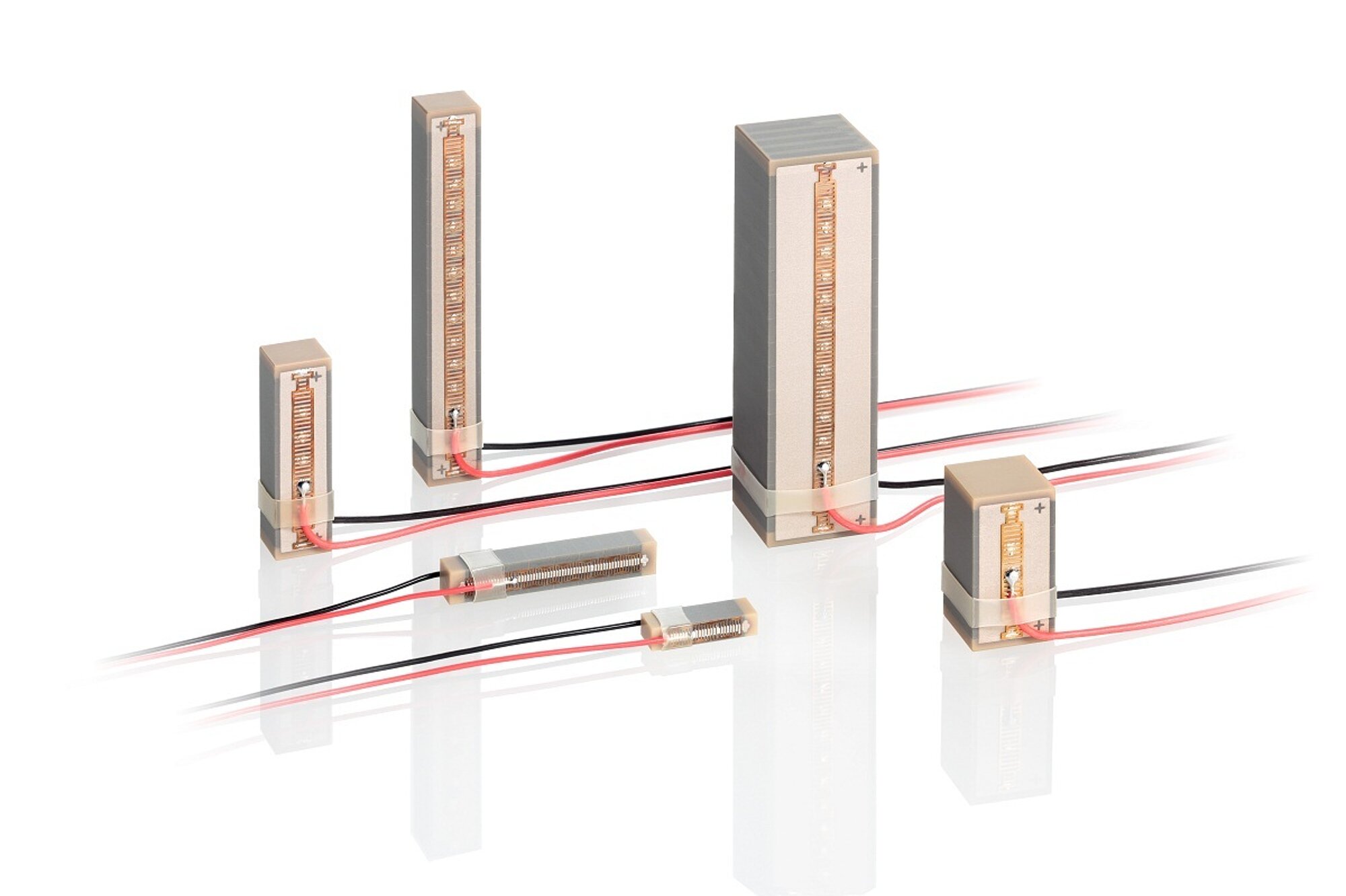

PICMA® Stack actuators, PTFE-insulated wire leads, 100 mm
