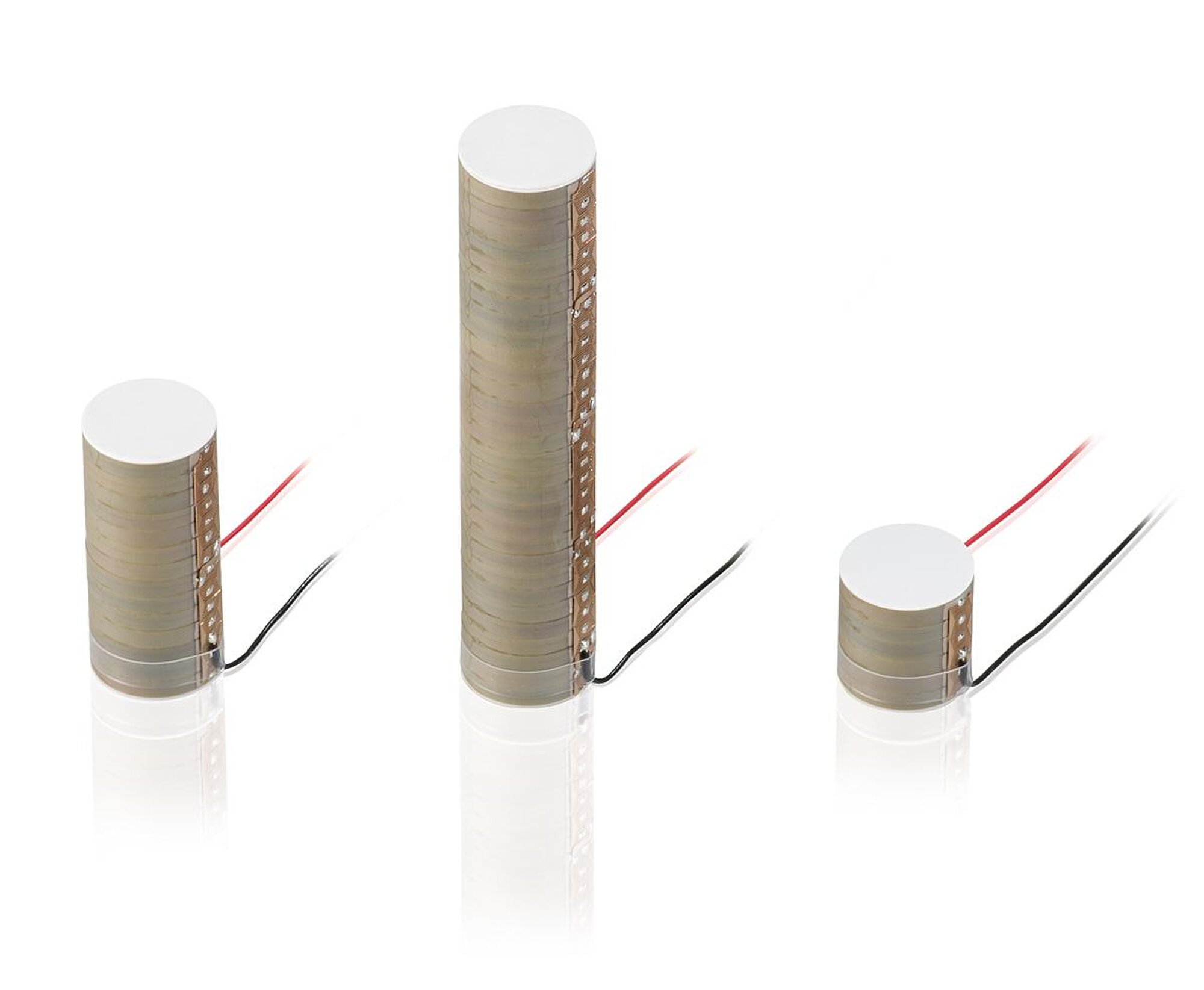

P-088 Round PICMA® Stack Multilayer Piezo Actuator

High Blocking Force

PI P-088
Superior lifetime
Ideal for dynamic operation
Flexible, adaptable overall height
OEM versions available without stranded wires

Multilayer stack actuators



The actuators are easily scaled, thanks to the stacked construction, flexible adaptation of the travel range is possible. The annular cross section ensures easy integration.

Versions with solderable contacts are also UHV-compatible to 10-9 hPa. The actuators do not outgas and can be baked out at high temperatures.



PICMA® piezo linear actuators

Low operating voltage -20 to 100 V. Ceramic insulation. High reliability and long lifetime

Possible modifications

Different heights, easy to mount on customer request. Variety of shapes. Precision-ground end plates for reduced tolerances Spherical end pieces

Fields of application

Industry and research. For laser tuning, microdispensing, life sciences

Specifications

pdf
pdf

PI Datasheet P-088

Round PICMA® Stack Multilayer Piezo Actuator, high blocking force
pdf - 762 KB
pdf - 755 KB

Drawings / Images

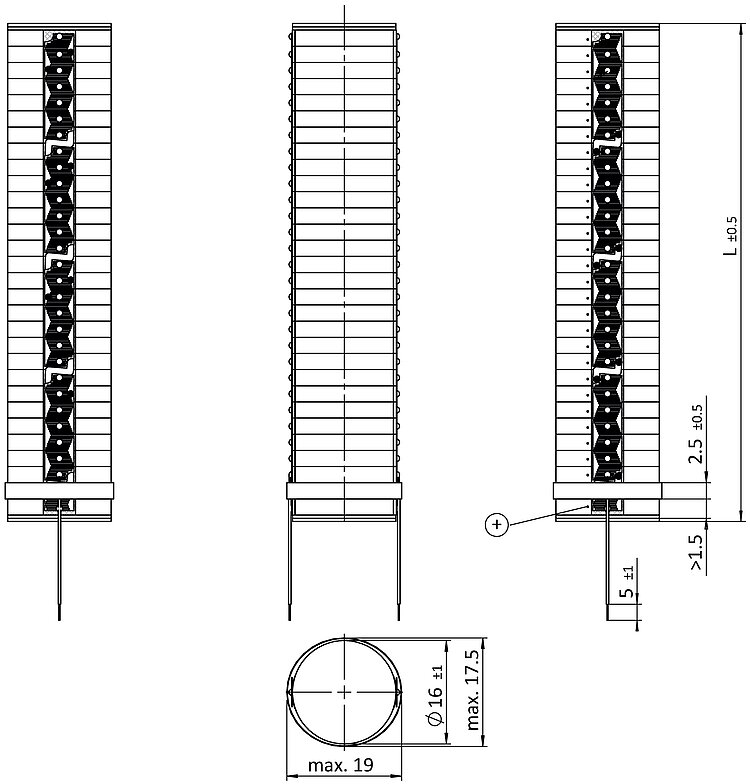

PI P-088 Drawing
