E-836 Compact Piezo Amplifier / OEM Module

Cost-Effective, Low-Noise Piezo Amplifiers for Dynamic Piezo Actuator Operation

OEM module and benchtop device
Peak current up to 100 mA
Easy integration
Power on/off without voltage spikes
24 V operating voltage

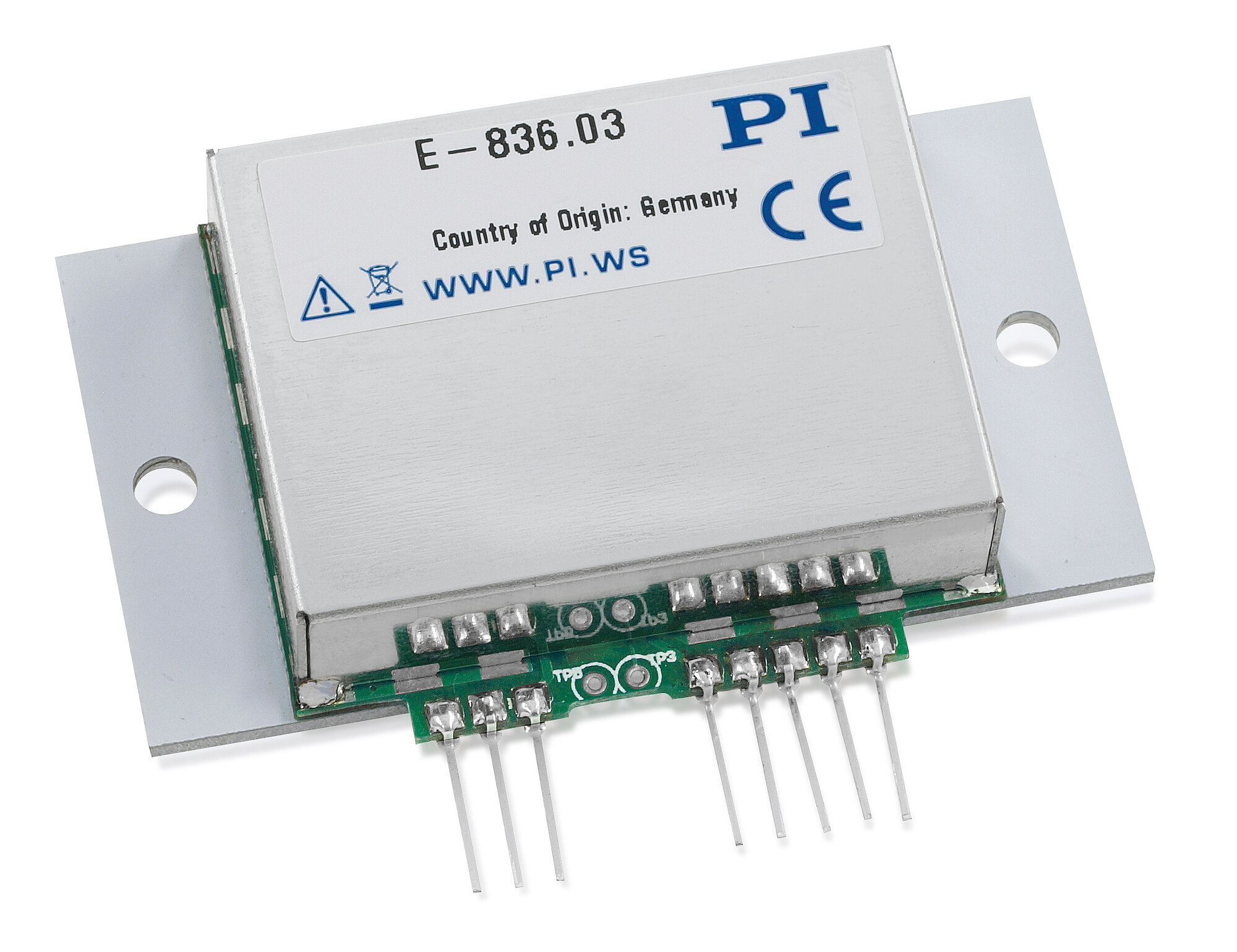

Single-channel piezo amplifier: OEM module or benchtop device

Compact OEM module in shielded metal housing; easy integration with soldering pins for mounting on boards; ideally suited for assembling multi-channel solutions. Benchtop device for laboratory applications and fast startup. 24 V operating voltage, piezo voltage and other supply voltages are generated internally.

Functions

Low-noise power amplifier. Gain value 10. Output voltage range -30 to 130 V. Short-circuit proof, full overcurrent and overtemperature protection.

Fields of application

Inexpensive control of PICMA® Stack or PICMA® Chip piezo actuators in OEM applications.

Specifications

Datasheet E-836

Version / Date
2018-04-06
Version / Date
2018-04-06
Document language
pdf - 579 KB
pdf - 581 KB

Drawings / Images

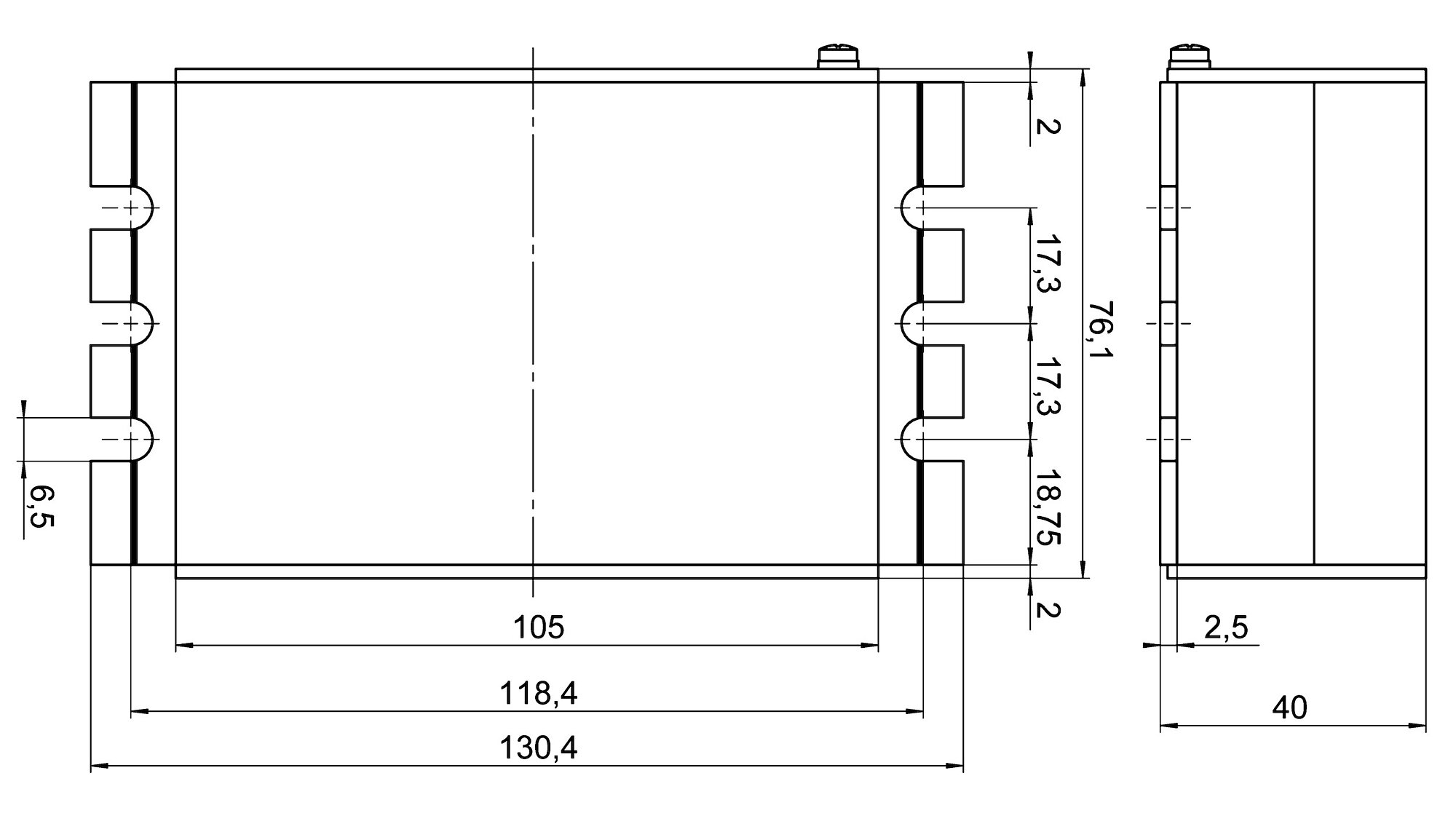

E-836.1G, dimensions in mm

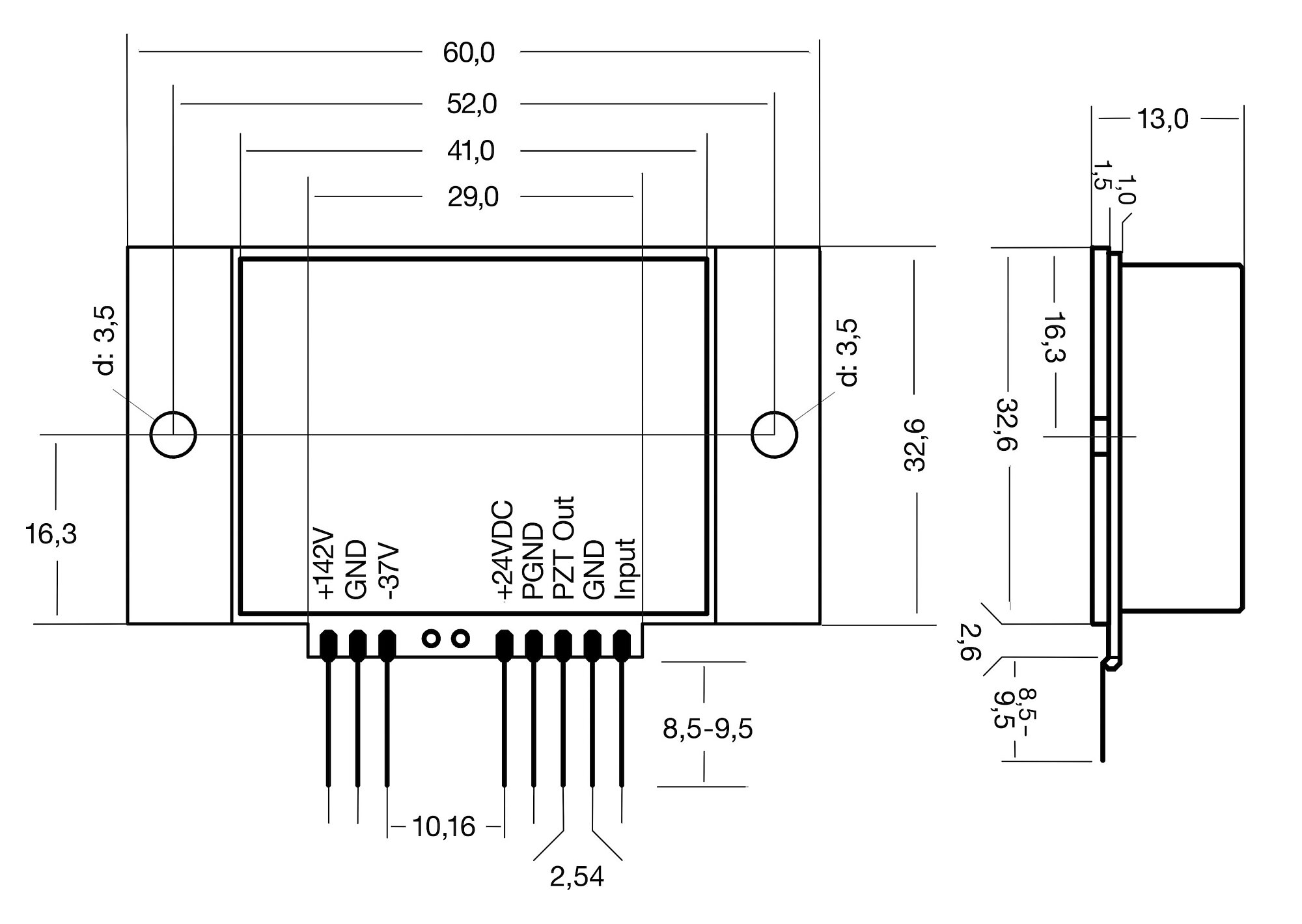

E-836.03, dimensions in mm

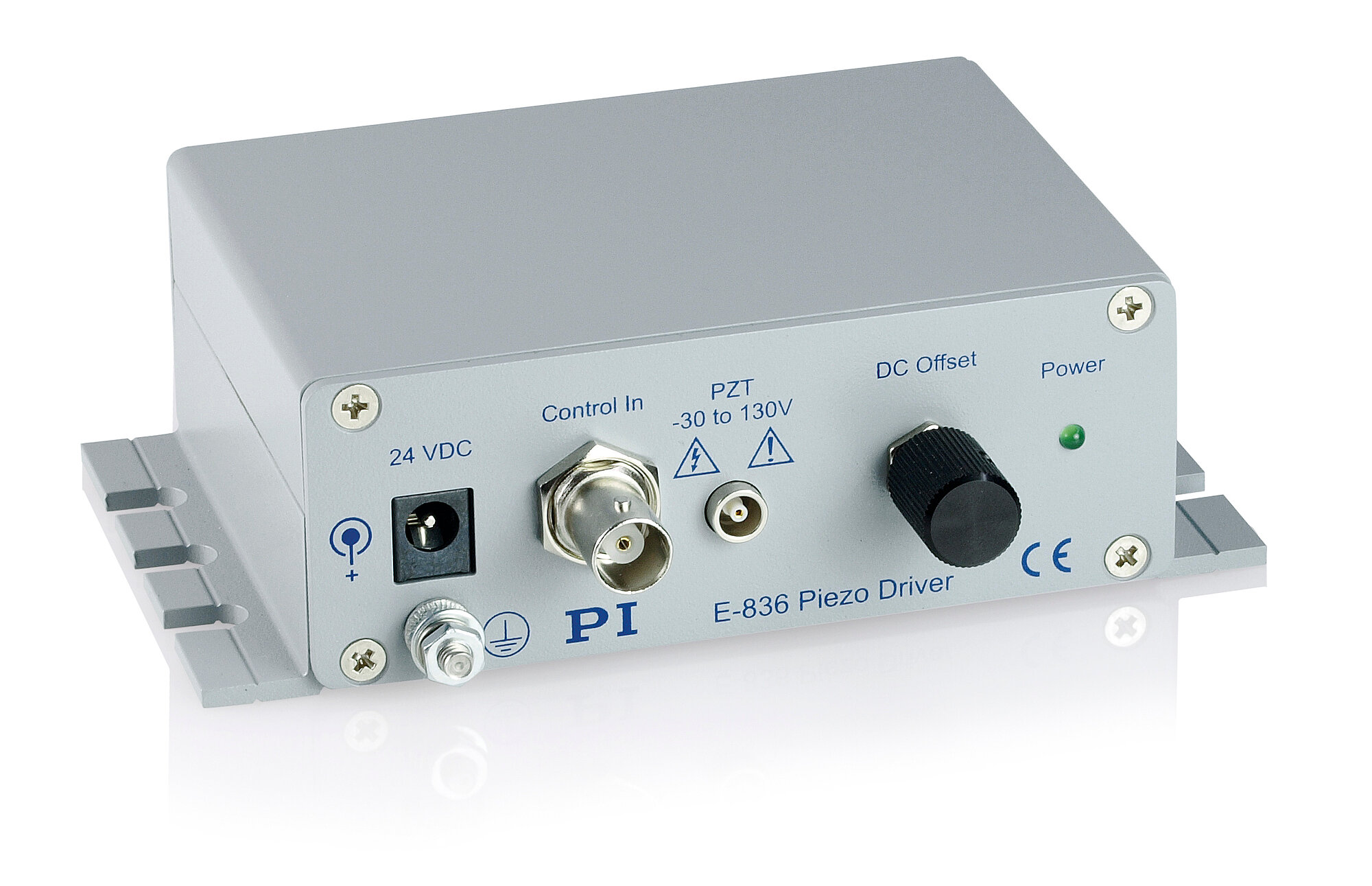

E-836.1G: Benchtop device

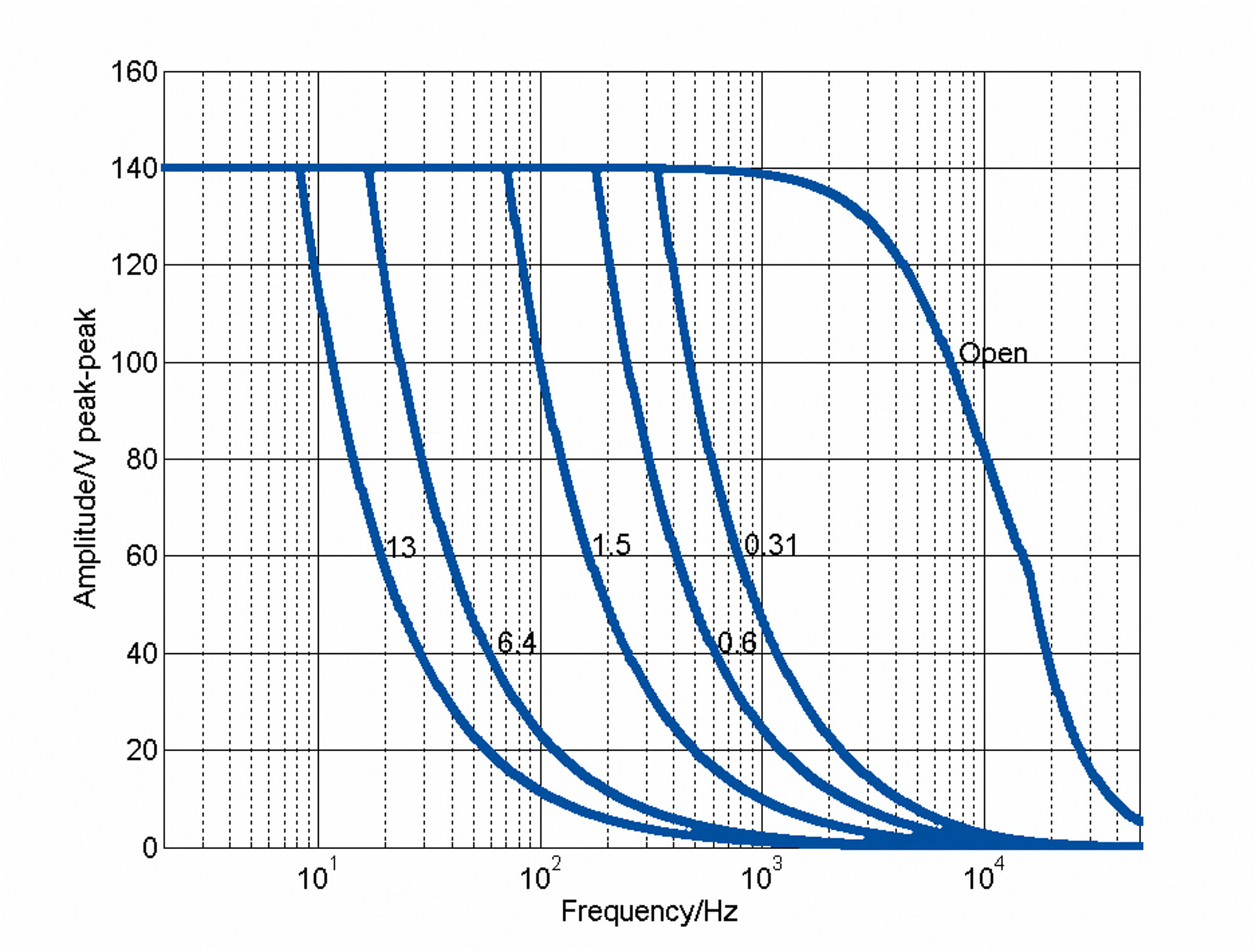

E-836: Operating limits (open loop) with various piezo loads, capacitance values in µF
