- 0Quote list

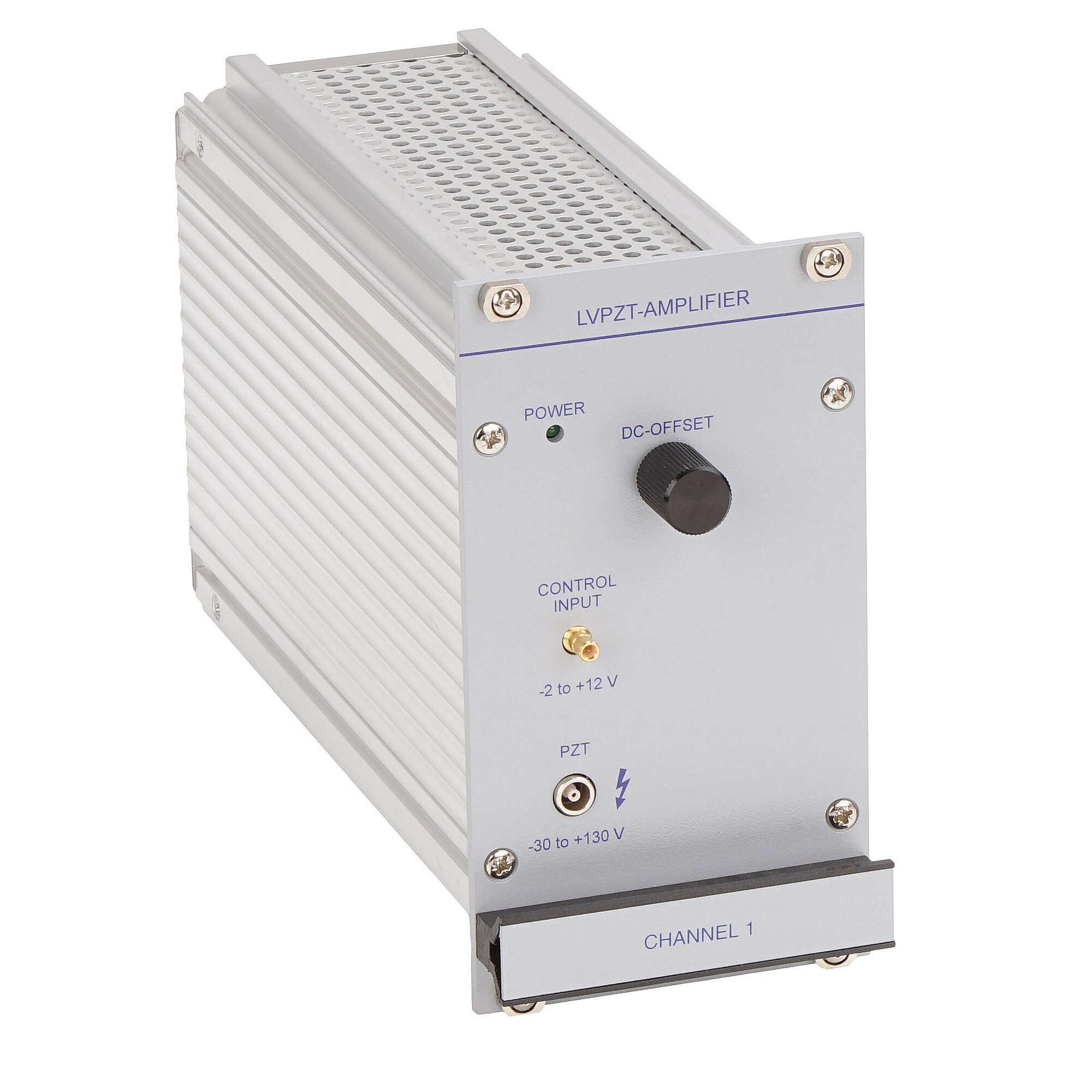

Power amplifier for low voltage piezo actuators
Peak currents to 2000 mA. 280 W peak power, average output power up to 100 W.
Class-D switched amplifier with capacitor for energy recovery. Low influence of the application thanks to reduced heat dissipation.
The working principle of the E-504 series is particularly good for high dynamics scanning and switching applications. The E-505 is recommended for applications that require static position stability in a subnanometer range.
Industry, automation. High dynamics scanning or switching applications.
Short Instruction PZ300Housed Analog Piezo Electronics E-4xx, E-5xx, E-6xx, E-8xx1.1.0 04/20211.1.0 04/2021
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.E-504.00FHigh-power piezo amplifier module, 1 channel, 280 W peak power, 100 W continuous power, -30 to 130 V, energy recovery
