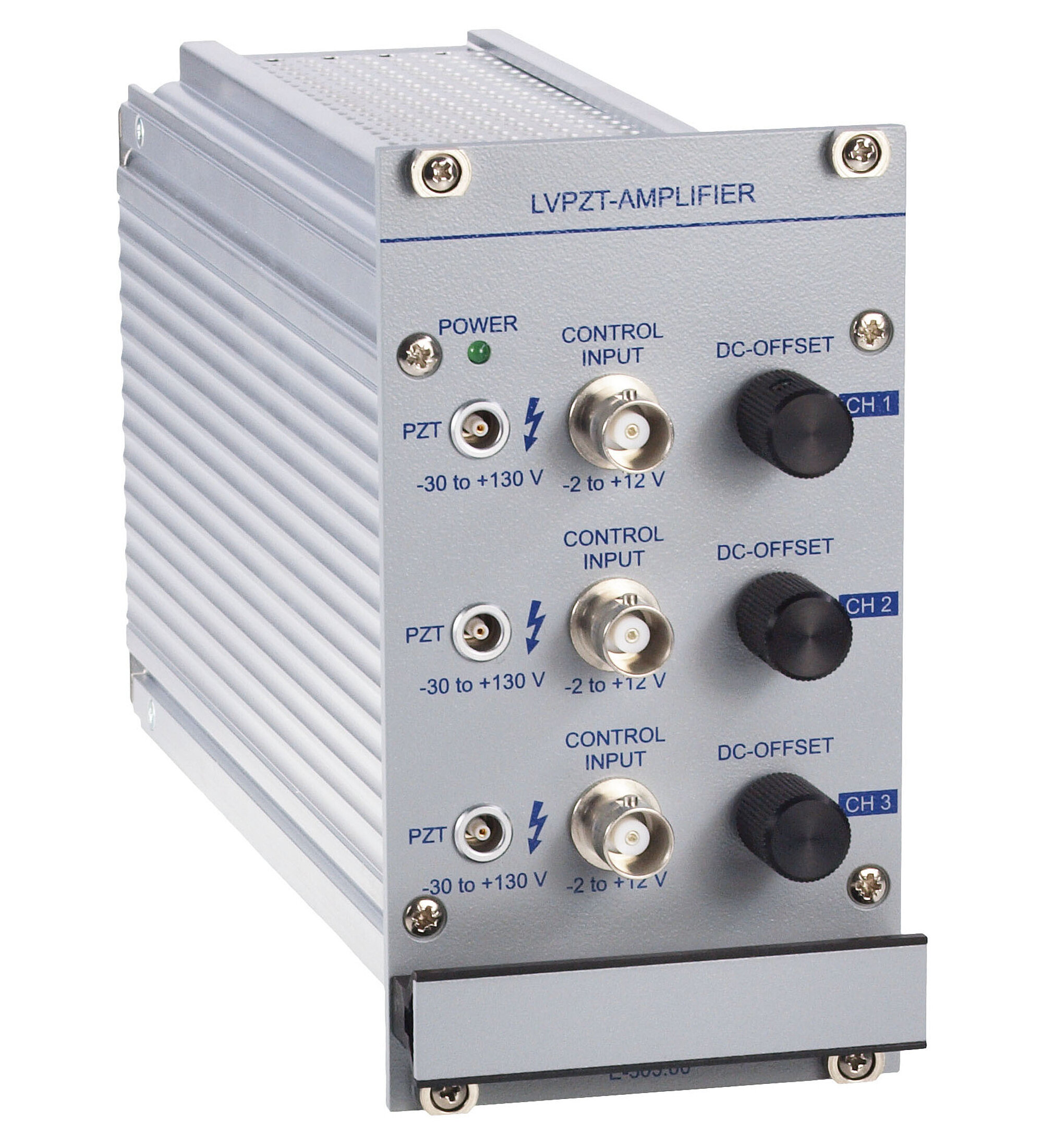

E-503 Piezo Amplifier Module

For Three Channels, E-500 Piezo Controller System

Plug-in module for E-500 piezo system
Peak current 3 × 140 mA
Output voltage range -30 to 130 V
Position control (optional)
Computer interface and display modules

Specifications

Datasheet E-503

Version / Date
2018-03-13
Version / Date
2018-03-13
Document language
pdf - 626 KB
pdf - 631 KB

Drawings / Images

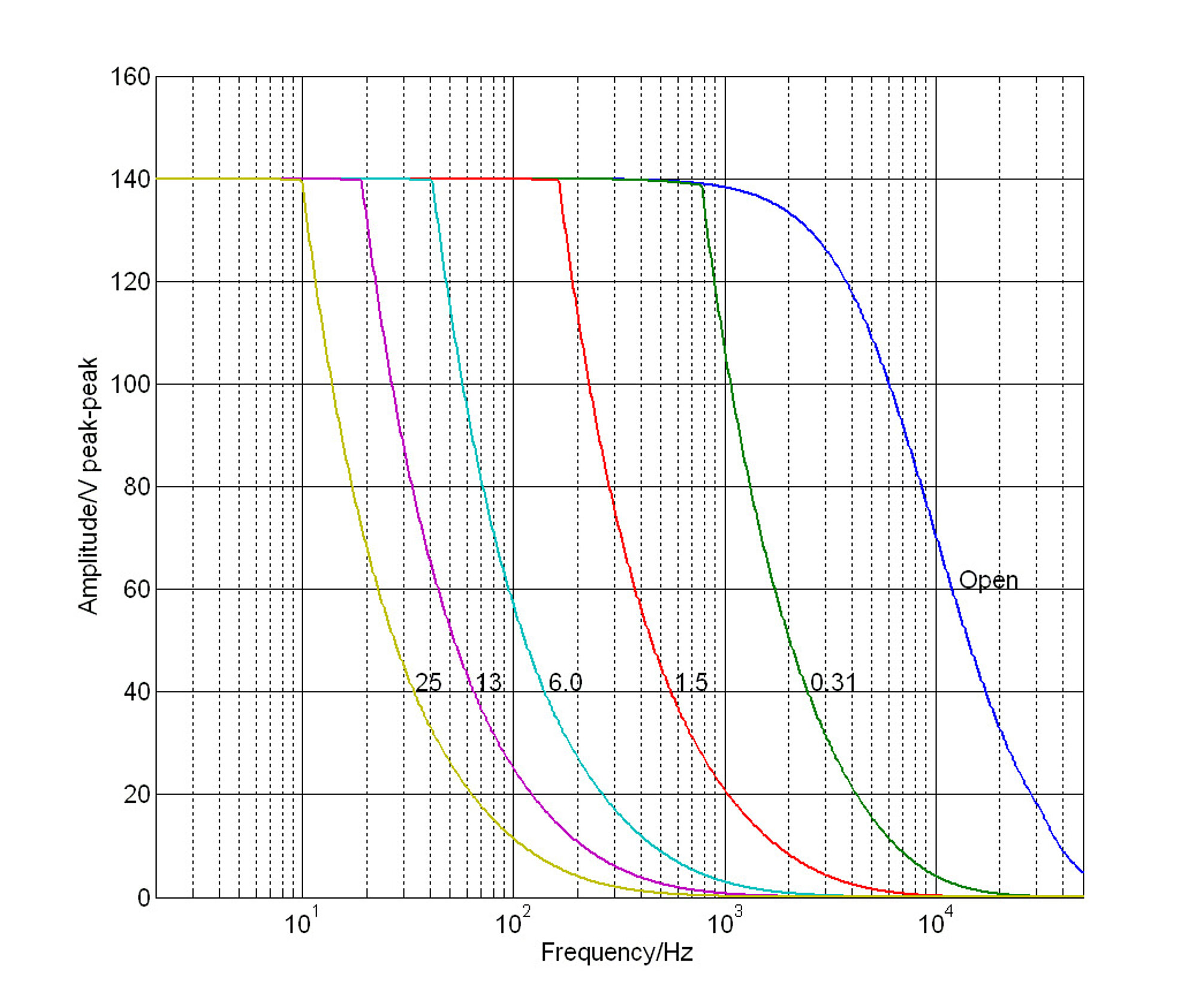

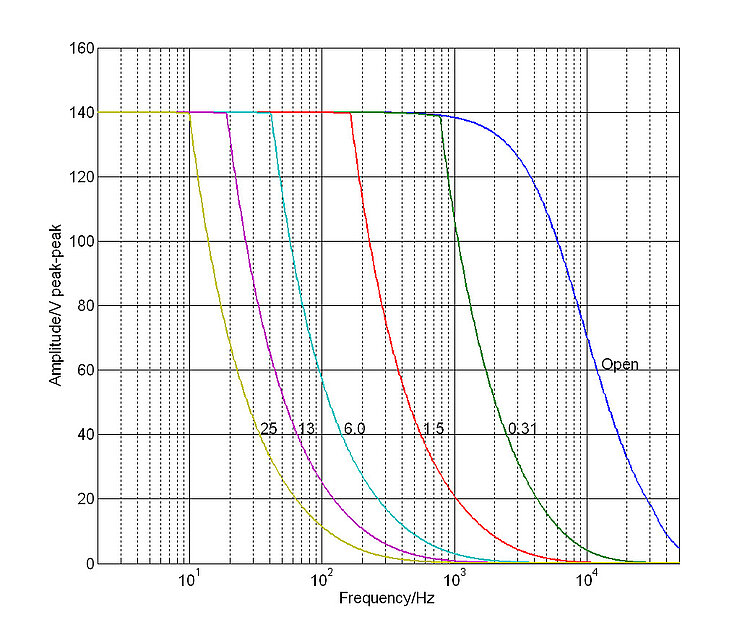

E-503: Operating limits (open loop) with various piezo loads, capacitance values in µF

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

E-503.00S
Piezo amplifier module, 2 channels, -30 to 130 V . Customized version, modified for S-330, S-340, S-334 tip/tilt mirror systems, with a fixed voltage of +100 V, two variable voltages
