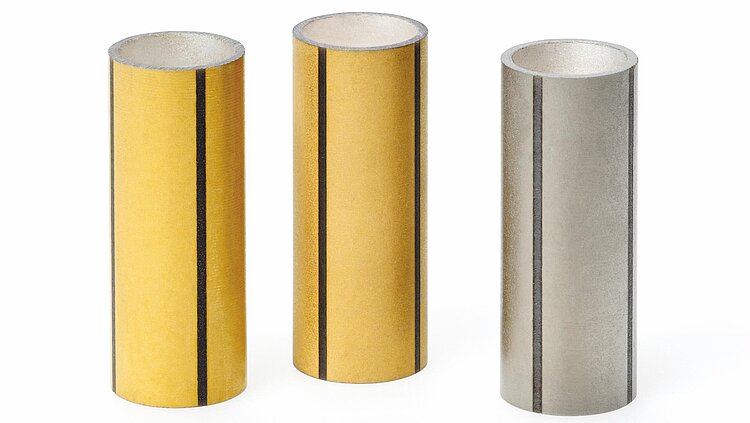

Piezo actuator / scanner tube
Bipolar operating voltage up to ±250 V. Fourfold segmented electrodes for axial and XY displacement. Monolithic piezoceramic actuator with minimal geometric tolerances. UHV-compatible to 10-9 hPa. Short lead times
Custom designs with modified specifications
- Operating voltage range, displacement
- Applied sensors
- Special high / low temperature versions

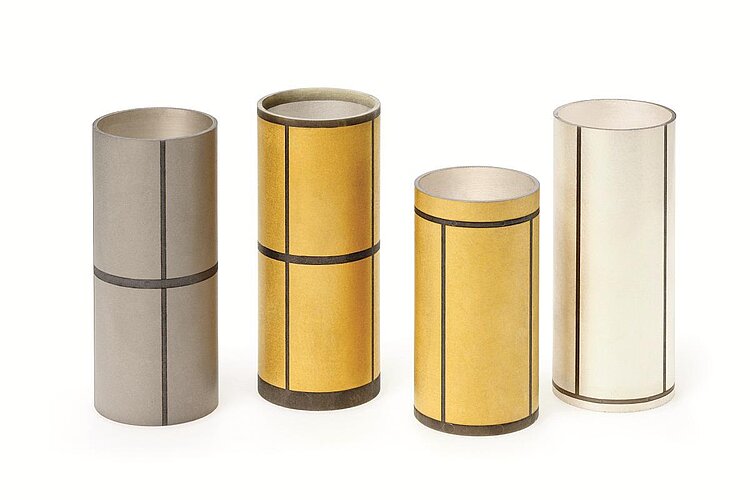

- Segmentation of the electrodes, wrap-around electrodes, circumferential insulating borders
- Length L max. 70 mm
- Outer diameter OD 2 to 80 mm
- Inner diameter ID 0.8 to 74 mm
- Min. wall thickness 0.30 mm
Fields of application
Industry and research, UHV environment up to 10-9 hPa. For microdosing, micromanipulation, scanning microscopy (AFM, STM, etc.), fiber stretching
User Manual A000T0047Handling and Electrical Contacting of Piezo Components2019-02-122019-02-12
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
