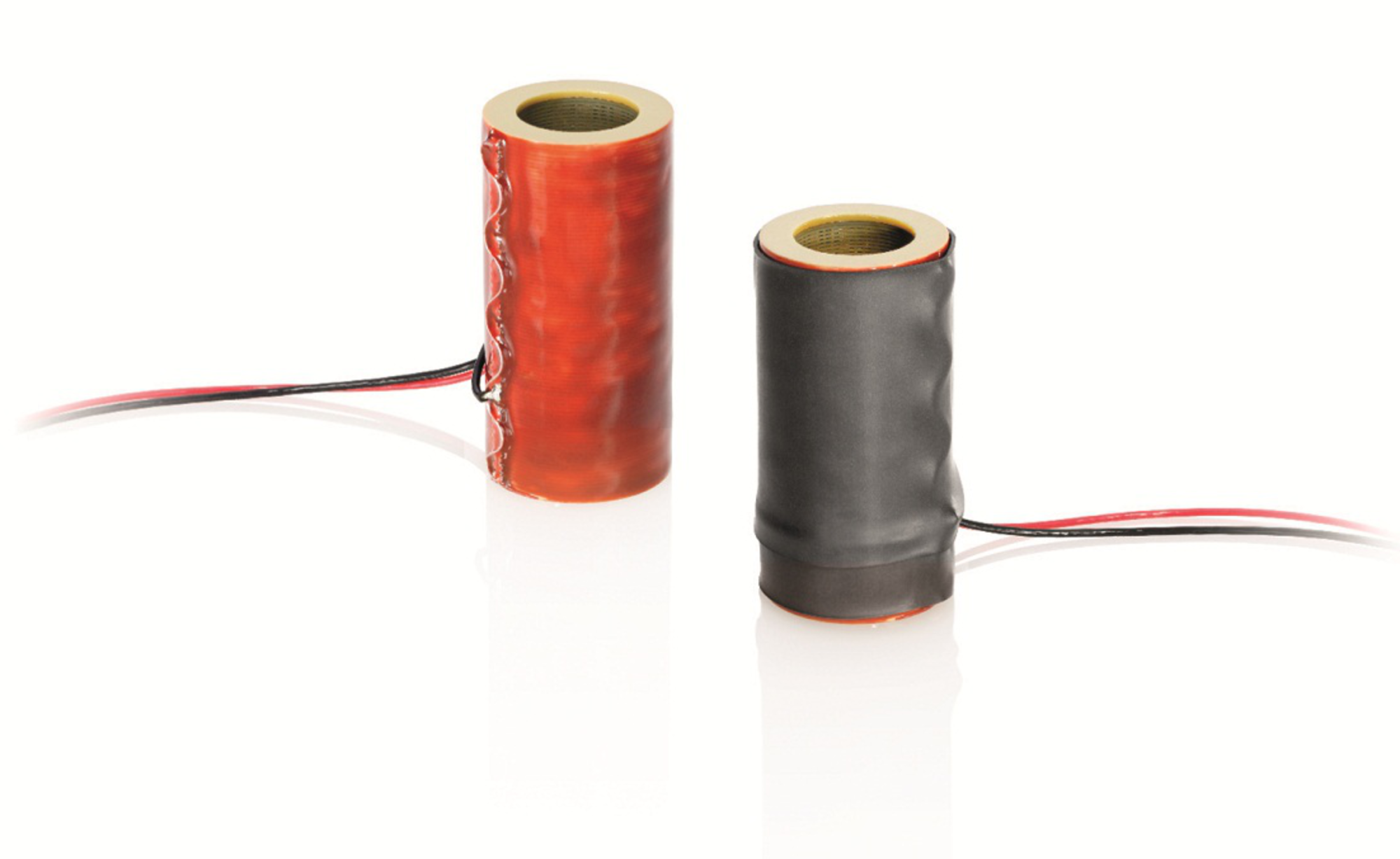

P-010.xxH – P-025.xxH PICA Thru Ring Actuators

High-Load Piezo Actuators with Inner Hole

High load capacity
Extreme reliability: >109 cycles
Microsecond response
Subnanometer resolution
Large choice of designs

Stacked piezo linear actuator

Operating voltage 0 to 1000 V. Long lifetime without derating. High specific displacement. A mechanical preload can be attached via inner holes



Available options

  • SGS sensors for positional stability
  • PZT ceramic material
  • Operating voltage range, displacement, layer thickness
  • Load capacity, force generation
  • Geometric shapes: round, rectangular, various cross sections
  • Mechanical interface: flat
  • Integrated piezoelectric detector layers
  • Special high / low temperature versions
  • UHV-compatible versions up to 10-9 hPa
  • Non-magnetic versions
  • Extra-tight length tolerances



Fields of application

Industry and research. For optics, precision mechanics and machining, laser tuning



Specifications

pdf
pdf

Datasheet P-010xx.H - P-025xx.H

pdf - 1 MB
pdf - 1 MB

Drawings / Images

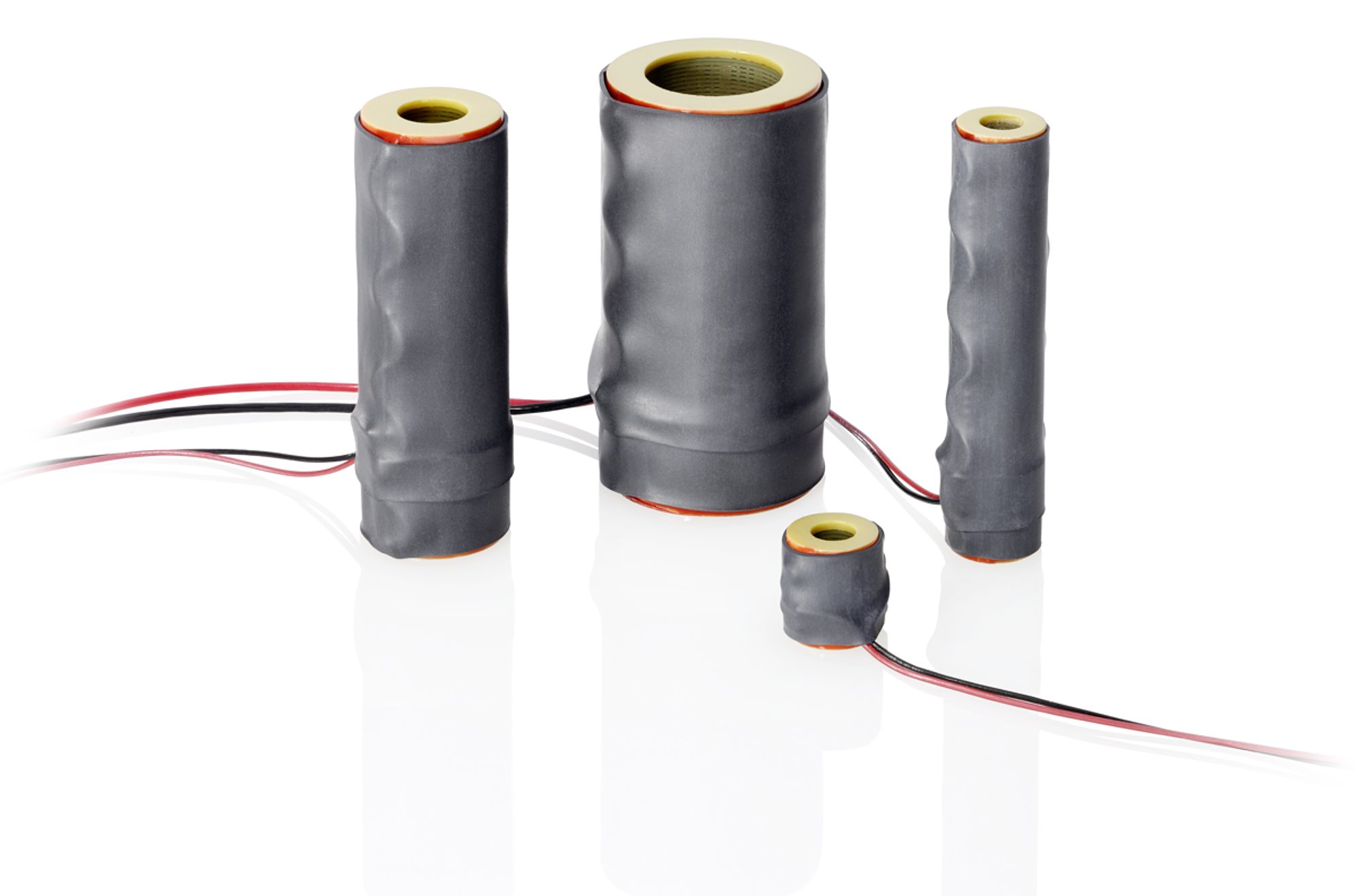

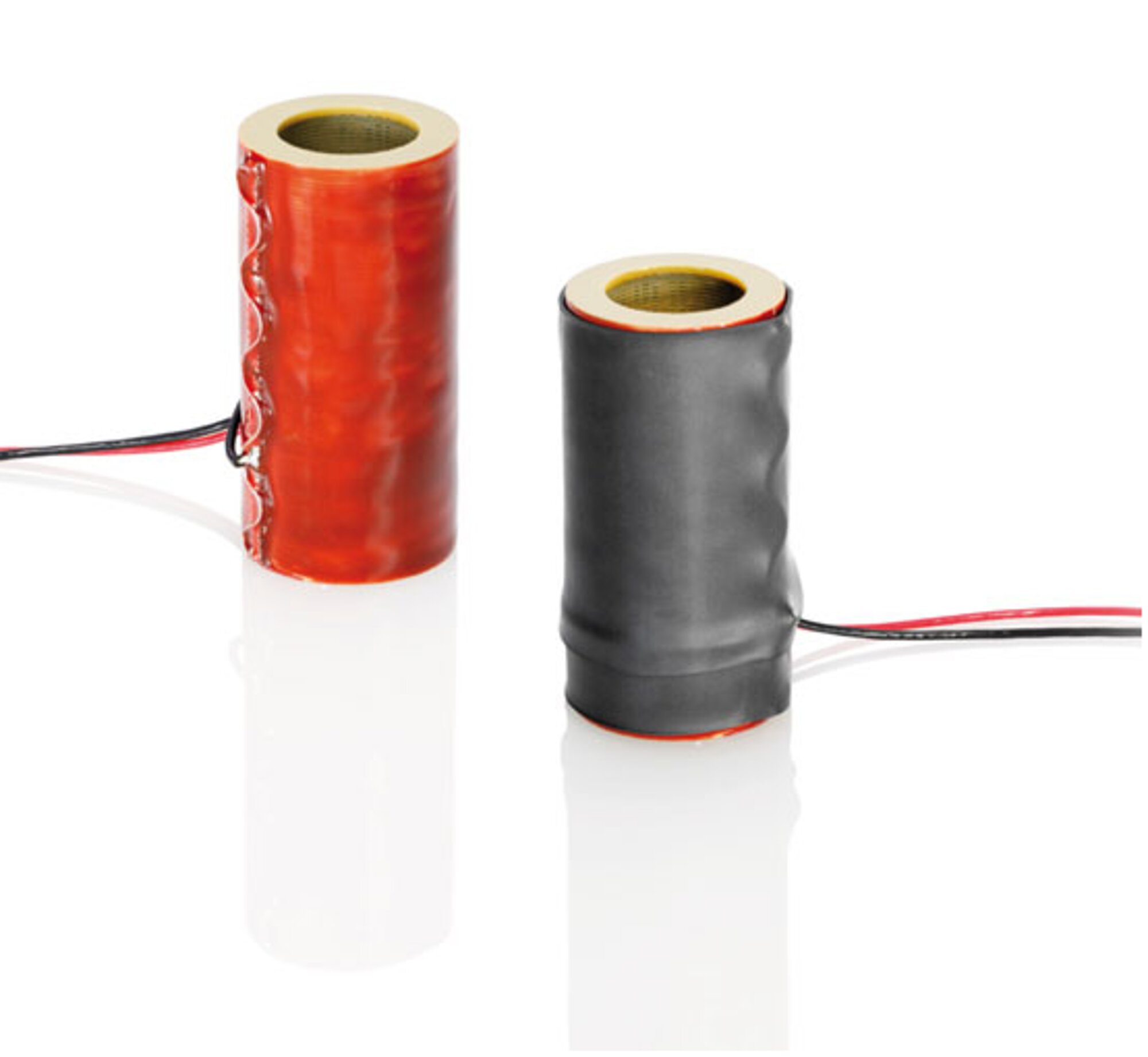

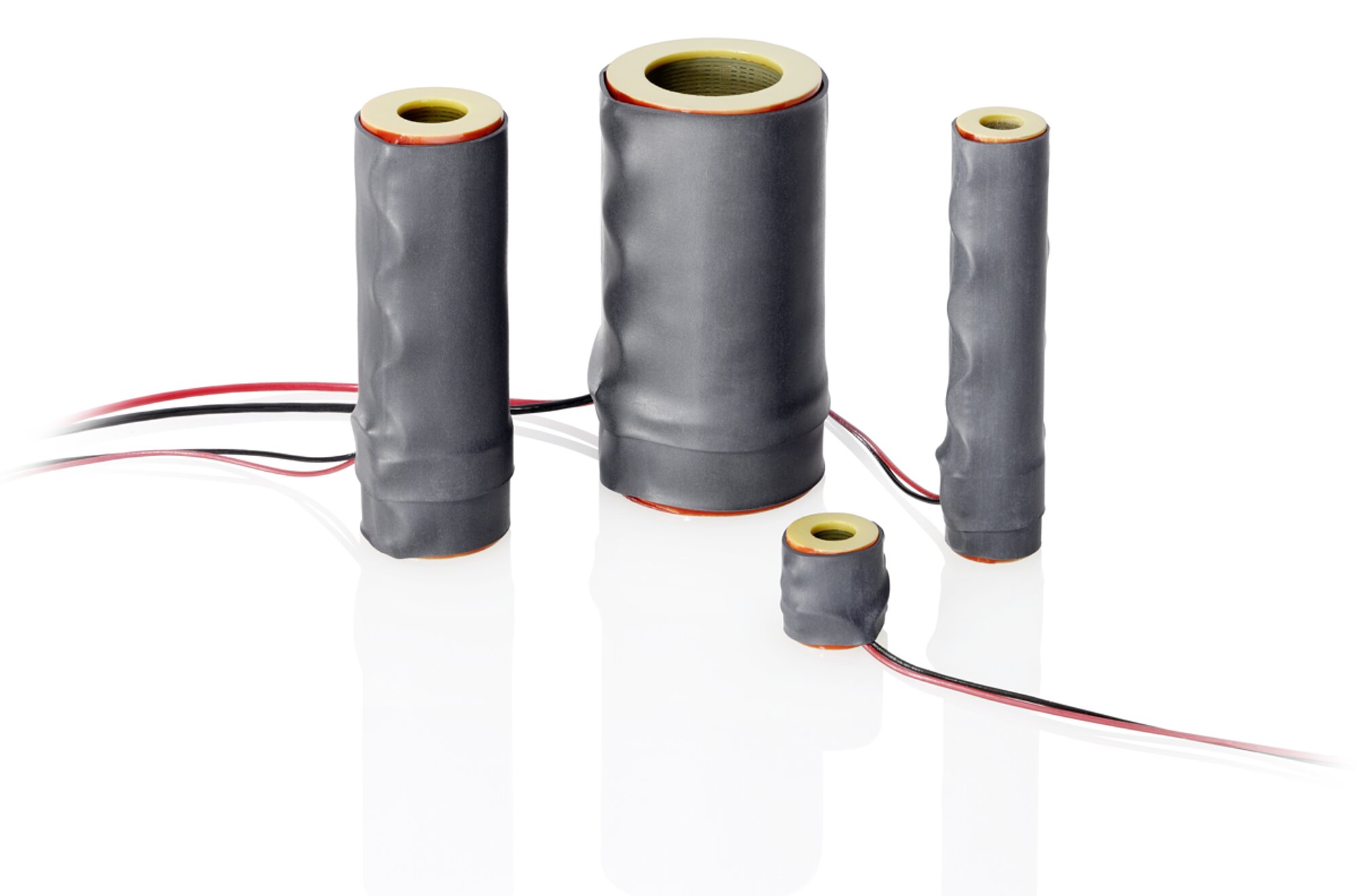

PI P-010.xxH

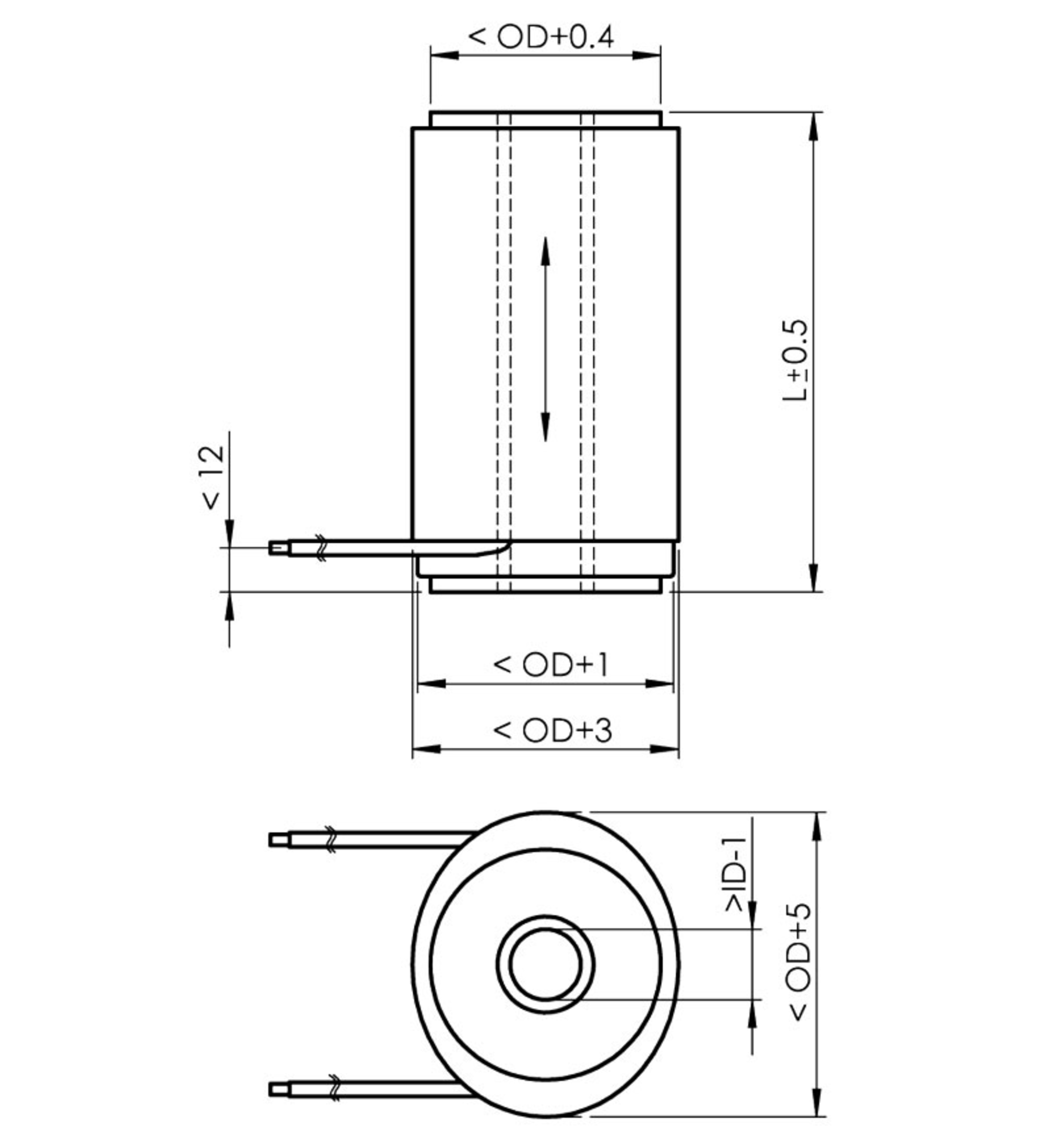

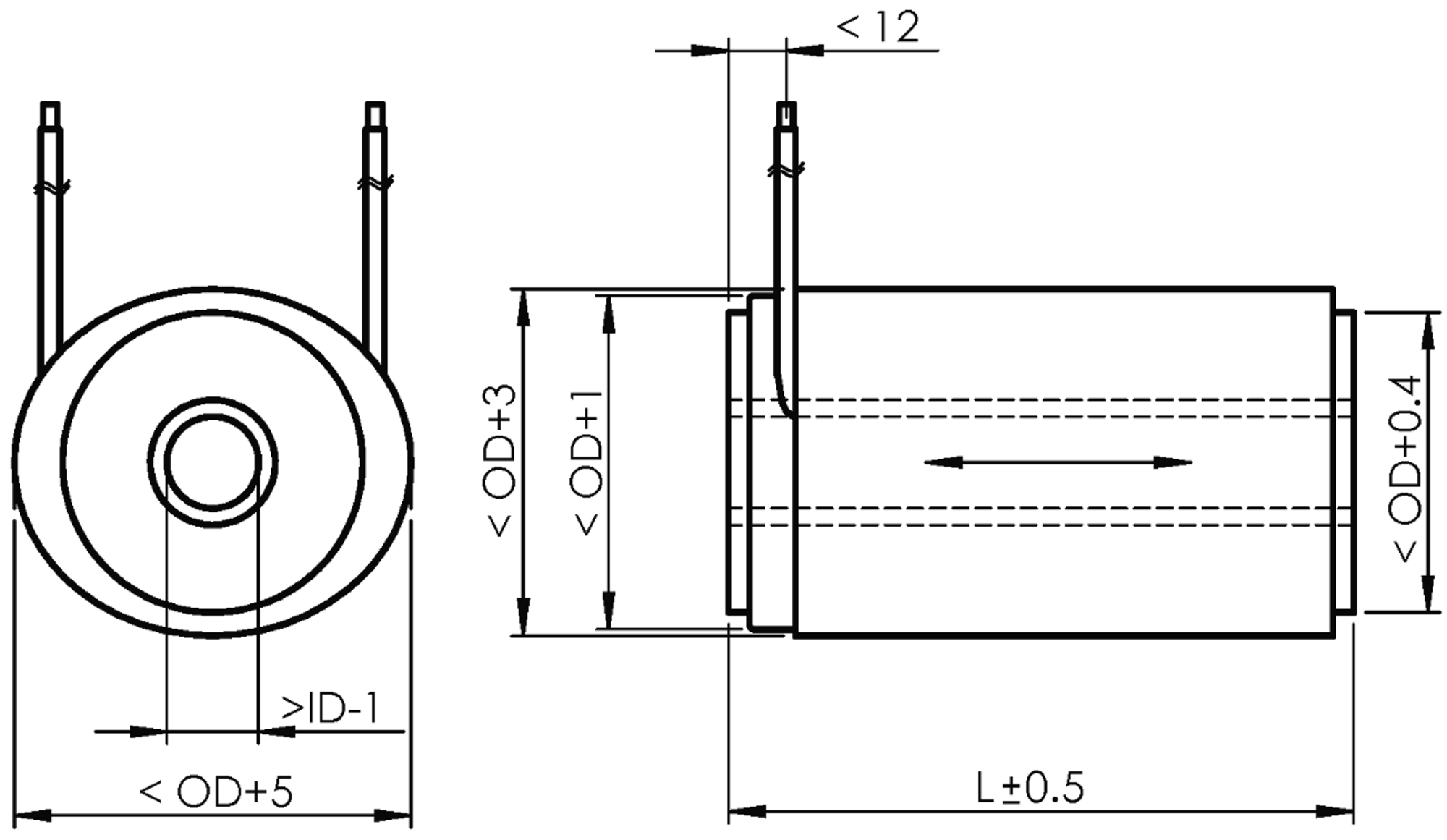

PI P-010.xxH Drawing
P-010.00H
PICA Thru Piezo Actuator, 5 µm Travel Range, OD 10 mm × ID 5 mm × L 7 mm
Add to cart Add to cart
In cart Remove from cart
P-010.10H
PICA Thru Piezo Actuator, 15 µm Travel Range, OD 10 mm × ID 5 mm × L 15 mm
Add to cart Add to cart
In cart Remove from cart
P-010.20H
PICA Thru Piezo Actuator, 30 µm Travel Range, OD 10 mm × ID 5 mm × L 27 mm
Add to cart Add to cart
In cart Remove from cart
P-010.40H
PICA Thru Piezo Actuator, 60 µm Travel Range, OD 10 mm × ID 5 mm × L 54 mm
Add to cart Add to cart
In cart Remove from cart
P-016.00H
PICA Thru Piezo Actuator, 5 µm Travel Range, OD 16 mm × ID 8 mm × L 7 mm
Add to cart Add to cart
In cart Remove from cart
P-016.10H
PICA Thru Piezo Actuator, 15 µm Travel Range, OD 16 mm × ID 8 mm × L 15 mm
Add to cart Add to cart
In cart Remove from cart
P-016.20H
PICA Thru Piezo Actuator, 30 µm Travel Range, OD 16 mm × ID 8 mm × L 27 mm
Add to cart Add to cart
In cart Remove from cart
P-016.40H
PICA Thru Piezo Actuator, 60 µm Travel Range, OD 16 mm × ID 8 mm × L 52 mm
Add to cart Add to cart
In cart Remove from cart
P-025.10H
PICA Thru Piezo Actuator, 15 µm Travel Range, OD 25 mm × ID 16 mm × L 16 mm
Add to cart Add to cart
In cart Remove from cart
P-025.20H
PICA Thru Piezo Actuator, 30 µm Travel Range, OD 25 mm × ID 16 mm × L 27 mm
Add to cart Add to cart
In cart Remove from cart
P-025.40H
PICA Thru Piezo Actuator, 60 µm Travel Range, OD 25 mm × ID 16 mm × L 51 mm
Add to cart Add to cart
In cart Remove from cart
P-025.50H
PICA Thru Piezo Actuator, 80 µm Travel Range, OD 25 mm × ID 16 mm × L 66 mm
Add to cart Add to cart
In cart Remove from cart

Custom designs or different specifications on request.

Downloads

Datasheet

pdf
pdf

Datasheet P-010xx.H - P-025xx.H

pdf - 1 MB
pdf - 1 MB

Documentation

pdf
pdf

User Manual PZ138

PICA Piezo Actuators: P-007, P-010, P-016, P-025, P-035, P-045, P-050, P-056 PICA Stack/Power/Thru Customized Products
2014-12-10
2014-12-10
pdf - 922 KB
pdf - 923 KB
