Piezo shear actuators

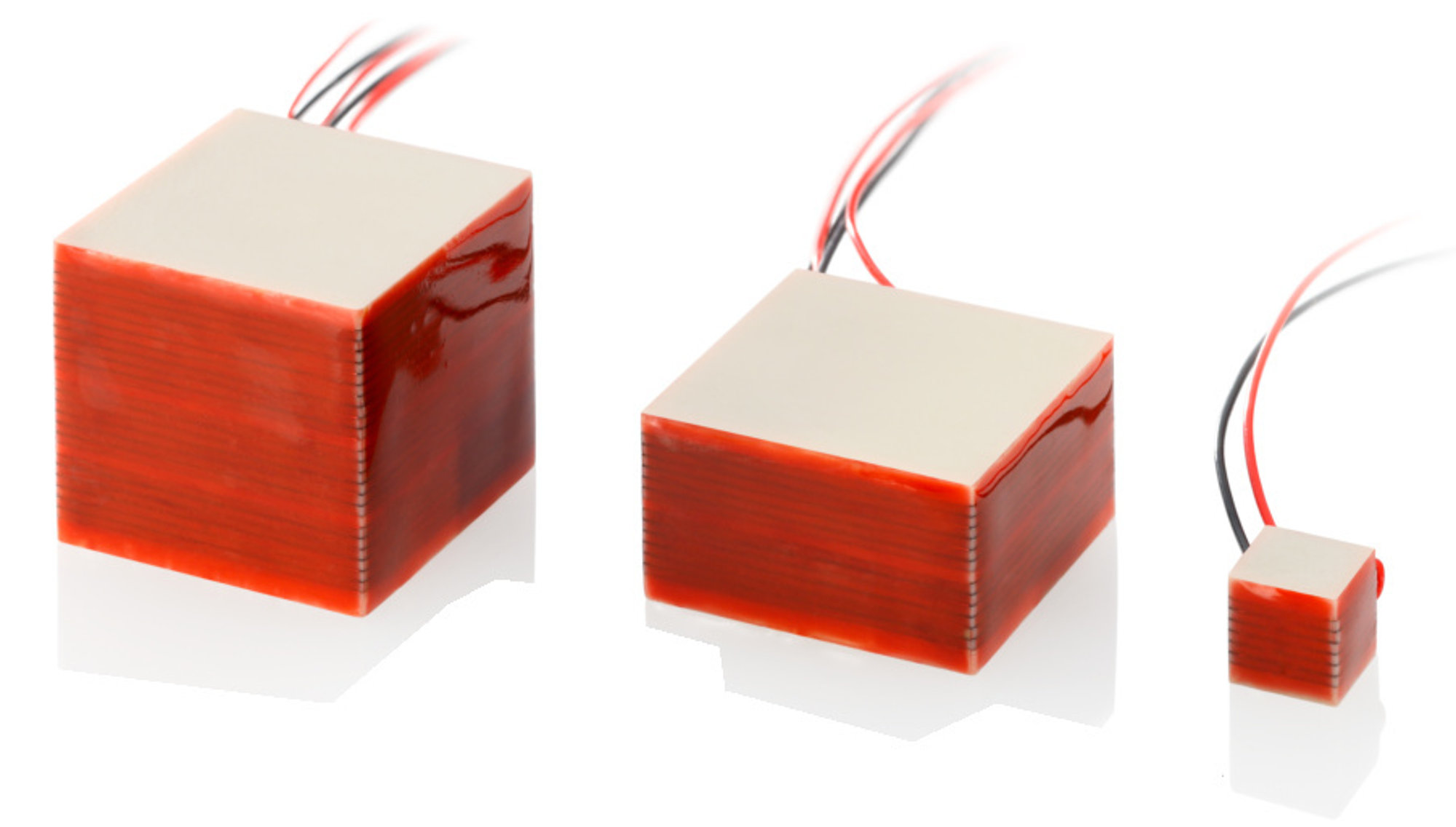

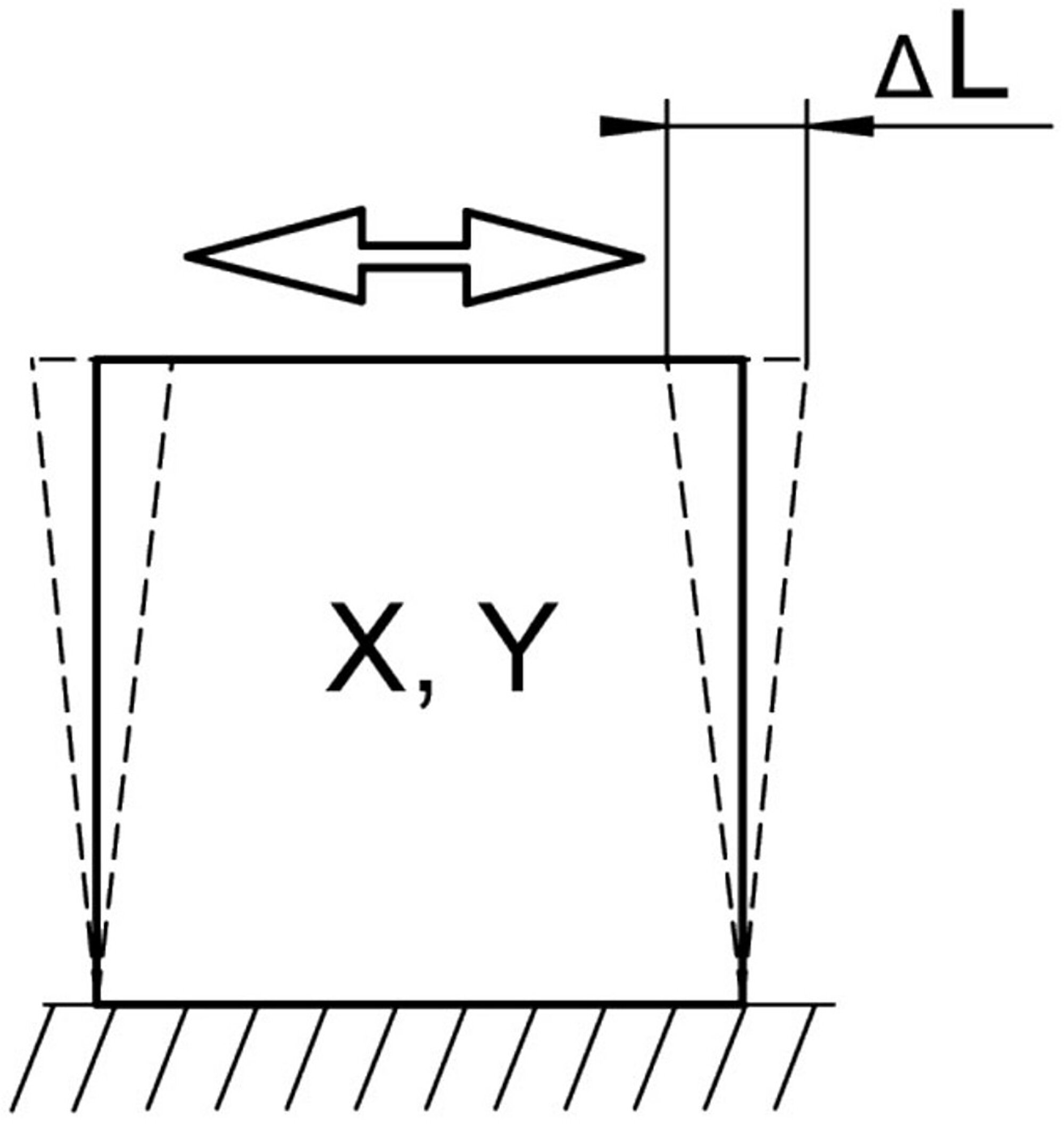

Operating voltage -250 to 250 V. Lateral displacement is based on the piezoelectric shear effect. Excellent dynamics with minimum electric power requirement.
Variants with inner hole or for use in cryogenic and UHV environments to 10-9 hPa.
- Piezo ceramic material
- Nonmagnetic versions
- Operating voltage range, displacement, layer thickness, cross-sectional dimension
- Load capacity, force generation
- Mechanical interfaces: flat, spherical, metal, ceramic, glass, sapphire, etc.
- Extra-tight length tolerances
Fields of application
- Industry and research
- Scanning applications
- Precision mechanics
- Switching applications
Datasheet P-111 - P-1532018-04-252018-04-252018-04-25
Datasheet P-111 - P-1532018-04-252018-04-252018-04-25
Short Instructions PZ257EKPICA Piezo Actuators up to 1000 V: P-0xx, P-1xx, P-405, PICA Stack, PICA Power, PICA Thru, PICA Shear, Picoactuator®2.1.0 01/2019English
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

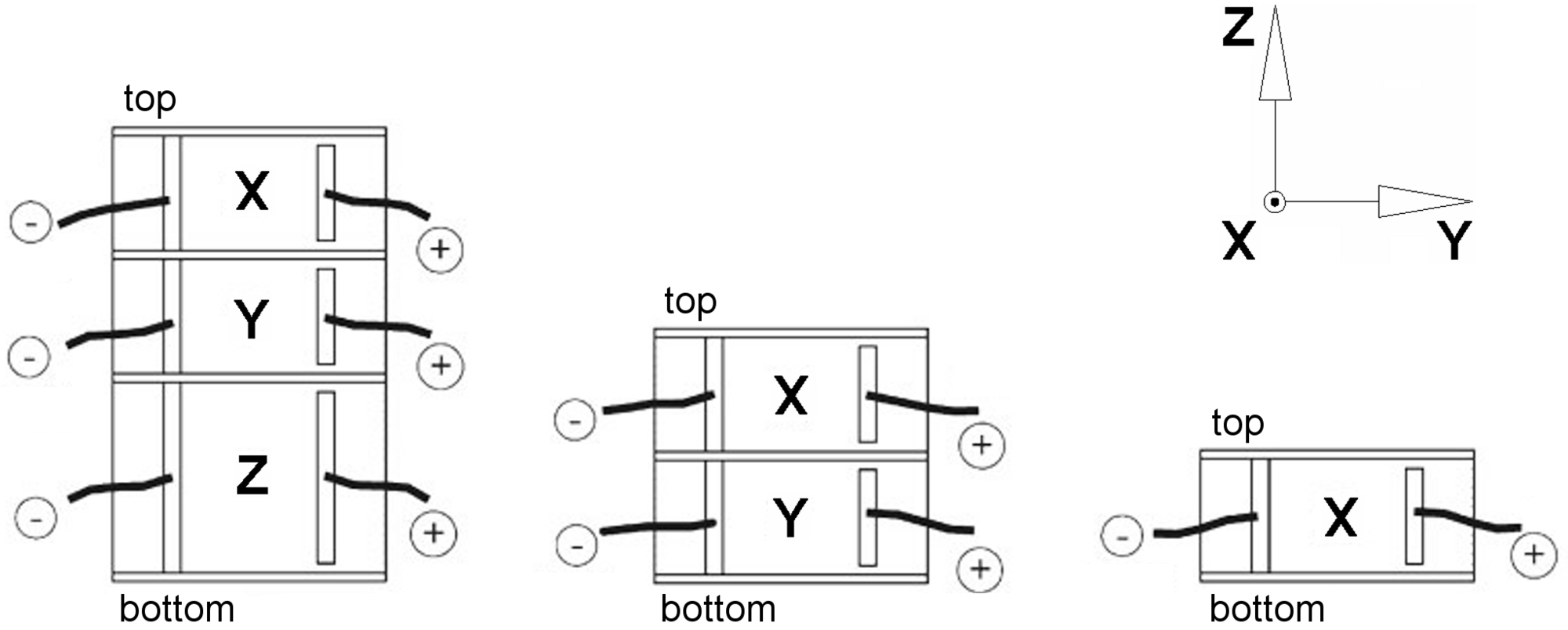

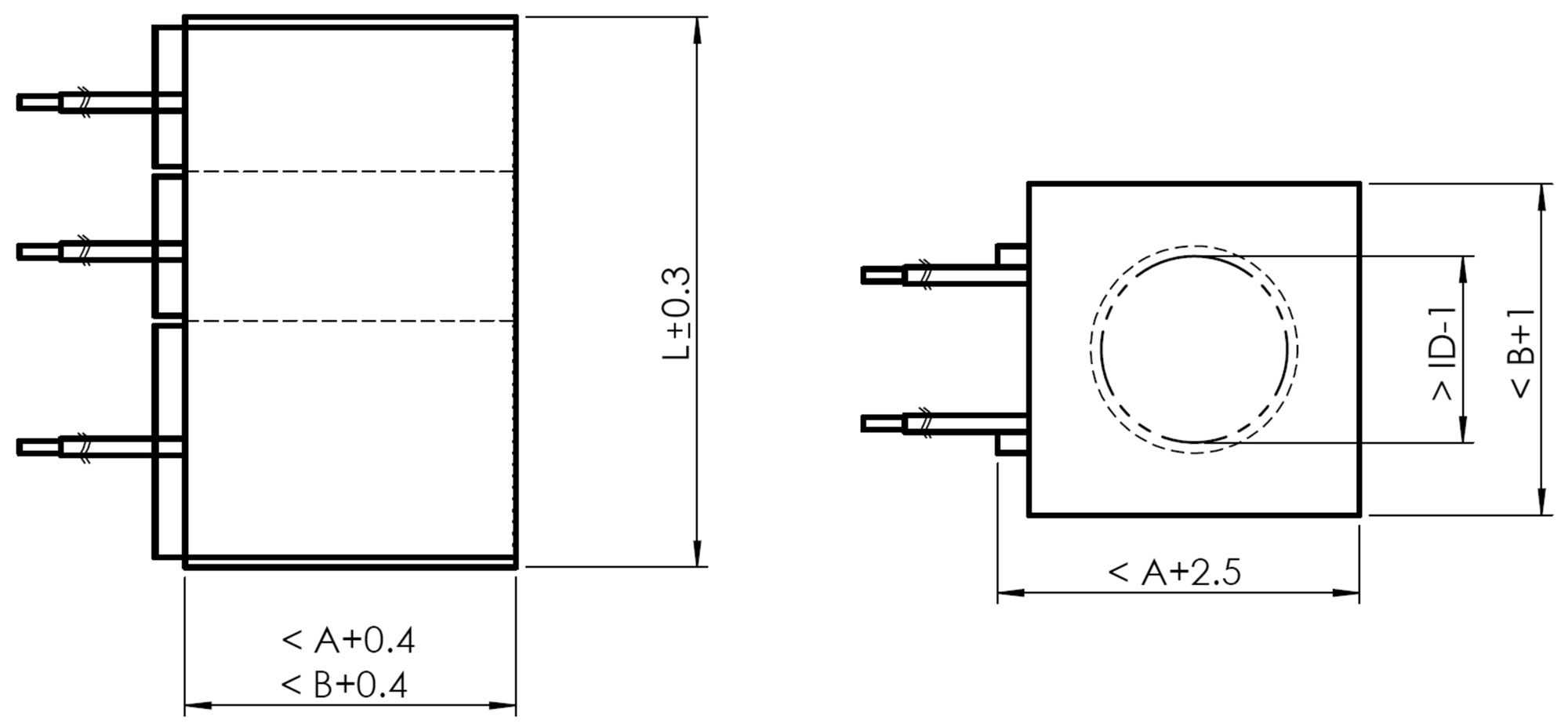

Active axes X
Active axes XY
Active axes XYZ
