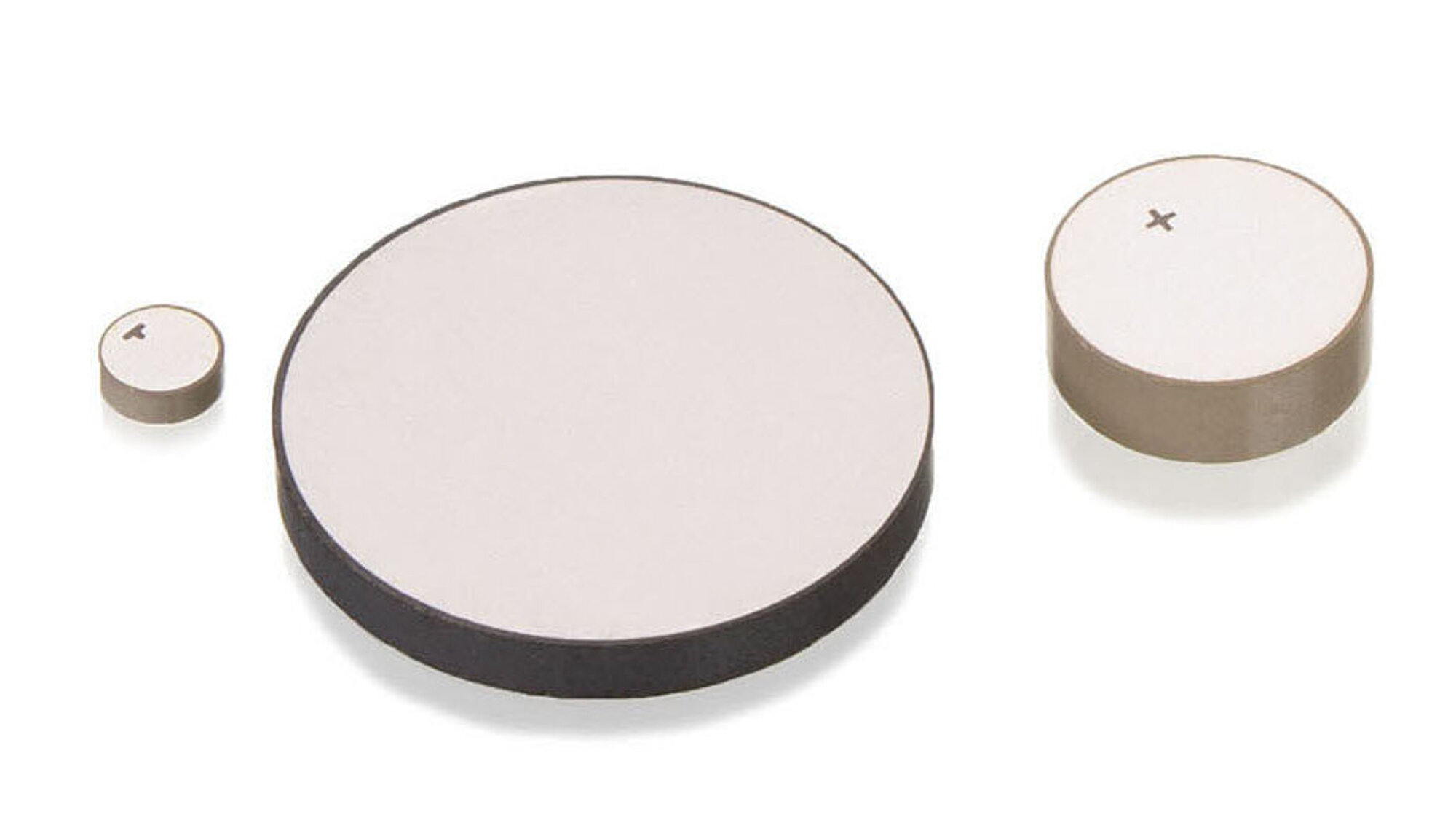

Piezoelectric Discs

Fast Availability of Specified Versions

Piezo material matched to the application
Full-surface contact electrodes
Can be delivered within two weeks
Larger quantities available direct from stock

Fields of application

Piezo components made of ferroelectric soft piezo material (PIC255):

  • Sensor technology
  • Actuator engineering
  • Air ultrasound

Piezo components made of ferroelectric hard piezo material (PIC181):

  • High-power ultrasound applications
  • Sonar

Customized versions and other specifications on request

  • Flexible, selectable dimensions
  • Piezo material
  • Contacting
  • Polarity
  • Electrical connections
  • Assembling technology
  • Special ambient conditions



Specifications

Piezo Components Datasheet

Version / Date
2018-03-15
Version / Date
2018-03-15
Version / Date
2017-09-20
Document language
pdf - 644 KB
pdf - 648 KB
pdf - 645 KB

Drawings and Images

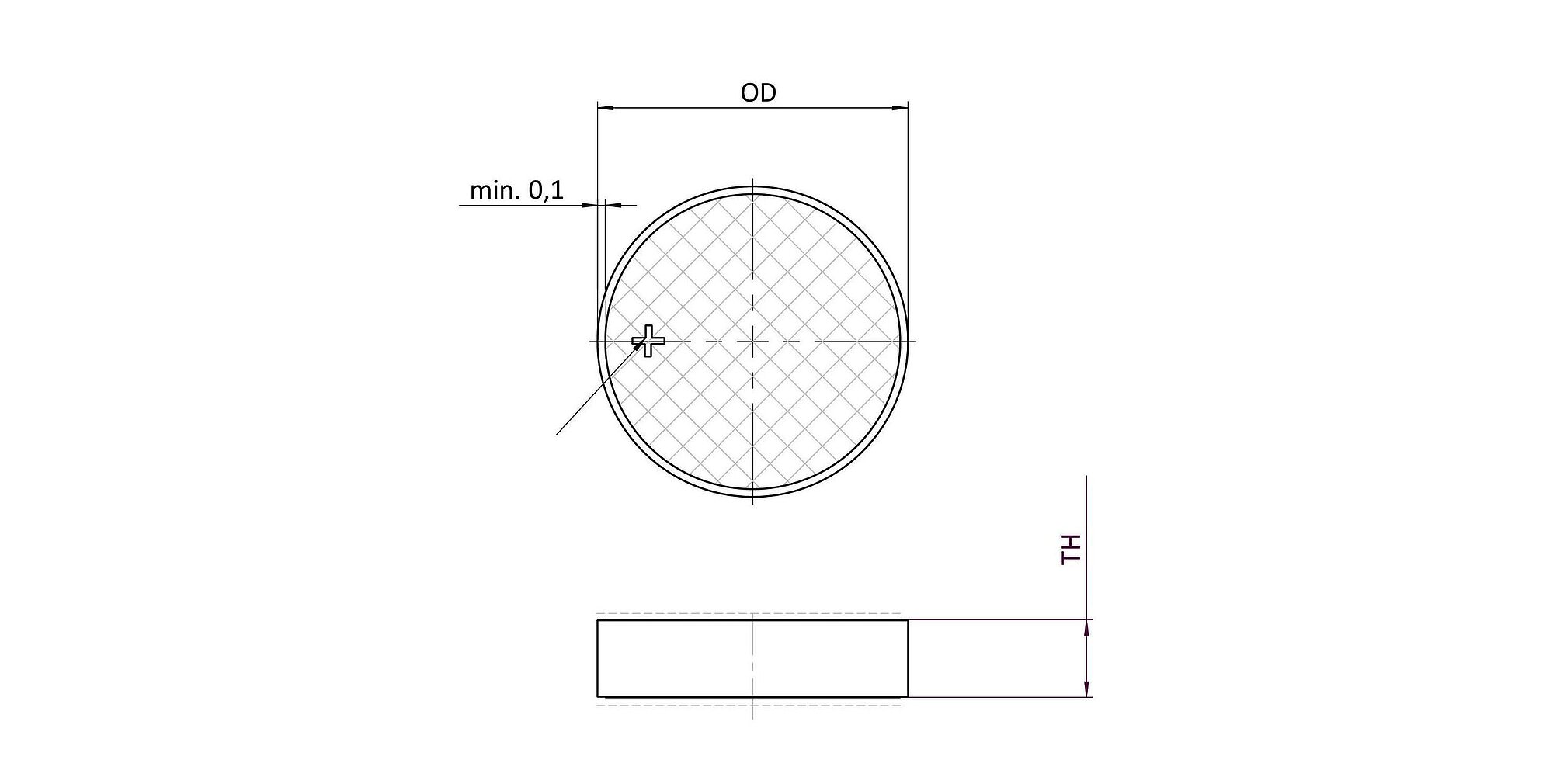

Piezoelectric discs, dimensions in mm

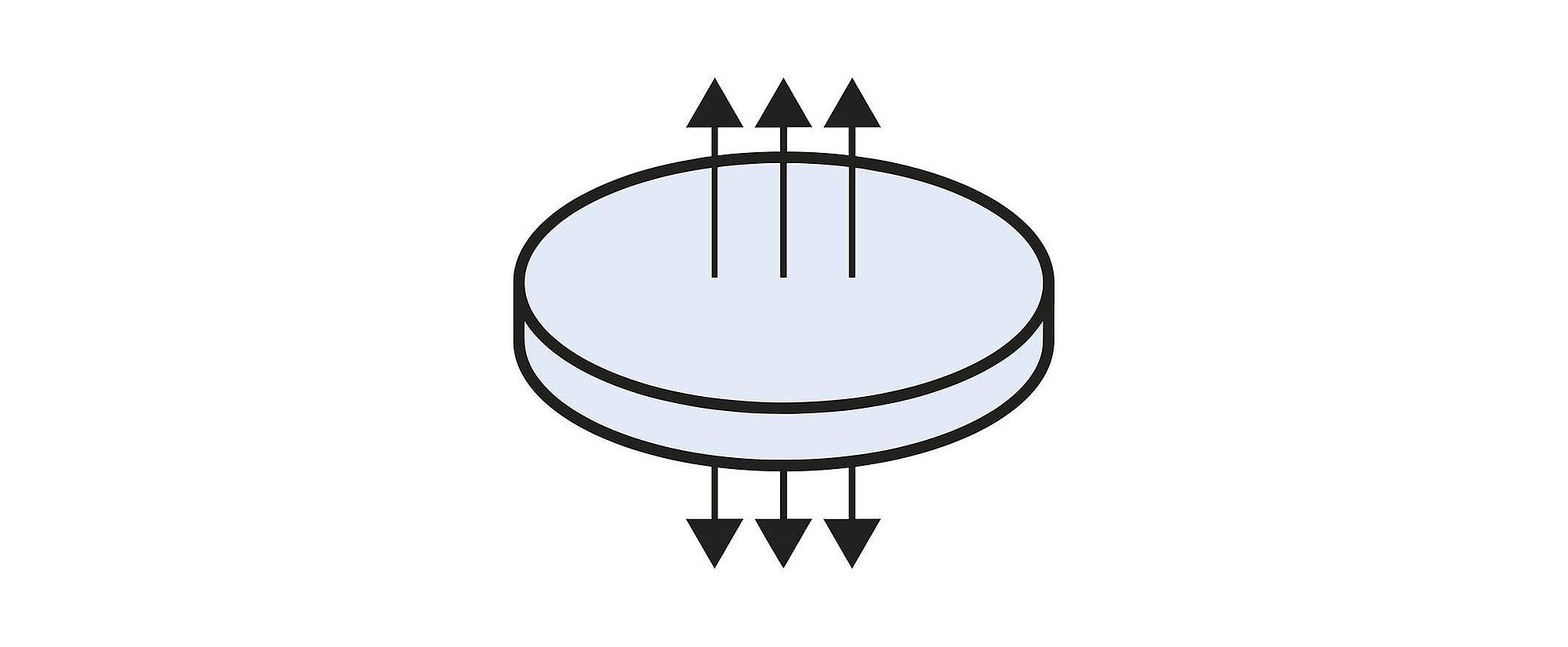

Displacement of piezoelectric discs, thickness oscillation

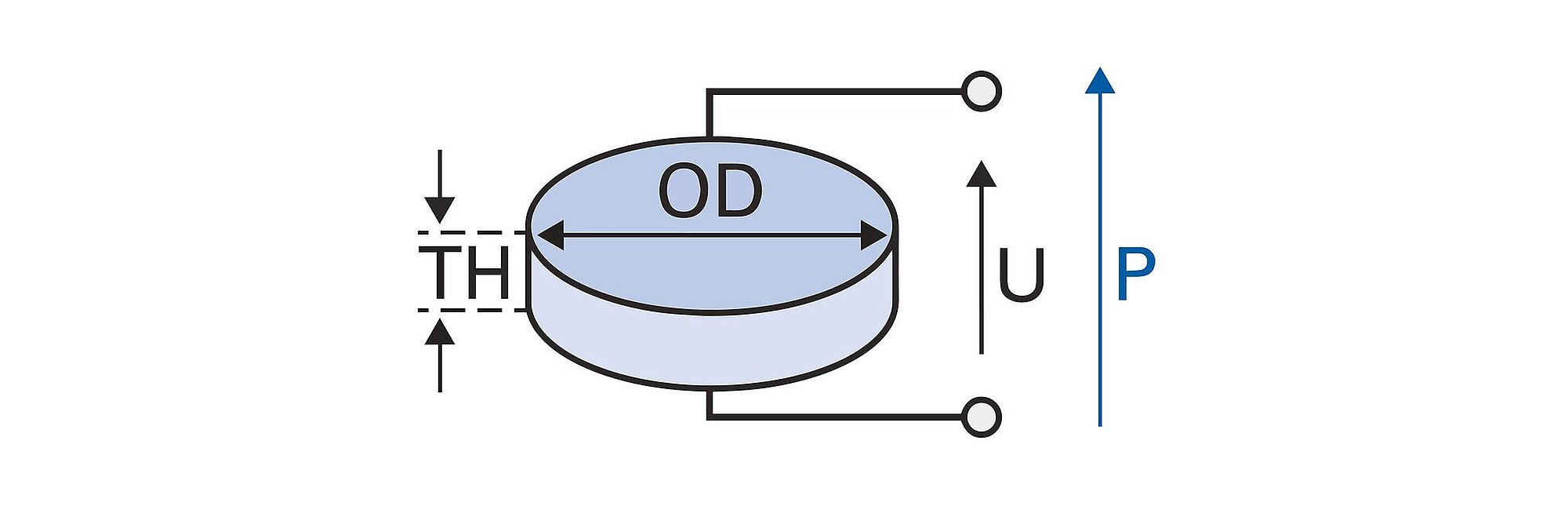

Piezoelectric discs, allocation of dimensions and direction of polarization P

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

Piezo components made of ferroelectric soft piezo material (PIC255), with silver electrodes

Piezo components made of ferroelectric hard piezo material (PIC181), with silver electrodes
