Piezoceramic Discs, Rods & Cylinders

Miniaturized Piezo Ceramics - Disks

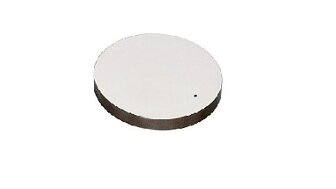

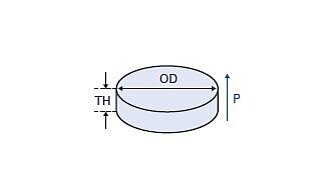

Customized Discs without Special Electrodes

OD     Outer diameter

TH      Thickness
P        Polarization direction

Outer diameter OD
2 to 80 mm
Thickness TH
0.15 to 30 mm
Silver (thick layer) or PVD thin layer (different materials: e.g. CuNi, Au, etc.)

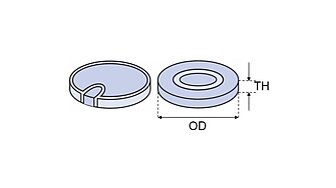

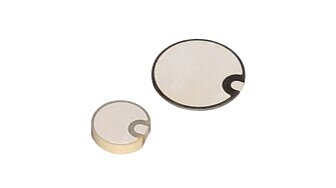

Customized Discs with Special Electrodes (Wrap-Around Contacts)

OD     Outer diameter
TH      Thickness

Wrap-around electrodes allow you to establish electrical contacting at a favorable position within the mechanical assembly.

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI Ceramic sales engineer.
