P-010.xxP – P-056.xxP PICA Power Piezo Actuators

For High-Dynamics Applications

  • Operating temperature up to 150 °C
  • High operating frequencies
  • High load capacity
  • Force generation up to 70 kN
P-010.xxP – P-056.xxP PICA Power Piezo Actuators
Product Description Specifications Downloads Quote / Order

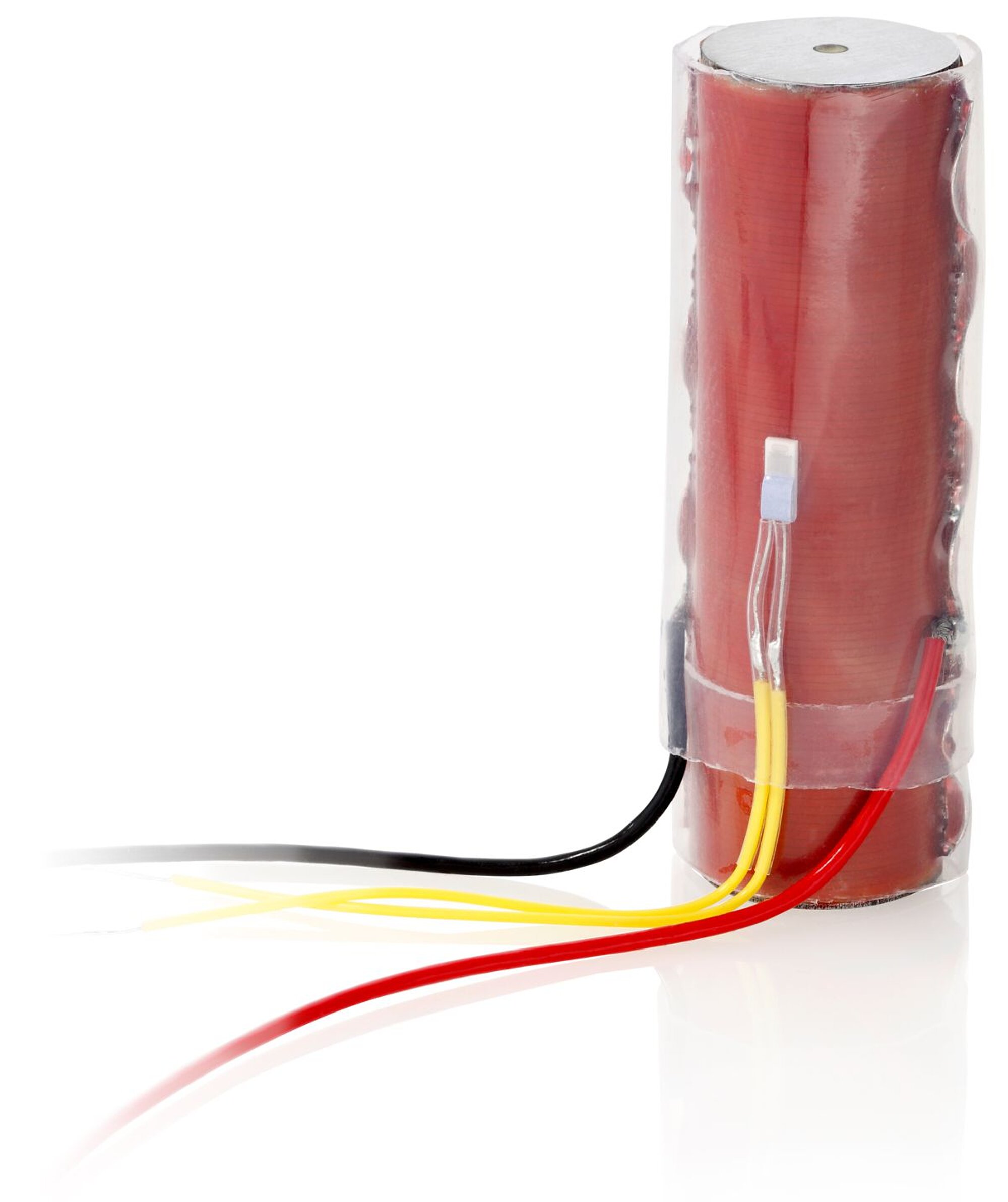

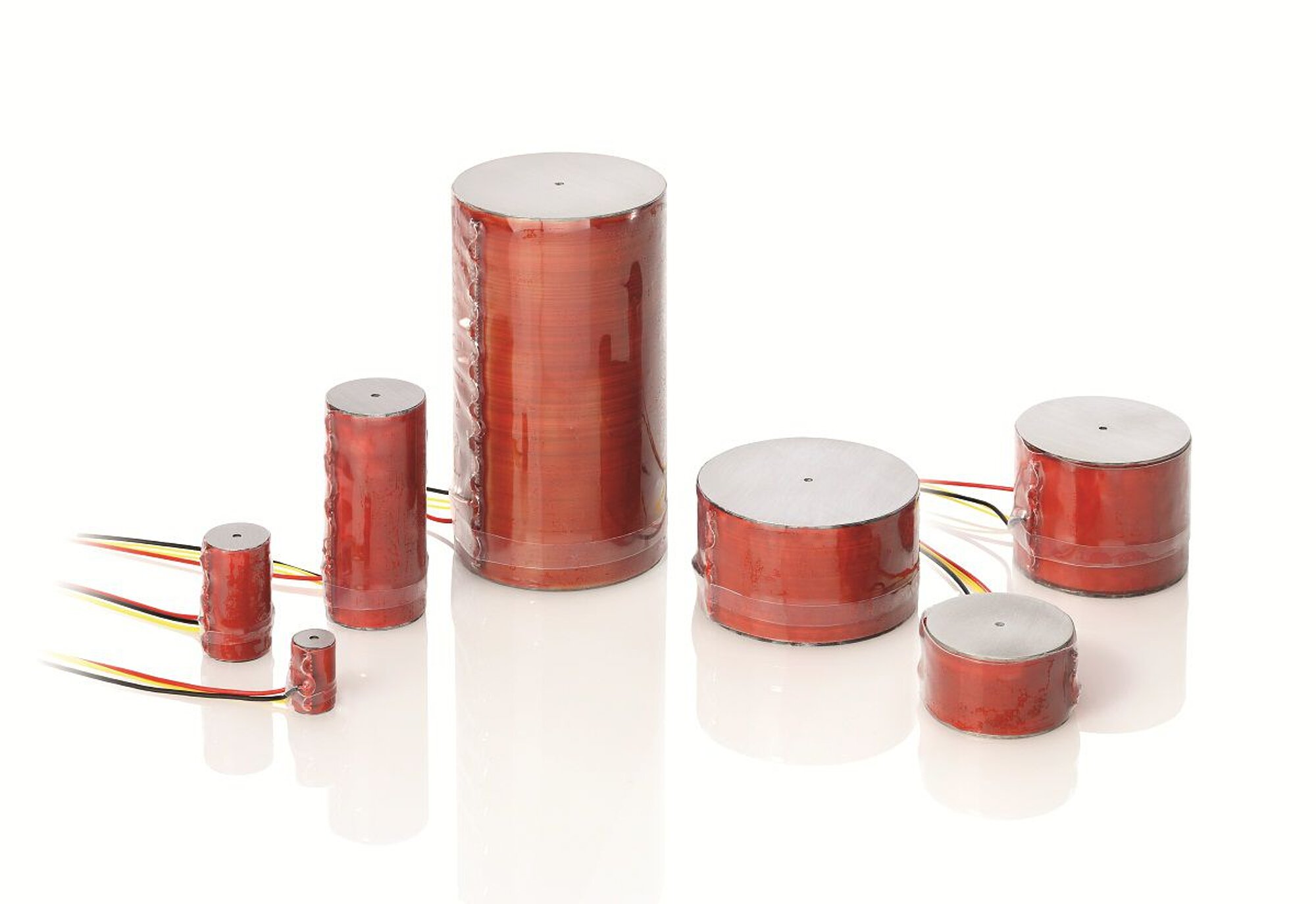

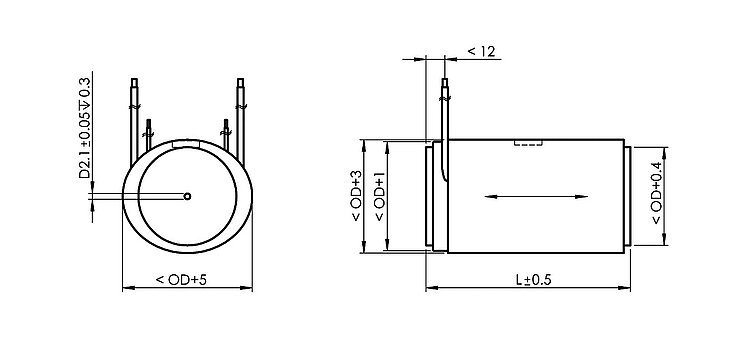

Stacked piezo linear actuator
Operating voltage 0 to 1000 V. Long lifetime without derating. Large displacement, low electrical capacitance. Sub-nanometer resolution, µs response. Integrated temperature sensor to prevent damage from overheating. Extreme reliability: >109 cycles





Available options

  • Bipolar control
  • SGS sensors for positional stability

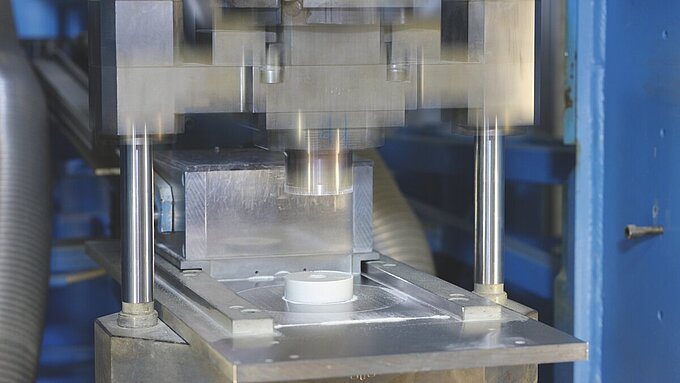

  • PZT ceramic material
  • Operating voltage range, displacement, layer thickness
  • Load capacity, force generation
  • Geometric shapes: rectangular, inner hole
  • Mechanical interfaces: flat, metal, ceramic, glass, sapphire, etc.
  • Integrated piezoelectric detector layers
  • Operating temperature of up to 200 °C
  • UHV-compatible to 10-9 hPa
  • Non-magnetic versions
  • Extra-tight length tolerances



Fields of application

Industry and research. For active damping of oscillations, precision mechanics and machining, active structures (adaptive systems technology)



Specifications

Datasheet

Datasheet P-010xx.P - P-056xx.P
