P-405 Picoactuator®

Multi-axis Actuators with Highly Linear Displacement

PI P-405
Lead-free, crystalline actuator material
High dynamics
Ideal for operation without position control
Low electrical power consumption
Minimal length tolerances

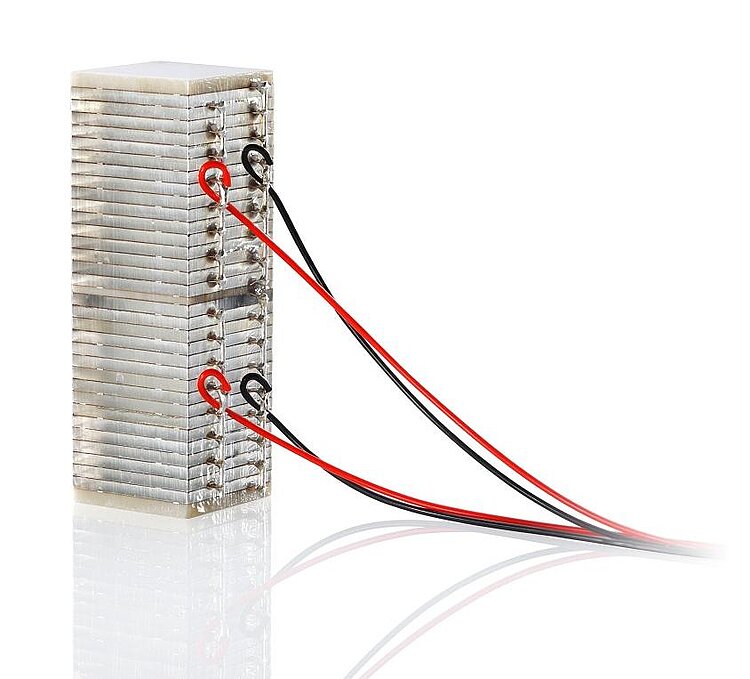

Stack actuator

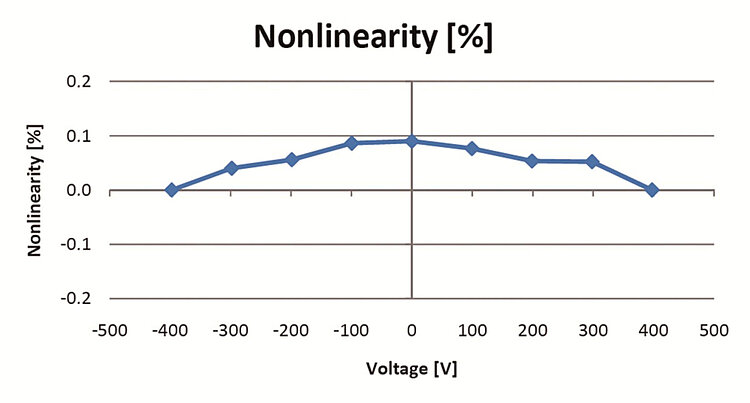

Bipolar operating voltage up to ±500 V. Nearly hysteresis-free motion (<0.2%).

No creep. Picoactuator®, as longitudinal and shear actuators, are configurable up to heights of 20 mm and maximum travel of ±1.5 µm



Available options

    UHV-compatible to 10-9 hPa
  • Inner hole
  • End pieces



Fields of application

Industry and research. Vacuum. For high-dynamics, open-loop scanning applications, compensation of undesired transverse motions with nanopositioning systems ("out-of-plane" and "out-of-line")

Specifications

Datasheet P-405

Version / Date
2016-07-19
Version / Date
2016-07-19
Document language
pdf - 812 KB
pdf - 931 KB

Drawings / Images

PI Picoactuator Collection
PI P-405 Drawing

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

Ask about custom designs!
