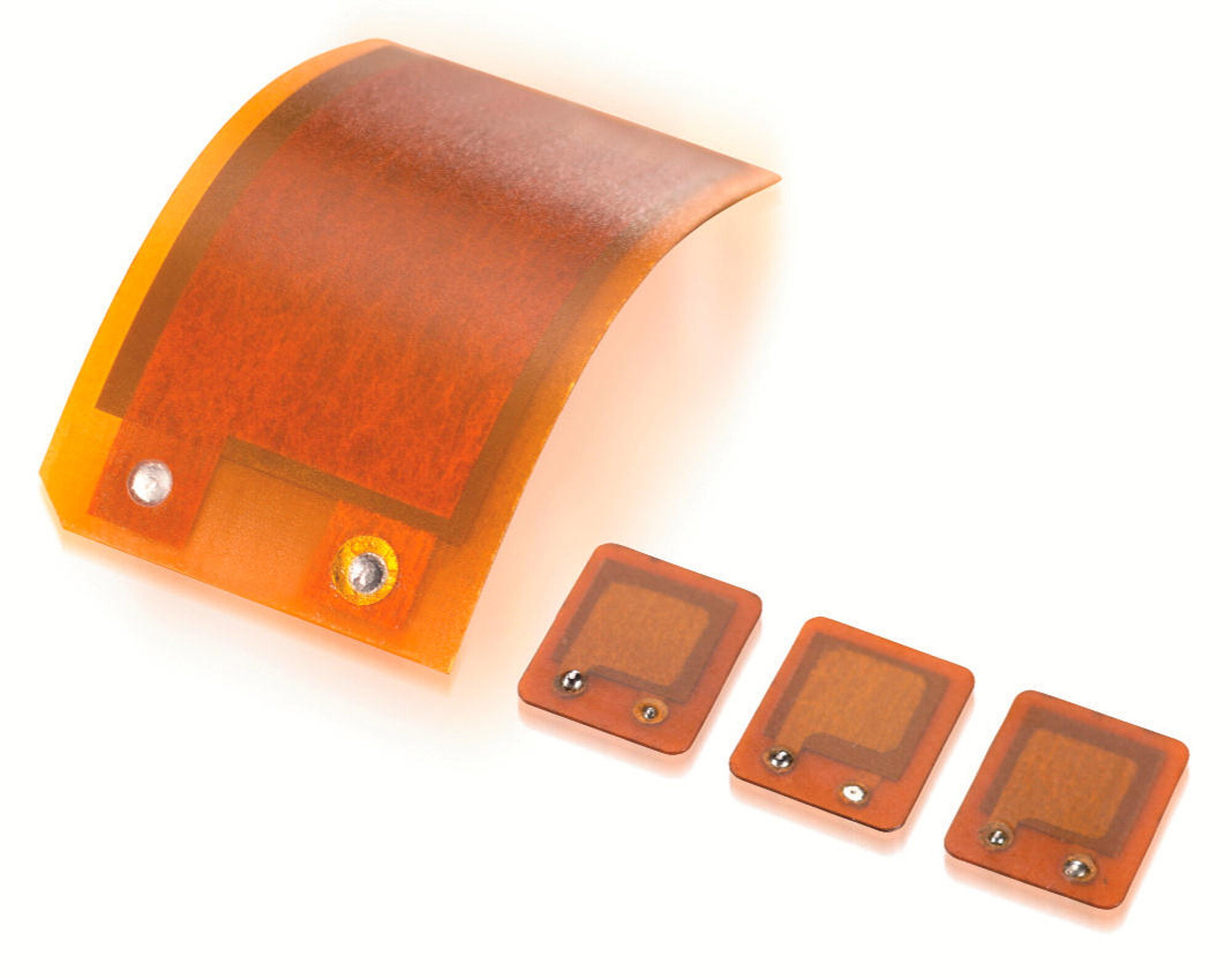

P-876 DuraAct Patch Transducer

Bendable and Robust

PI P-876
Useable as actuator, sensor or energy generator
Cost-effective
Min. bending radii of down to 12 mm
Compact design
Individual solutions

Patch transducer

Functionality as actuator and sensor component. Nominal operating voltage from 100 up to 1000 V, depending on the active layer height. Power generation for self-sufficient systems possible up to the milliwatt range. Can also be applied to curved surfaces



Robust, cost-effective design

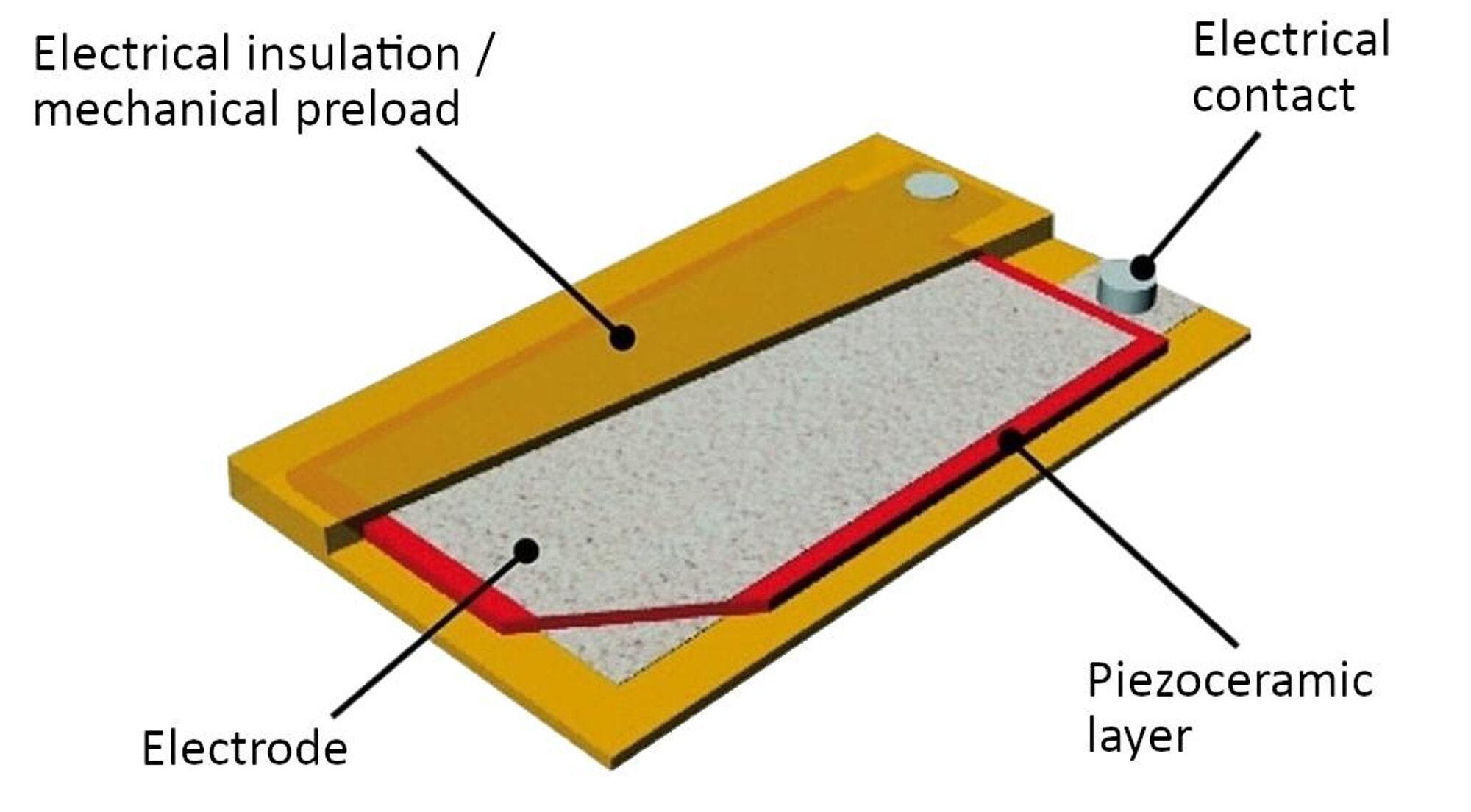

Laminated structure consisting of a piezoceramic plate, electrodes and polymer materials. Manufactured with bubble-free injection method. The polymer coating simultaneously serves as a mechanical preload as well as an electrical insulation, which makes the DuraAct bendable

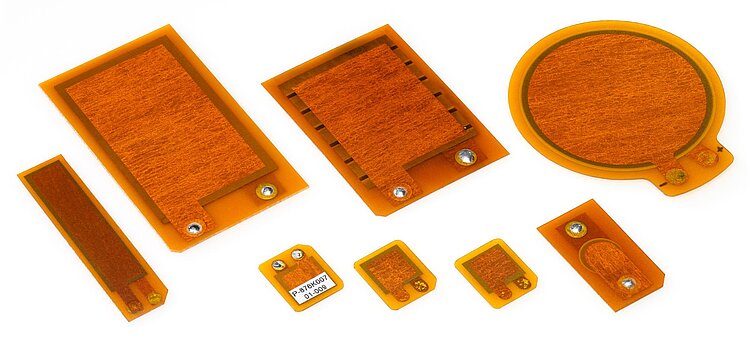

Custom DuraAct patch transducers

  • Flexible choice of size
  • Flexible choice of thickness and thus bending ability
  • Flexible choice of piezoceramic material
  • Variable design of the electrical connections
  • Combined actuator / sensor applications, even with several piezoceramic layers
  • Multilayer piezo elements

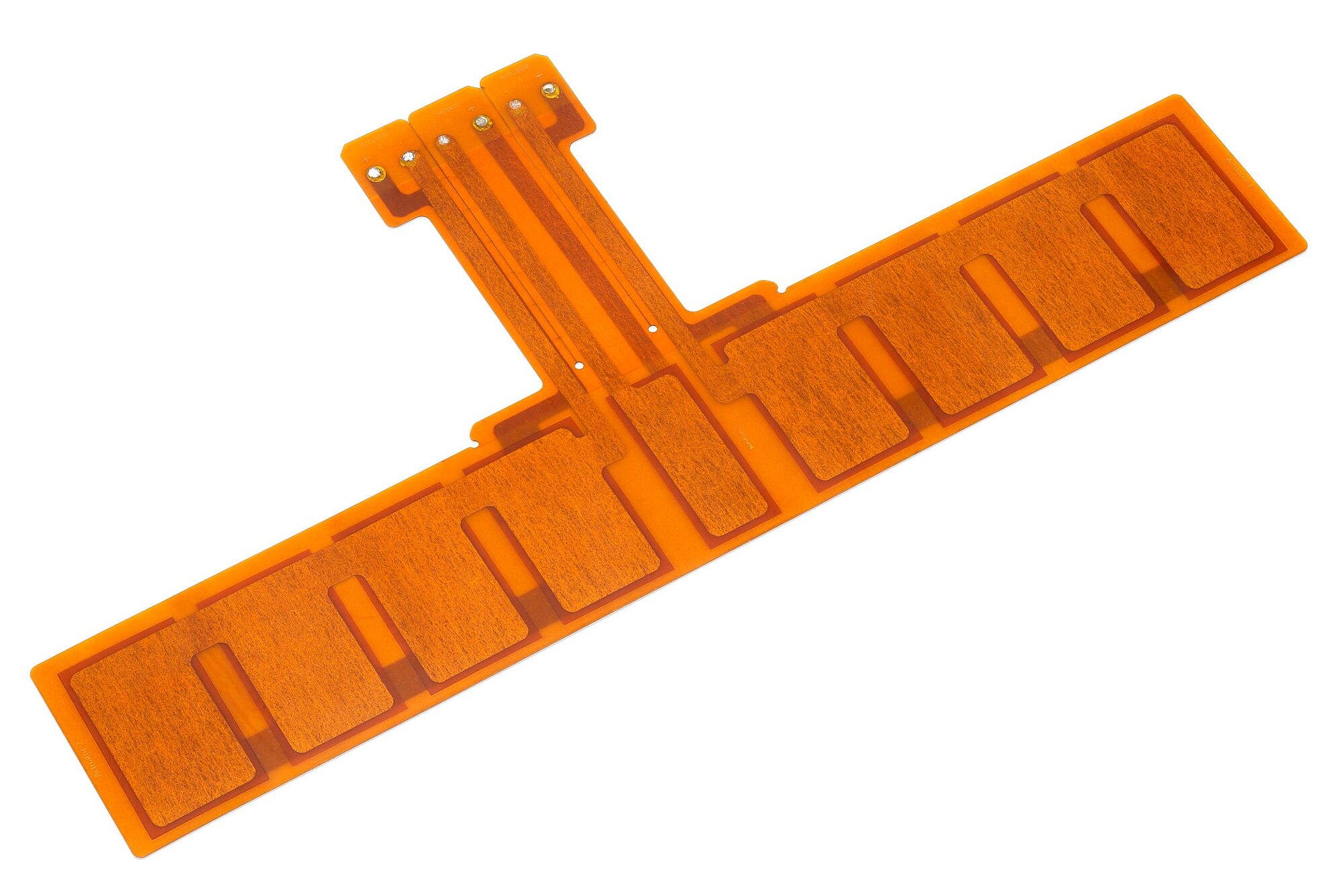

  • Arrays



Fields of application

Industry and research. Can also be applied to curved surfaces or used for integration in structures. For adaptive systems, energy harvesting, structural health monitoring



Valid patents

German patent no. 10051784C1

US patent no. 6,930,439




Operating voltage

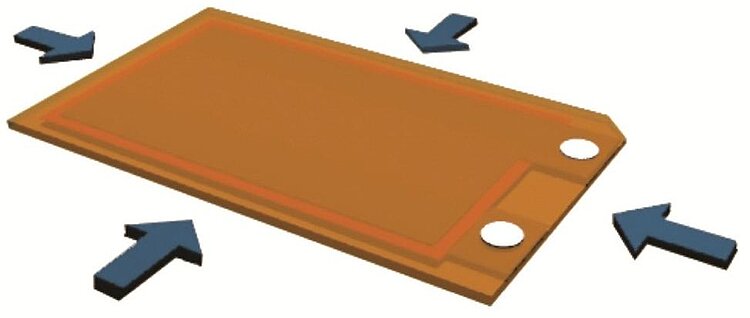

Min. lateral contraction

Rel. lateral contraction

Blocking force

Dimensions

Min. bending radius

Piezoceramic height

Electrical capacitance


V

µm/m

µm/m/V

N


mm

µm

nF

P-876.A11

-50 to 200

400

1.6

90

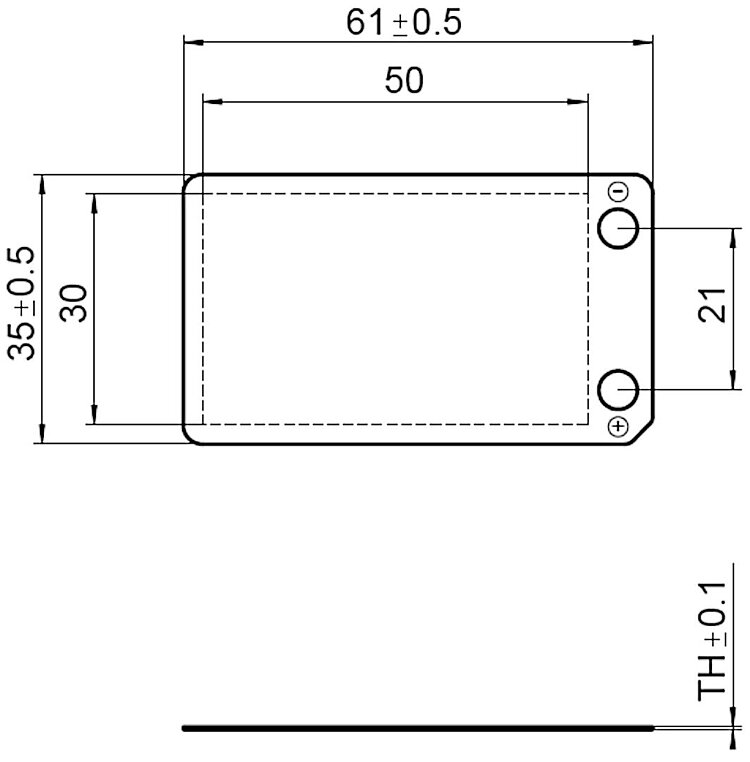

61 mm × 35 mm × 0.4 mm

12

100

150

P-876.A12

-100 to 400

650

1.3

265

61 mm × 35 mm × 0.5 mm

20

200

90

P-876.A15

-250 to 1000

800

0.64

775

61 mm × 35 mm × 0.8 mm

70

500

45

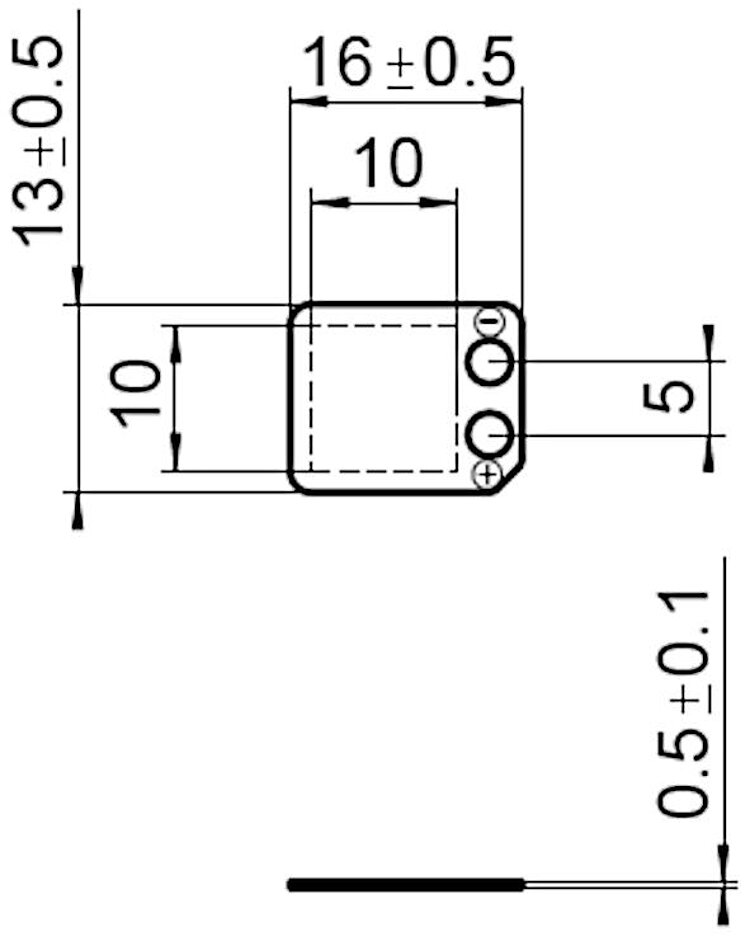

P-876.SP1

-100 to 400

650

1.3

280

16 mm × 13 mm × 0.5 mm

200

8

Piezo ceramic type PIC255

Standard connections: Solder pads

Operating temperature range: -20 to 150 °C

Custom designs or different specifications on request.

Downloads

Datasheet

pdf
pdf

PI Datasheet P-876

DuraAct Patch Transducer Bendable and Robust
pdf - 1 MB
pdf - 1,018 KB

Documentation

pdf
pdf

Whitepaper: Energy Harvesting Uses the Piezo Effect

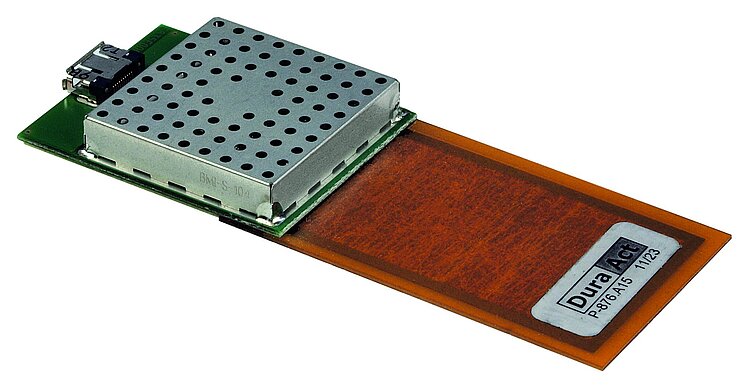

DuraAct Piezo Transducer plus Matching Electronics
