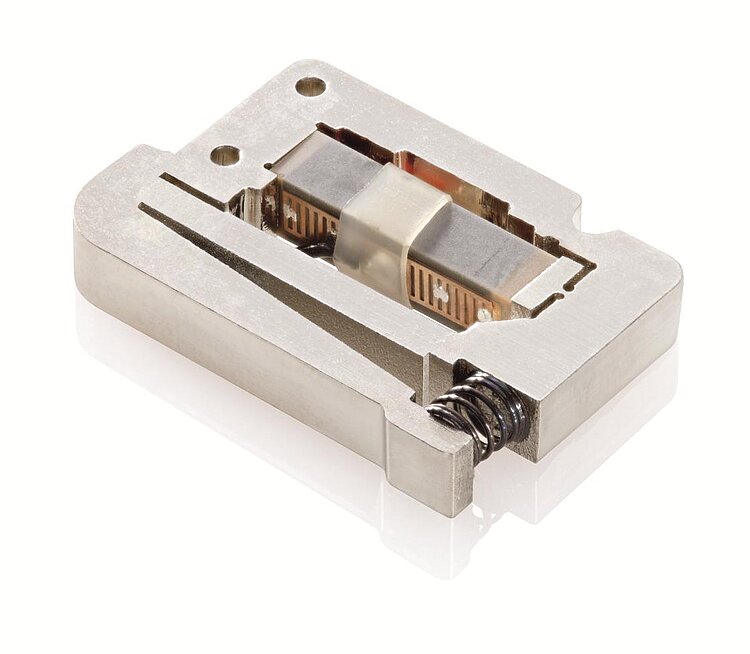

P-604 Compact PiezoMove Linear Actuator

Cost-Efficient, with 300 µm Travel Range

PI P-604
Lightweight and compact: 4 g and <13 mm × 20 mm footprint
Travel range 300 µm
Optimized design for manufacturing in large quantities
Customer-specific adaptations can be provided

Standard-class piezo actuator

Frictionless flexure joints with integrated lever motion amplifiers. Open-loop, without position sensor



PICMA® high-performance piezo drive

Piezoceramic actuators with all-ceramic insulation. Longer lifetime, humidity resistance and operating temperatures to 80 °C



Fields of application

Research and industry. Ideal OEM actuators for precision motion control in optics, medical, biotech and microfluidics applications



Specifications

Datasheet P-604

Version / Date
2015-01-30
Version / Date
2015-01-30
Document language
pdf - 757 KB
pdf - 745 KB

Drawings / Images

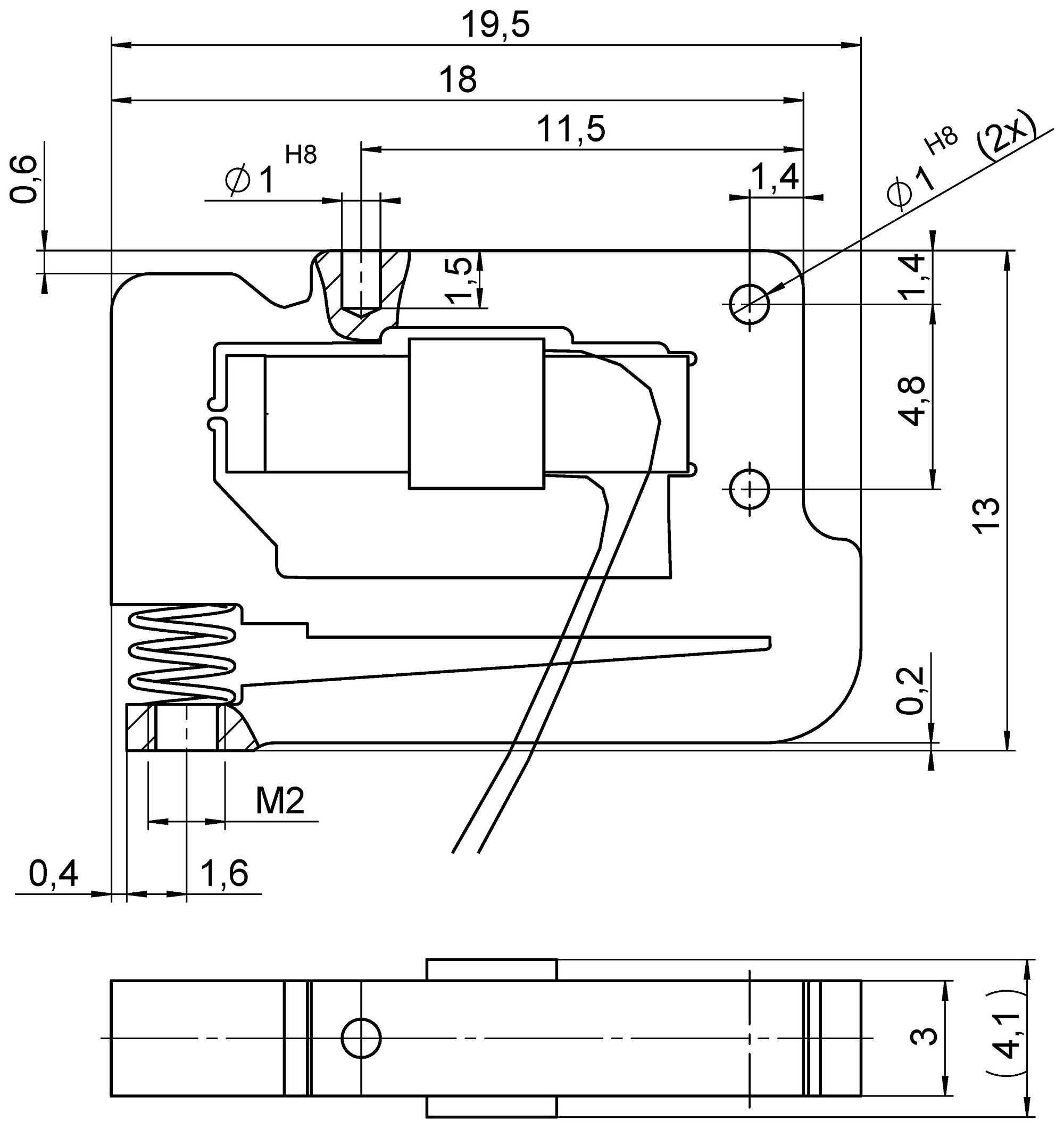

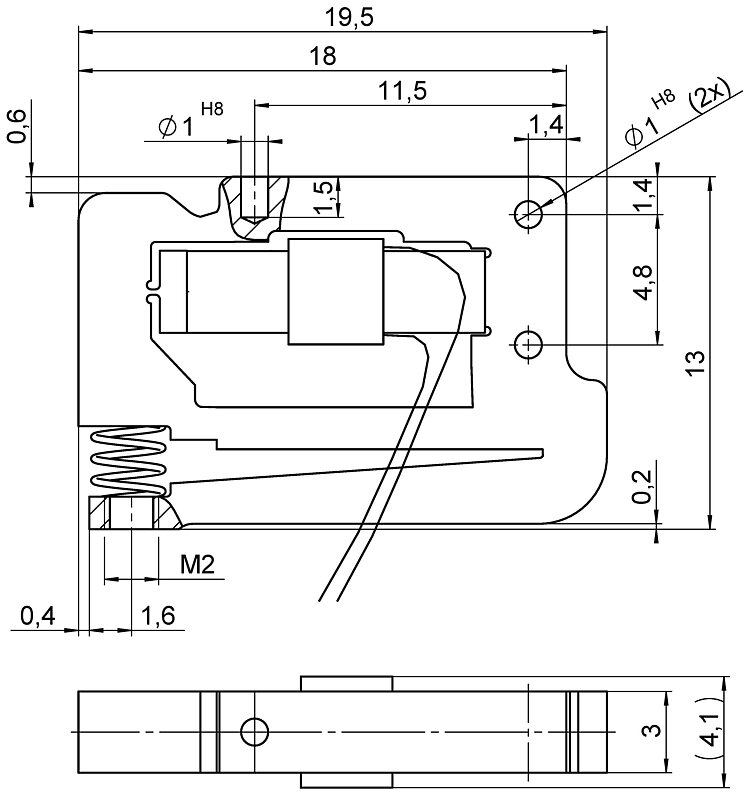

PI P-604 Drawing

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

Ask about custom designs!
