- SearchE-821 Electronic Module for Energy HarvestingProduct Description Specifications Downloads Quote / Order

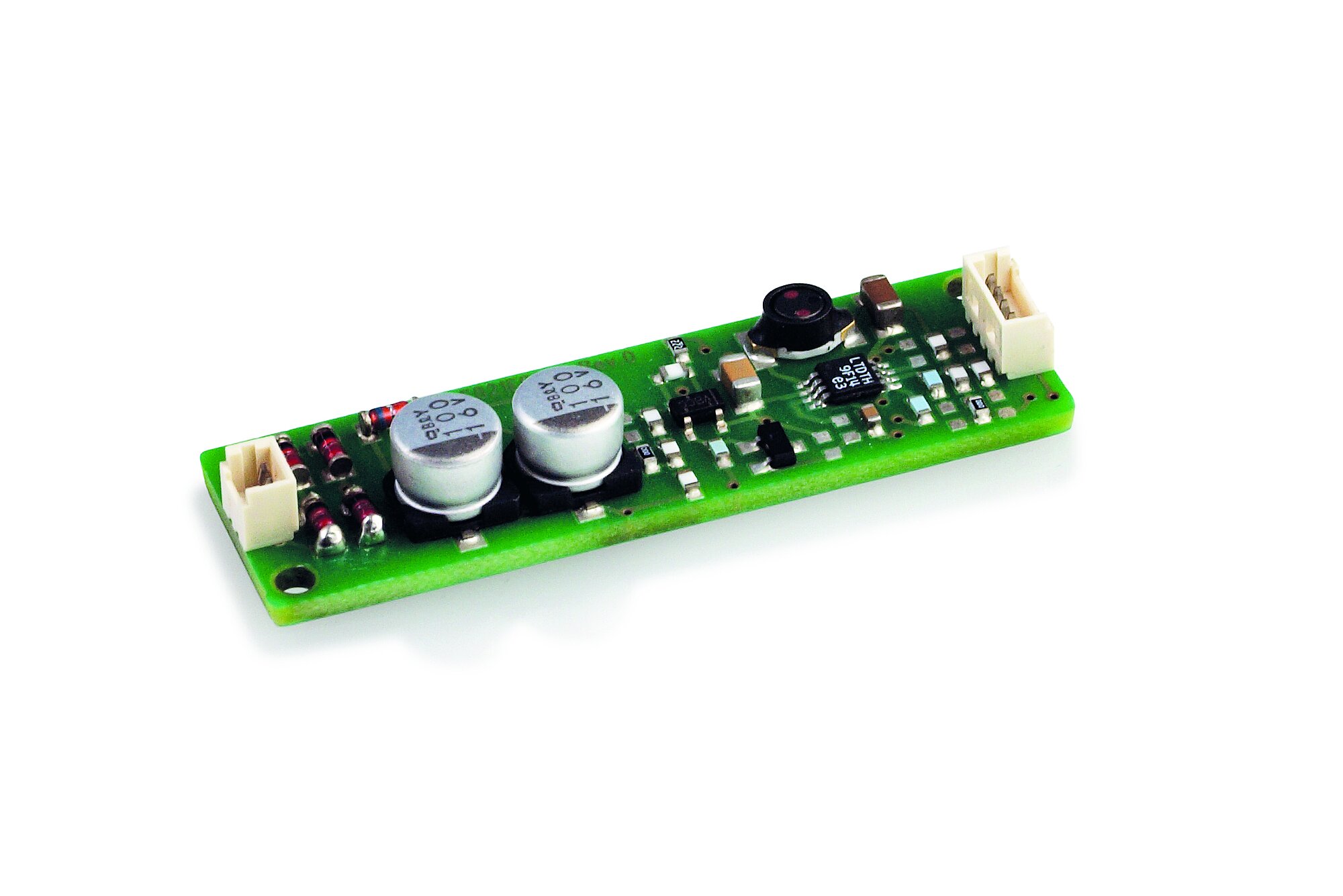

OEM electronic module for energy harvesting

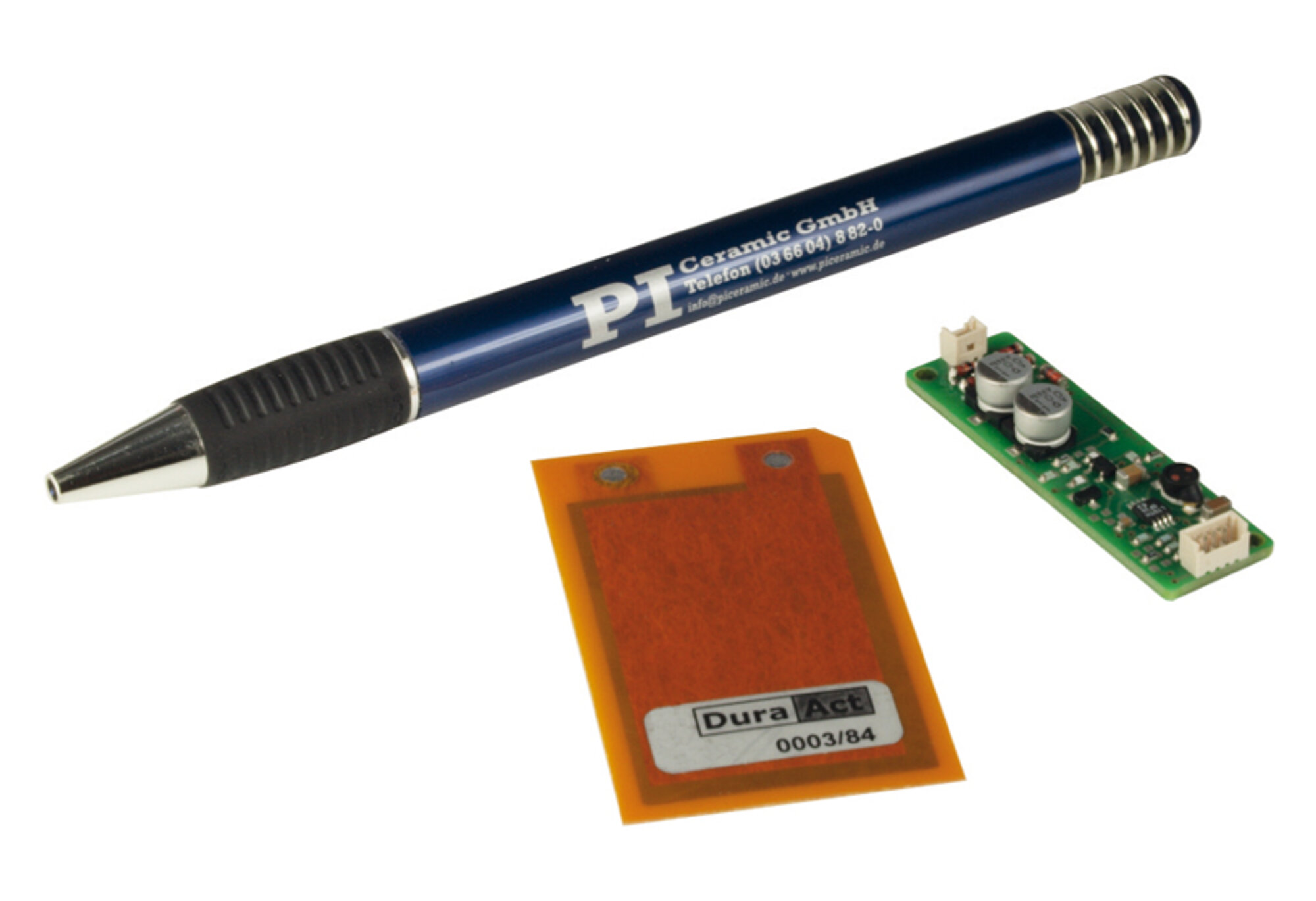

For generating energy from vibration. Use in combination with DuraAct patch transducers. Adjustable output voltage. Processes input currents between 20 µA and 40 mA, voltage peaks are limited to 15 V. Custom version for operation with piezo stack actuators on request
Fields of application
Autonomous power supplies, e.g. for wireless sensor networks
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
Ask about custom designs!
Not authorized for use in the USA and not available in the USA.
