Drivers and Controllers for PICA Stack/Power/Thru Actuators

Piezo amplifiers for >> PICA Actuators offer a voltage range of up to 1100 V, which is available as unipolar or bipolar voltage. Amplifiers with high output current allow dynamic operation of the actuators and precise positioning while requiring low power.

Show more

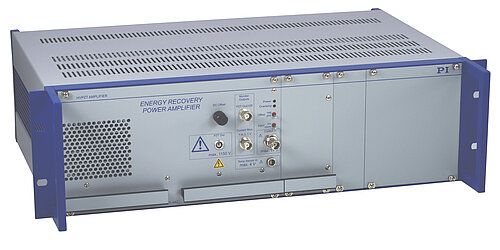

E-482 PICA High-Performance Piezo Amplifier / Servo Controller

High Energy Efficiency due to Energy Recovery

  • Peak current 6 A
  • Output voltage to 1050 V
  • Integrated energy recovery
  • Temperature sensor protects piezo actuator from overheating
  • Position control (optional)
  • Interface / display modules (optional)
Show more

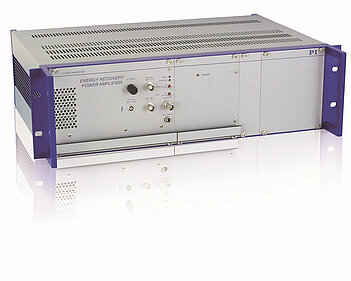

E-481 PICA Piezo High-Power Amplifier/Controller

2000 W and high efficiency due to energy recovery

  • Peak power 2000 W
  • Integrated energy recovery
  • Output voltage 0 to ±1100 V or bipolar
  • Overheat protection for piezo actuators with temperature sensor
  • Position control (optional)
  • Interface / display modules (optional)
Show more

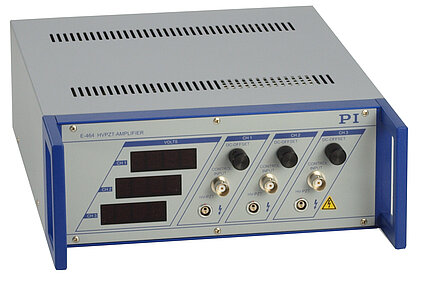

E-464 PICA Piezo Amplifier

For Piezo Systems and Actuators, up to 3 Channels

  • 3 powerful channels
  • Peak power 3 × 25 W
  • Output voltage range 0 to 1100 V
  • 3 LED displays
PI E-462.OE1
Show more

E-462 PICA Piezo Amplifier

Compact Benchtop Device or OEM Module

  • Compact single-channel amplifier for piezos
  • Output voltage range 10 to 1000 V
  • Mains or 12 V battery operation
  • For static or quasistatic operation
Show more

E-508 PICA Piezo Amplifier Module

High-Power Module with 1100 V Voltage Range, for the E-500 Piezo Controller System

  • Peak power up to 400 W
  • Output voltage range 3 to 1100 V, -3 to -1100 V or bipolar
  • Module for E-500 piezo controller rack
  • E-508.OE for switching applications
  • Position control (optional)
  • Interface / display modules (optional)
Show more

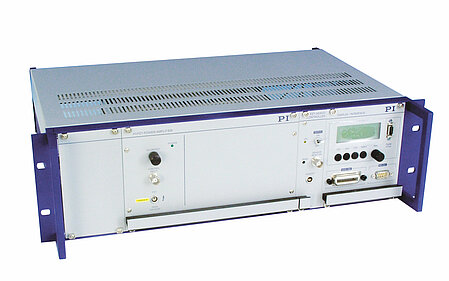

E-470 • E-472 • E-421 PICA Piezo Controller

Modular High-Power Amplifier / Controller

  • Peak power 550 W
  • Output voltage range 3 to 1100 V or bipolar
  • Position control (optional)
  • Computer interface and display modules
