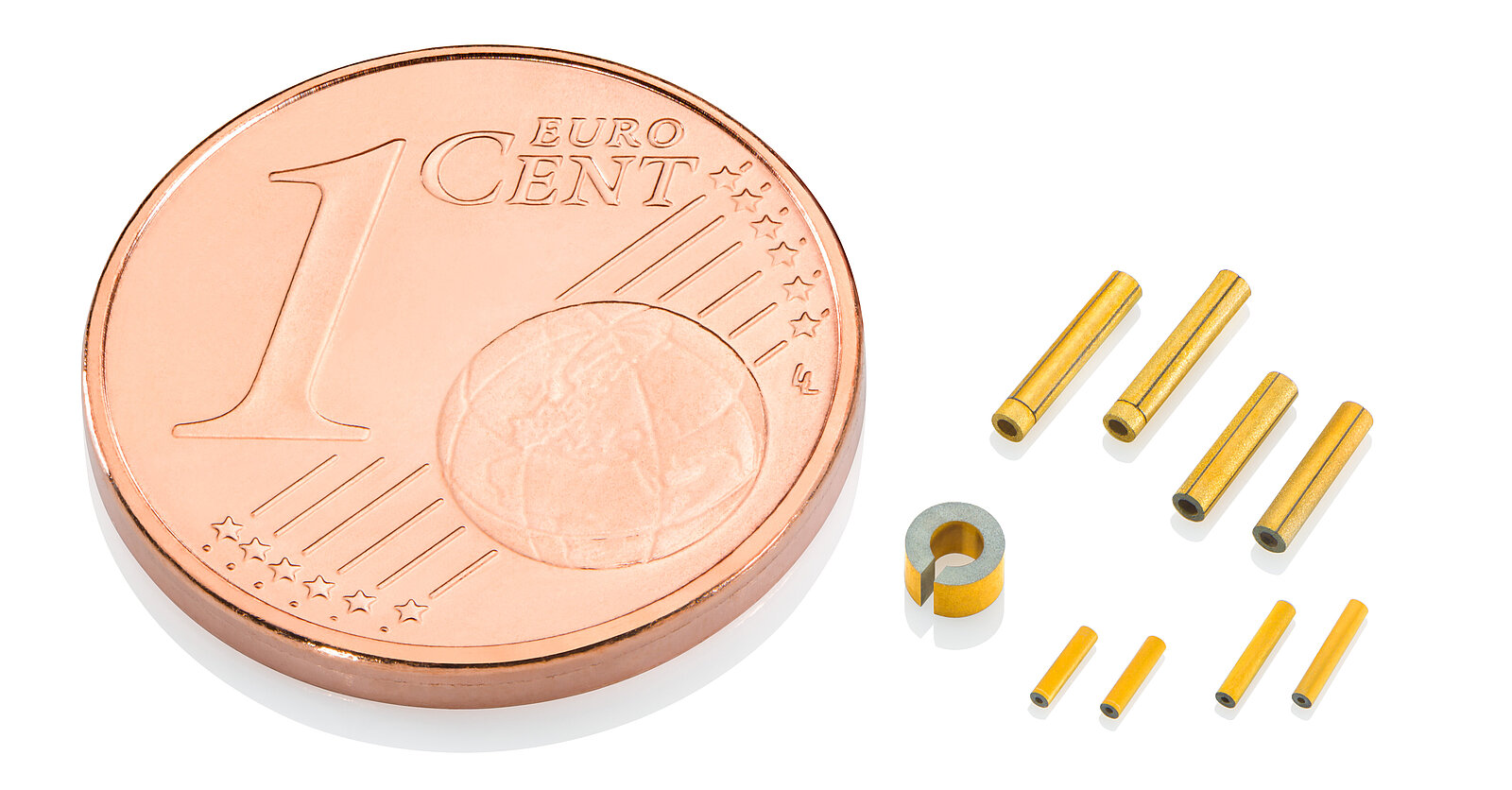

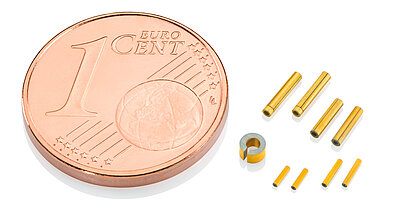

Miniaturized Tubes

Customized Versions on Request

  • Variety of electrode designs, e.g. wraparound contact, segmenting, laser structuring
  • Thickness-dependent frequency adjustment
  • Contacting, e.g. with enameled wire

Specifications

Piezoceramic Mini Tubes
MaterialPIC151, PIC255, PIC181
OD [mm]> 0.45
ID [mm]> 0.2
L [mm]Max. 4 (OD < 1)
Max. 30 (ID < 1)
Electrode materialsThick film inside: Ag
Thin film outside: Ag from TH 0.2 mm or PVD thin film: CuNi, Au

OD   Outer diameter
ID     Inner diameter
L      Length
P      Polarization direction
