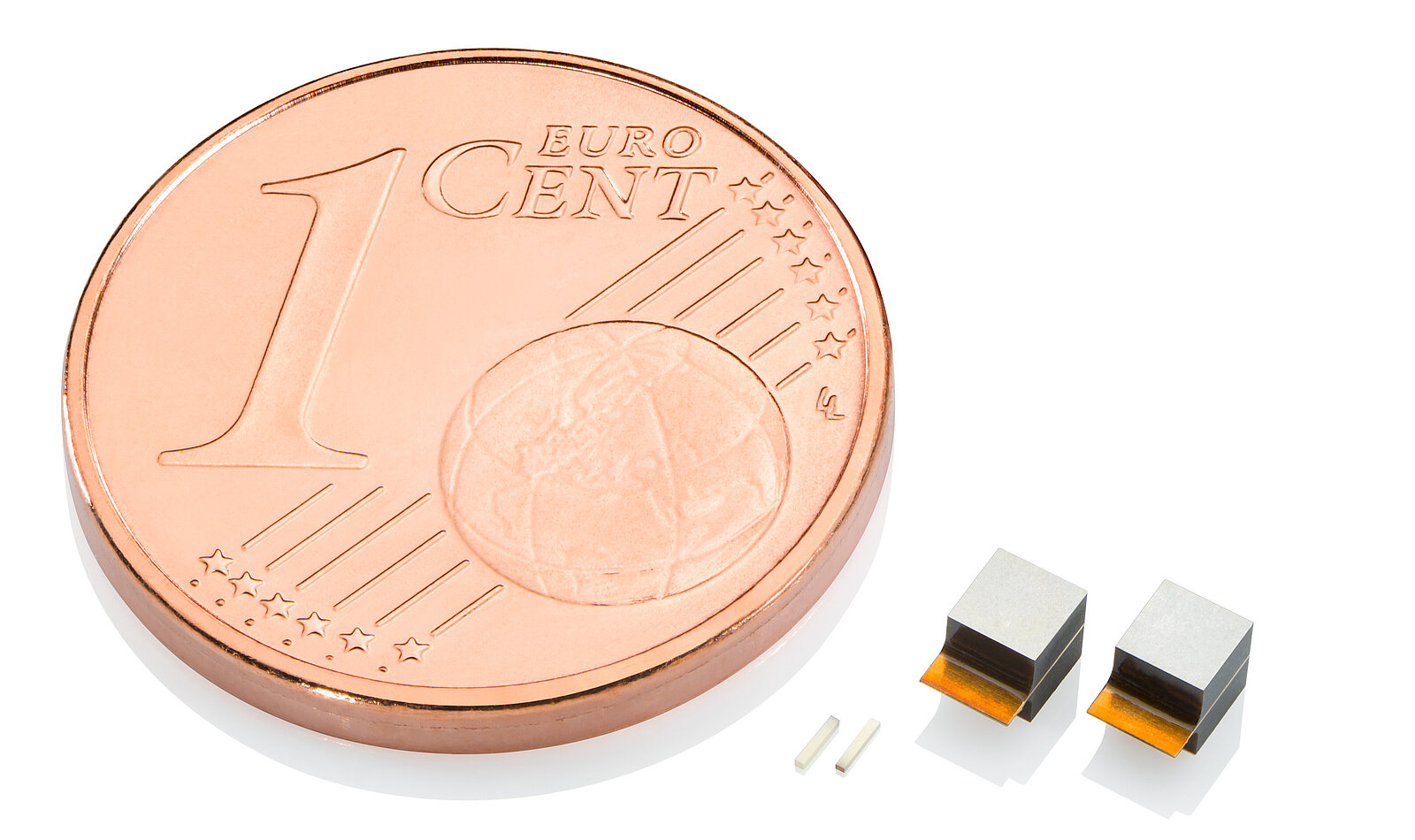

Miniaturized Plates

Applications

Customized Versions on Request

  • Shape variations, such as wraparound contact, phases, special shapes
  • Variety of electrode designs, e.g. laser structuring
  • Thickness-dependent frequency adjustment
  • Contacting by soldered strands or wires

Specifications

Piezoceramic Mini Plates
MaterialPIC151, PIC255, PIC181, PIC252
L [mm]> 1
W [mm]> 1
TH [mm]> 0.1 (20 µm tolerance is possible)
Electrode materialsThick layer: Ag (from 0.2 mm TH)
PVD thin layer: CuNi, Au, etc.

L       Length
W      Width
TH     Thickness
P       Polarization direction
