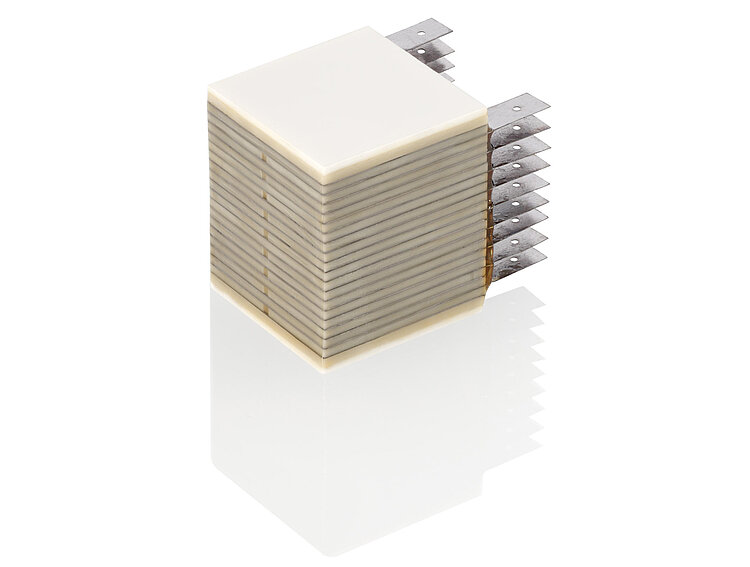

P-1x1.0xT PICA Shear Actuators

Compact Actuators for Cryogenic and UHV Environments

PI P-121.03T
UHV-compatible to 10-9 hPa
For cryogenic environments
Extreme reliability: >109 cycles
Picometer resolution
Microsecond response

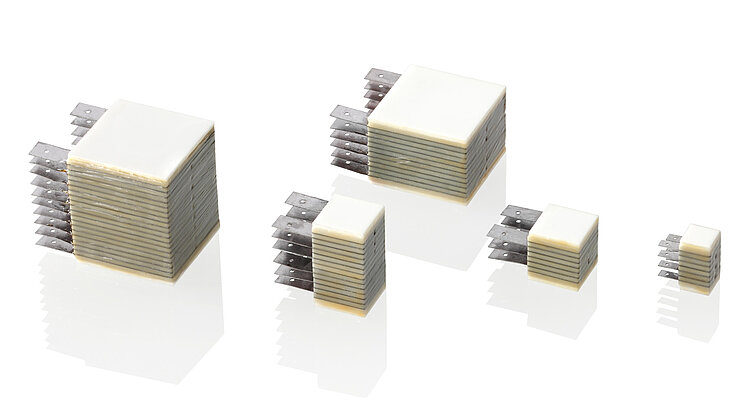

Piezo shear actuators

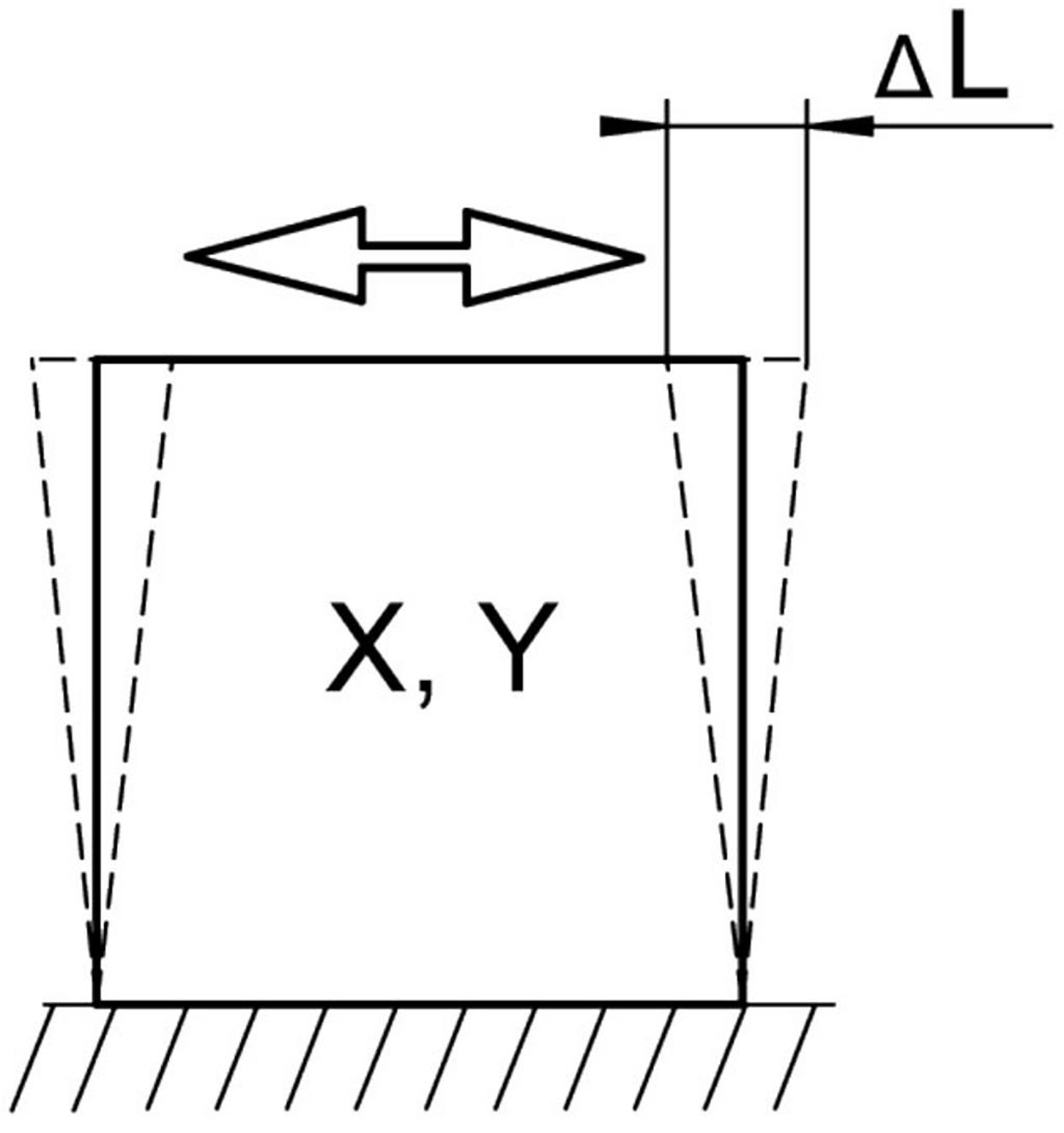

Operating voltage -250 to 250 V. Suitable for use in cryogenic and UHV environments to 10-9 hPa. Lateral motion is based on the piezoelectric shear effect. Excellent dynamics with minimum electric power requirement.

Variants for multi-axis motion, also with inner hole





Available options

  • PZT ceramic material
  • Non-magnetic versions
  • Operating voltage range, displacement, layer thickness, cross-sectional dimension
  • Load capacity, force generation
  • Mechanical interfaces: flat, spherical, metal, ceramic, glass, sapphire, etc.
  • Extra-tight length tolerances



Fields of application

Industry and research, low temperature / vacuum environment up to 10-9 hPa. . For scanning applications, microscopy, precision mechanics, switching applications







Specifications

Datasheet P-1x1.0xT

Version / Date
2016-04-04
Version / Date
2016-04-04
Document language
pdf - 946 KB
pdf - 936 KB

Drawings / Images

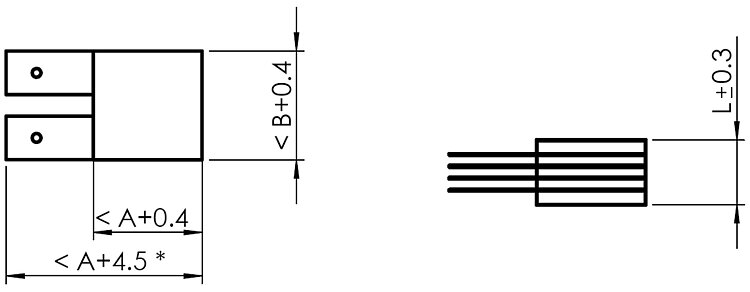

PI P-1x1.0xT Drawing
PI PICA Shear Axis Cabling

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

Custom designs or different specifications on request.
