E-506 Piezo Charge amplifier

Highly Linear, 30 W Continuous Power, 1 Channel

  • Highly linear amplifier module
  • For dynamic applications
  • Output voltage range -30 to 130 V
  • Peak current 2 A, continuous current 215 mA
E-506 Piezo Charge amplifier
Product Description Specifications Downloads Quote / Order

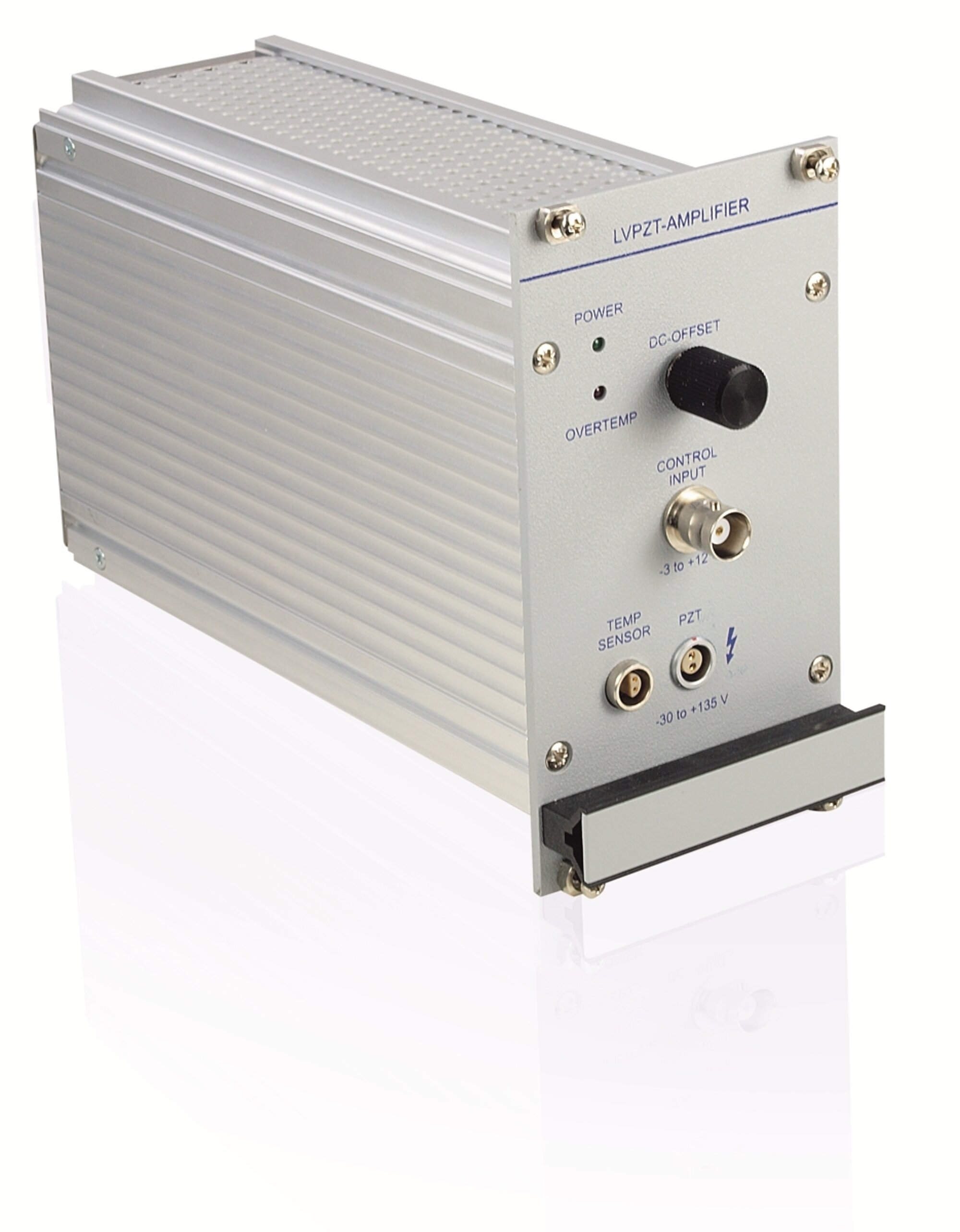

Low noise 1-channel piezo amplifier module

Plug-in module for E-500 system, up to three channels in the 19'' rack. Evaluation of temperature sensor protects the piezo actuator against overheating. Recommended for electrical capacitances greater than 0.3 µF.

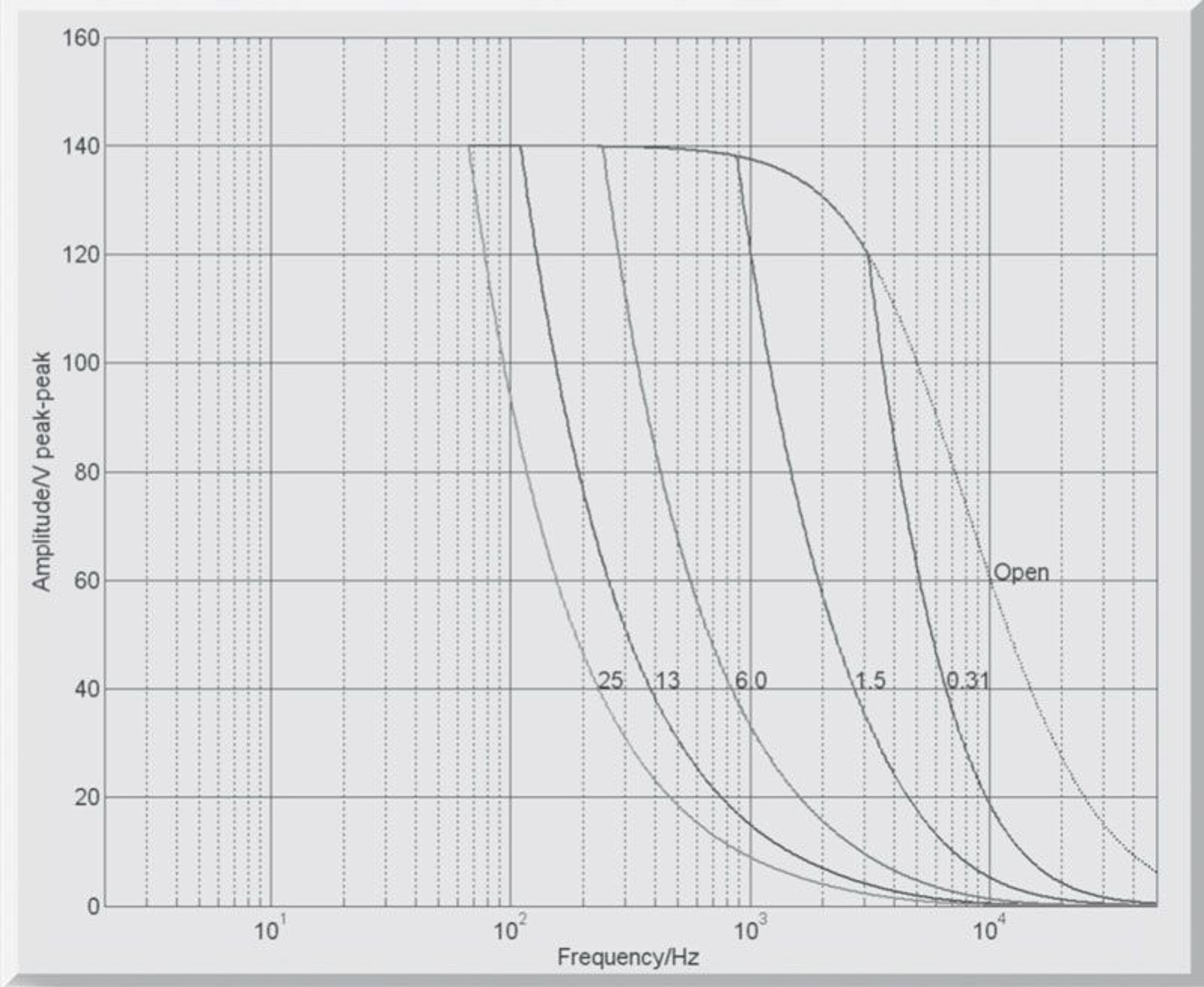

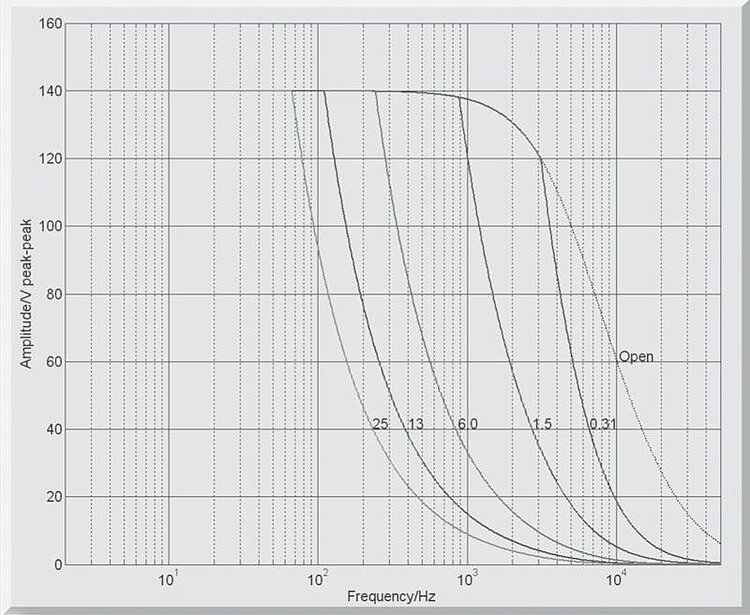

Charge control for high linearity

The amplifier controls the amount of charge being transmitted to the piezo actuator. The piezo displacement hysteresis is therefore reduced to 2% of the travel range compared to 10 to 15% in voltage-controlled operation. This allows linear open-loop operation with fast response times and very high resolution at maximum bandwidth. The amplifier switches internally to voltage control when holding a position.

Fields of application

Active vibration absorber, adaptive systems technology, fast mechanical switches, valve control



Specifications

Datasheet

Datasheet E-506

Version / Date
2018-02-13
pdf - 226 KB
Version / Date
2018-02-13
pdf - 228 KB
Version / Date
2018-03-29
pdf - 663 KB

Downloads

Datasheet

Datasheet

Datasheet E-506

Version / Date
2018-02-13
pdf - 226 KB
Version / Date
2018-02-13
pdf - 228 KB
Version / Date
2018-03-29
pdf - 663 KB

Documentation

Documentation

Short Instruction PZ300

Housed Analog Piezo Electronics E-4xx, E-5xx, E-6xx, E-8xx

Version / Date
1.1.0 04/2021
pdf - 1 MB
Version / Date
1.1.0 04/2021
pdf - 1 MB
Documentation

User Manual PZ62

E-500 / E-501 Series Modular Piezo Controller: Chassis with power supply, amplifier modules (E-503, E-504, E-505, E-506, E-508), sensor and servo-control module (E-509), display and interface modules (E-515, E-517).

Version / Date
2013-07-11
pdf - 2 MB
English
Documentation

User Manual E506T0002

E-506 Charge-Controlled Amplifier Module

Version / Date
2012-07-05
pdf - 469 KB
English
